Ubiquiti ACB-ISP | WiFi Router | airCube, 2,4GHz, MIMO, 4x RJ45 100Mb/s
![](https://www.batna24.com/img2/1000/298859_1.webp?20989284238)
EN
Ubiquiti Network Management Software simplifies remote network management.
Innovative Super Antenna provides coverage of a large area beyond the usual Wi-Fi access points.
The airCube can be powered and supplies power to airMAX CPE using 24 V PoE.
Use the intuitive UNMS application for iOS and Android to configure the airCube device
The attractive appearance of the airCube means that it can be placed anywhere in the room, improving Wi-Fi performance.
Features / filters | |
Wireless network standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, |
2.4 GHz | Yes |
5 GHz | No |
Antenna gain level (max) | 4 |
Certification | CE,. FCC, IC |
Depth | 89.2 |
Ethernet LAN (RJ-45) ports | 4 |
Ethernet LAN data rates | 10,100 |
Harmonized System (HS) code | 85176990 |
Height | 89.5 |
Housing material | Plastic |
Internal | No |
LED indicators | Status |
Maximum data transfer rate | 300 |
Networking standards | IEEE 802.11n |
Operating relative humidity (H-H) | 5 - 95 |
Operating temperature (T-T) | -10 - 50 |
Placement | Floor, Table |
Power consumption (max) | 5 |
Power over Ethernet (PoE) | Yes |
Product colour | Black |
USB 2.0 ports quantity | 1 |
USB connector type | Micro-USB |
Weight | 215 |
Width | 87.8 |
Basic technical parameters | |
Dimensions | 87,80 × 89,50 × 89,25 mm |
Weight | 280 g |
Management interface | Wi-Fi / Ethernet |
Network interface | 10/100 Fast Ethernet |
LED | Status |
Antenna reinforcement | 4 dBi |
Maximum speed | 300 Mb/s |
Maximum power consumption | 5W |
Maximum Power TX | 20 dBm |
Power supply | 5 V |

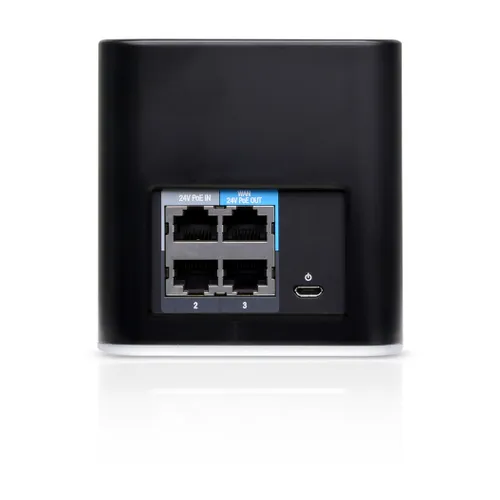

Power supply | Micro-USB adapter (not included) or PoE 24 V input on port 1 LAN |
PoE output | Controlled 24 V poe output (+4, 5; -7, 8) on WAN port |
Supported supply voltage | 4,95-5,05 V |
Operating temperature | -10 to 50° C |
Working humidity | 5 to 95% |
ESD/EMP protection | ± 24 kV RJ45 interface |
Certificates | CE, FCC, IC |
1. Podłącz jeden koniec kabla Ethernet do portu WAN z tyłu airCube. Podłącz drugi koniec kabla Ethernet do urządzenia radiowego airMAX CPE.
2. Urządzenie airCube może być zasilane na dwa sposoby adapterem 5 V Micro USB lub 24 V PoE na porcie LAN 1.
- Jeśli do zasilania airCube używany jest zasilacz Micro-USB (niedołączony do zestawu), podłącz zasilacz do portu zasilania z tyłu airCube, a drugi koniec zasilacza do gniazdka.
- Jeśli do zasilania airCube jest używane PoE, podłącz jeden koniec kabla Ethernet do portu LAN 1, a drugi koniec kabla do portu 24V PoE Out na adapterze PoE.
3. Dioda LED w airCube zaświeci się, gdy tylko urządzenie zostanie włączone.
Operating frequency: 2.4 GHz
Power type: Passive PoE, Power Supply,
