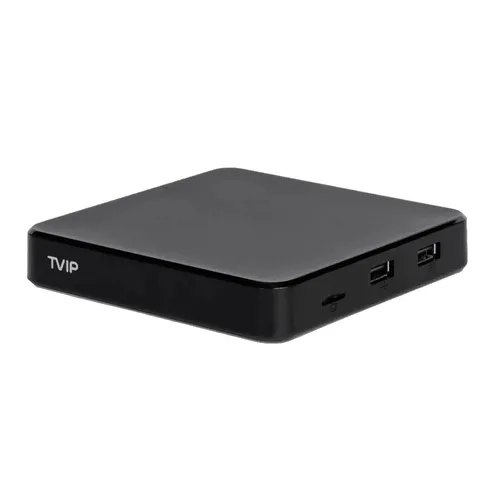

TVIP S-Box v.605 SE | TV Box | 4K, WIFI, HDMI
![](https://www.batna24.com/img2/1000/328510_166876.webp?20989284238)
EN
The wide range of TVIP S-Box models allows you to choose a media center that better meets your requirements. TVIP Mediacenters are versatile and we can provide exactly what you need. The IPTV decoder, running on a powerful quad-core Amlogic S905X 1.5 GHz processor. It has a five-core Mali-450 graphics chip, 1 GB RAM and 8 GB Flash. It supports Ultra HD 4K 3840x2160 (HDR) resolution and H.265(10 bit)/HEVC, VP9, H.264, MPEG4 ASP, MPEG2, MJPEG (2160p 60fps), Xvid codecs. Operating system Linux/Android 8.0 Oreo. The decoder is equipped with HDMI 2.0, AV, Ethernet, microSD card port and 2 USB ports. It supports WiFi 802.11 (b/g/n/ac) 2.4/5 GHz and Bluetooth.
TVIPpaediatricians always use modern SoC with a powerful multi-core processor that allows you to enjoy all the modern multimedia applications that were not only created today, but will be developed in the next few years. Amlogic S905 makes STB much more powerful and enables 4K video playback with HDR technology.
All TVIP S-Box support USB-host connection. You can connect flash drives, hard drives, keyboards and wireless remote controls. Video or music directly from an external hard drive or flash card will be a great addition to your service. TVIP S-BOX supports AVI, MKV, MP4 and many other media formats. It also supports multi-channel audio and subtitles.
Configuration is quick and easy. The remote control supports learning to control the TV. The learning configuration does not reset after battery replacement.
Create channel packages for different devices: tablets, TVs and phones.
Features / filters | |
Device type | TV set |
Basic technical parameters | |
product code: | TVIP S-Box v.605 |
Chipset | Amlogic S905X 1.5 GHz quad-core processor |
Video resolution | 3840 x 2160 (HDR) |
3D graphics | OpenGL ES 2.0 (five-core Mali-450) |
Memory | FRAMEWORK 1 Gb, Flash 8 Gb |
Interfaces | HDMI, AV, Ethernet, 2xUSB, MicroSD card, ext.IR, WiFi 802.11 (b / g / n / ac) 2.4 / 5 GHz, Bluetooth |
Operating system | Linux or Android 8.0 (Oreo) |
Supported middleware | TVIP TMS, IPTVPORTAL, Open JSON API, Stalker, Microimpuls, Smotreshka, HTML5 / JS portals |
Remote management | TR-069 or TVIP XML |
Supported extensions | MPEG-TS, MPEG-PS, MP4, MKV, AVI, MOV, FLV, OGG |
Protocols | UDP, RTP, HTTP, HLS, MPEG-DASH, RTSP, SMB, NFS, DLNA |
CAS / DRM | TVIP, IPTVPORTAL, BISS, Widevine L3, optional: PlayReady, Verimatrix 3.x, Widevine L1 |
Video codecs | H.265 (10-bit), VP9, H.264, MPEG4 ASP, Xvid, MPEG2, MJPEG 2160p 60fps |
Audio codecs | MPEG MP3 MPA, AAC, WMA, OGG, WAV, FLAC, APE |
Subtitles on a foreign language film | DVBSUB, VOBSUB, teletext, SSA / ASS, SubRip, MOV_TEXT, WebVTT |
Pictures | JPEG, PNG |
Brochure (ENG) | Download |
