TP-Link TL-WN823N | WiFi USB Adapter | N300, 2,4GHz
![](https://www.batna24.com/img2/1000/56699_1.webp?20989284238)
EN

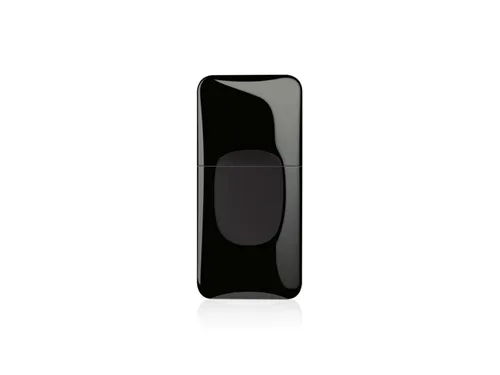

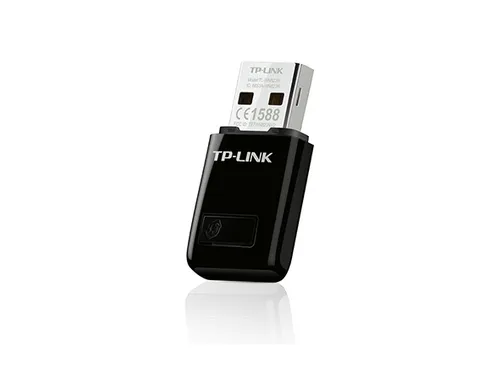

The TL-WN8233N is a pocket-sized USB network adapter that will provide your laptop or desktop with the highest quality wireless connections. The wireless adapter supports SoftAP mode for secure connection, you can enable it with one button. Configuration of SoftAP is quick and easy. The device is a great solution to enjoy fast connections to the wireless network.
With advanced MIMO technology and connections reaching 300 Mb/s, the adapter provides fast, lag-free wireless connections suitable for online gaming or video streaming. When connecting to N devices, it achieves high performance, but there is also no problem with devices that support IEEE 802.11b/g standards.
Pressing WPS guarantees a secure, encrypted WPA2 connection. WPS significantly speeds up the process of first configuration with the wireless router, thanks to this solution we don't have to remember the network access password either.
Thanks to the clear and intuitive software interface on the CD that comes with the product, setup is quick and easy, even for novice users.
Features / filters | |
Wireless network standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, |
Certification | CE, FCC, IC, RoHS |
Compatible operating systems | Windows XP (32/64-bit) Windows Vista (32/64-bit) Windows 7 (32/64-bit) |
Component for | PC/notebook |
Connectivity technology | Wireless |
Depth | 18.3 |
Frequency range | 2.4 - 2.4835 |
Height | 7.9 |
Host interface | USB |
Interface | WLAN |
Internal | No |
LED indicators | Status |
Manual | Yes |
Maximum data transfer rate | 300 |
Modulation | 16-QAM,64-QAM,CCK,DBPSK,DQPSK,OFDM |
Networking standards | IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
Operating relative humidity (H-H) | 10 - 90 |
Operating temperature (T-T) | 0 - 40 |
Package depth | 128 |
Package height | 30 |
Package weight | 80 |
Package width | 138 |
Product colour | Black |
Quick start guide | Yes |
Receiver sensitivity | 300M: -65dBm@10% PER 270M: -65dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -72dBm@10% PER 11M: -85dBm@8% PER 6M: -87dBm@10% PER 1M:-93dBm@8% PER |
Security algorithms | 128-bit WEP,64-bit WEP,WPA,WPA-PSK,WPA2,WPA2-PSK |
Storage relative humidity (H-H) | 5 - 90 |
Storage temperature (T-T) | -40 - 70 |
Supported data transfer rates | 11, 54, 300 Mbps |
Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
USB powered | Yes |
Wake-on-LAN ready | Yes |
Wi-Fi | Yes |
Wi-Fi band | Single-band (2.4 GHz) |
Wi-Fi standards | 802.11b,802.11g,Wi-Fi 4 (802.11n) |
Width | 39 |
Windows operating systems supported | Yes |
WLAN data transfer rates supported | 11,54,300 |
Equipment features | |
Ports | USB 2.0 |
Buttons | WPS button (Wi-Fi Protected Setup) |
Dimensions (S x G x W) | 39 x 18.35 x 7.87 mm (1.54 x 0.72 x 0.31 inch) |
Antenna type | Internal |
Wireless transmission characteristics | |
Wireless standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Frequency of operation | 2,400~2,4835 GHz |
Transmission speed | 11b: up to 11 Mb/s (dynamic) 11g: up to 54 Mb/s (dynamic) 11n: up to 300 Mb/s (dynamic) |
Receiver sensitivity | 300 M: -65 dBm@10% PER 270 M: -65 dBm@10% PER 130 M: -68 dBm@10% PER 108 M: -68 dBm@10% PER 54 M: -72 dBm@10% PER 11 M: -85 dBm@8% PER 6 M: -87 dBm@10% PER 1 M:-93 dBm@8% PER |
EIRP | < 20 dBm (EIRP) |
Wireless modes of operation | Soft AP mode Client mode (support of connections in ad-hoc/ infrastructure modes) |
Wireless transmission security | 64/128 bit WEP, WPA /WPA2/WPA-PSK/WPA2-PSK |
Modulation | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM |
Other | |
Certificates | CE, FCC, IC, RoHS |
Package contents | TL-WN823N Wireless Network Card CD Quick Installation Guide |
System requirements | Windows 8.1 (32/64-bit) Windows 8 (32/64-bit) Windows 10 (32/64-bit) Windows 7 (32/64-bit) Windows XP (32/64-bit) Mac OS X 10.6-10.11, Linux (kernel 2.6.24 ~ < 4.9.60; 2.6.18 ~ 3.10.10) |
Working environment | Operating temperature: 0℃~40℃ (32℉~104℉) Storage temperature: -40℃~70℃ (-40℉~158℉) Operating air humidity: 10%~90%, non-condensing Storage humidity: 5%~90%, non-condensing |
