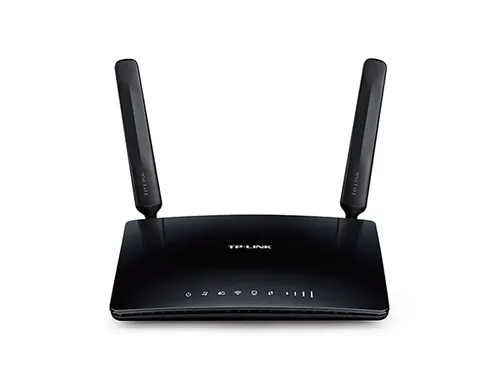

TP-Link TL-MR6400 | LTE Router | 2,4GHz, 300Mb/s, 4x RJ45 100Mb/s, 1x SIM

TP-Link TL-MR6400 is an LTE wireless router. The N standard makes the device able to reach download speeds up to 150 Mb/s, so you can take full advantage of your 4G LTE connection. Now you can enjoy downloading files, watching movies and video chatting smoothly, without any obstacles.
The MR6400 wireless router allows you to transfer data at speeds up to 300 Mb/s, so the device will meet the needs of even more demanding users who use the network to stream HD video, online games, or download large files. Thanks to the use of external antennas, the MR6400 router allows to obtain a stable network even over longer distances.
With the integrated 4G LTE modem and SIM slot, just insert the SIM card and turn on the device, and the router will automatically connect to the operator's network and provide this connection to your home wireless network. The device is fully compatible with FDD-LTE and TDD-LTE connections offered by most service providers worldwide.
The TL-MR6400 provides a wireless connection for up to 32 devices such as tablets, smartphones and laptops. The LAN ports can be used to connect desktop devices such as computers.
Configure your router in a few minutes using the intuitive browser interface or using the Tether application. The Tether application allows you to easily manage your network using mobile devices with iOS or Android.
Features / filters | |
Communication type | 4G/LTE |
LTE category | Cat.4 (150Mb/s Download, 50Mb/s Upload) |
Maximum wireless transmission speed | 300 Mb/s |
Number of LAN ports | 3x 10/100BaseTX (RJ45) |
Operating frequency | 2.4 GHz |
Wireless network standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, |
2G standards | Edge, GPRS, GSM |
3G | Yes |
3G standards | HSPA+,UMTS |
3G/4G USB modem compatibility | No |
4G | Yes |
4G bands supported | 800,900,1800,1900 |
4G standard | LTE |
AC adapter included | Yes |
Access Control List (ACL) | Yes |
Antenna gain | Under 10dbi |
Antenna type | Internal & external |
Antennas quantity | 4 |
Bandwidth (first) | 2.4 |
Cables included | LAN (RJ-45) |
Cabling technology | 10/100Base-T(X) |
Certification | CE, FCC, RoHS |
DC-in jack | Yes |
Depth | 124.5 |
Detachable antenna(s) | Yes |
DHCP client | Yes |
DHCP server | Yes |
DMZ support | Yes |
DoS attack prevention | Yes |
Dynamic DNS (DDNS) | Yes |
Ethernet LAN | Yes |
Ethernet LAN (RJ-45) ports | 4 |
Ethernet LAN data rates | 10,100 |
Ethernet LAN interface type | Fast Ethernet |
Ethernet WAN | Yes |
Filtering | Yes |
Firewall | Yes |
Frequency band | 2.4 |
GSM bands supported | 850,900,1800,1900 |
Guest access | Yes |
Harmonized System (HS) code | 85176990 |
Height | 33.5 |
Indication light | Yes |
IP address filtering | Yes |
LED indicators | Yes |
Linux operating systems supported | Yes |
LTE bands | B1 (2100MHz), B3 (1800MHz), B7 (2600MHz), B8 (900MHz), B20 (800MHz), B28 (700MHz), |
MAC address filtering | Yes |
Mac operating systems supported | macOS |
Memory card slot(s) | No |
Mobile network connection | Yes |
Mobile network generation | 4G |
Networking standards | IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3u |
On/off switch | Yes |
Operating relative humidity (H-H) | 10 - 90 |
Operating temperature (T-T) | 0 - 40 |
Output current | 1 |
Output voltage | 12 |
Package depth | 223 |
Package height | 70 |
Package weight | 600 |
Package width | 307 |
Port forwarding | Yes |
Port triggering | Yes |
Power source type | DC |
Product colour | Black |
Product type | Tabletop router |
Quality of Service (QoS) support | Yes |
Quick start guide | Yes |
Rack mounting | Yes |
Reset button | No |
Security algorithms | 64-bit WEP,128-bit WEP,WPA,WPA-PSK,WPA2,WPA2-PSK |
SIM card slot | Yes |
Stateful Packet Inspection (SPI) | Yes |
Storage relative humidity (H-H) | 5 - 90 |
Storage temperature (T-T) | -40 - 70 |
Supported network protocols | IPv4, IPv6 |
Supported WAN type | RJ-45 SIM |
Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
Type of device power supply | Power supply |
UMTS bands supported | 900,2100 |
Universal Plug and Play (UPnP) | Yes |
URL filtering | Yes |
USB port | No |
VPN Passthrough | Yes |
VPN support | PPTP, L2TP, IPSec |
WAN connection type | RJ-45 |
Web-based management | Yes |
Wi-Fi band | Single-band (2.4 GHz) |
Wi-Fi standards | 802.11b,802.11g,Wi-Fi 4 (802.11n) |
Width | 174 |
Windows operating systems supported | Windows 10,Windows 7,Windows 8,Windows 8.1,Windows 98SE,Windows NT,Windows Vista,Windows XP |
WLAN data transfer rate (max) | 300 |
Equipment features | |
Ports | 3 LAN ports 10/100 Mbps, 1 LAN/WAN port 10/100 Mbps, 1 SIM card slot |
Buttons | Wireless Switch Switch WPS/Reset |
Power supply | 9 V/0,85 A |
External Power Supply (EU) | 9 V/0.85 A |
External Power Supply (APAC) | 12 V/1 A |
Dimensions (S x G x W) | 202 x 145 x 34 mm |
Antenna type | 2 internal 4G LTE antennas 2 external antennas for wireless network |
Wireless transmission characteristics | |
Wireless standards | IEEE 802.11b/g/n 2.4 GHz |
Frequency of operation | 2.4 GHz |
Transmission speed | 300 Mbps on 2.4 GHz |
Receiver sensitivity | 11g 54M: -74 dBm 11n HT20: -71 dBm 11n HT40: -67 dBm |
EIRP | CE: < 20 dBm (2.4 GHz) |
Wireless transmission functions | Wireless transmission switch, WDS, WMM, wireless transmission statistics |
Wireless transmission security | WEP 64/128-bit encryption, WPA/WPA2, WPA-PSK/WPA-PSK2 |
Network Type (V1) | 4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800 MHz) TDD-LTE B38/B40 (2600/2300 MHz) 3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900 MHz) 2G: EDGE/GPRS/GSM (850/900/1800/1900 MHz) |
Network Type (V2) | 4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800 MHz) TDD-LTE B38/B39/B40/B41 (2600/1900/2300/2500 MHz) 3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900 MHz) 2G: EDGE/GPRS/GSM (850/900/1800/1900 MHz) |
Network Type (V3) | 4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800 MHz) TDD-LTE B38/B39/B40/B41 (2600/1900/2300/2500 MHz) 3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900 MHz) |
Network Type (APAC V3) | 4G: FDD-LTE B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz) TDD-LTE B38/B39/B40/B41 (2600/1900/2300/2500 MHz) 3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B5/B8 (2100/850/900 MHz) |
Software functions | |
Available modes of operation | 3G/4G router, wireless router |
Management | Access control, local management, remote management, restart schedule |
WAN connection type | Dynamic IP/Static IP/PPPoE/ PPTP/L2TP |
DHCP | Server, client, DHCP client list Reservation of addresses |
Port forwarding | Virtual servers, Triggering port, UPnP, DMZ |
Dynamic DNS | DynDns, NO-IP |
VPN Pass-Through | PPTP, OpenVPN, IPSec |
VPN | PPTP VPN, IPSec VPN , OpenVPN |
Access control | Parental control, local management |
Firewall protections | DoS, SPI Firewall, IP/domain filtering, IP&MAC binding |
Protocols | IPv4 and IPv6 |
Guest Network function | 2.4 GHz guest network |
Other | |
Certificates | CE, RoHS |
Package contents | TL-MR6400 RJ45 Ethernet cable Power supply Quick Installation Guide |
System requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Web browser IE11, Firefox 12.0, Chrome 20.0, Safari 4.0 or higher SIM card |
Working environment | Operating temperature: 0℃~40℃ (32℉~104℉) Storage temperature: -40℃~70℃ (-40℉~158℉) Operating air humidity: 10%~90%, non-condensing Storage humidity: 5%~90%, non-condensing |
