TP-Link TL-M7200 | LTE Router | 4G LTE, WiFi 2,4GHz, 2000mAh battery
![](https://www.batna24.com/img2/1000/328951_1.webp?20989284238)
EN

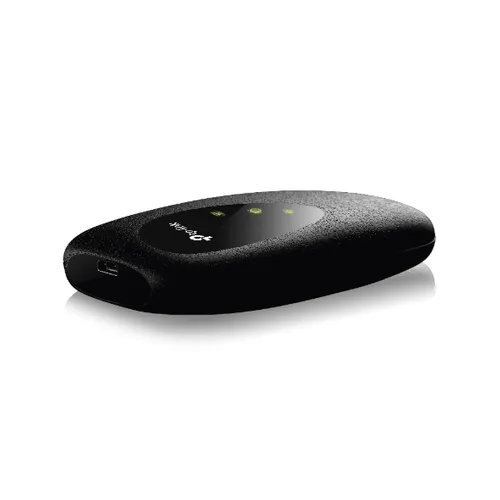

With the TP-Link M7200 portable LTE modem you will be able to enjoy the Internet wherever and whenever you want.
You will certainly appreciate the very compact design and very easy installation. Simply insert the SIM card into the M7200 and press the power button.
That's all, you're online!
The M7200 supports the latest generations of networks such as 4G FDD / TDD-LTE, making portable WiFi available in most countries and regions. Enjoy HD video on the go without interruption, fast downloads or stable video calls with friends.
Mobile LTE hotspot TP-Link M7200 supports mobile 3G / 4G data networks for up to ten devices simultaneously.
You'll appreciate that it is compatible with a stunning range of tablets, laptops and mobile phones. With apowerful 2000mAh battery, the M7200 can run for up to 8 hours at full power, making it an indispensable companion on the go.
Features / filters | |
Communication type | 4G/LTE, Wi-Fi, |
LTE category | Cat.4 (150Mb/s Download, 50Mb/s Upload) |
Maximum wireless transmission speed | 300 Mb/s |
Operating frequency | 2.4 GHz |
3G bands supported | 900,2100 |
3G standards | HSPA,HSPA+,UMTS |
4G bands supported | 800,900,1800,2100,2300,2500,2600 |
4G standard | LTE |
Additional connectors / interfaces | SIM, 1x MicroUSB, |
Antenna gain | Under 10dbi |
Antenna type | Internal |
Battery capacity | 2000 |
Cables included | Micro-USB |
Certification | CE, RoHS |
Data network | 3G, 4G |
Depth | 56.7 |
Device type | Cellular wireless network equipment |
DHCP client | Yes |
DHCP server | Yes |
Ethernet LAN | No |
Ethernet LAN data rates | 300 |
Ethernet LAN interface type | Not available |
Harmonized System (HS) code | 85176990 |
Height | 19.8 |
LTE bands | B1 (2100MHz), B3 (1800MHz), B7 (2600MHz), B8 (900MHz), B20 (800MHz), B38 (2600MHz), B40 (2300MHz), B41 (2500 MHz), |
Market positioning | Portable |
Networking standards | IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
Number of SIM cards | 1 |
Package depth | 95 |
Package height | 50 |
Package weight | 180 |
Package width | 135 |
Power source type | Battery |
Product colour | Black |
Security algorithms | WPA-PSK,WPA-PSK |
Type of device power supply | Built-in battery, USB port, |
UMTS bands supported | 900,2100 |
USB port | 1x Micro USB, No, |
Wi-Fi | Yes |
Wi-Fi standards | 802.11b,802.11g,Wi-Fi 4 (802.11n) |
Width | 94 |
Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Ente |
WLAN data transfer rates supported | 300 |
Equipment features | |
Ports | 1 micro USB port for charging the device's battery SIM card slot |
Buttons | Switch |
Power supply | Internal 2000mAh battery |
Type of network | 4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800MHz) TDD-LTE B38/B40/B41 (2600/2300/2500MHz) 3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900MHz) |
Transmission speed | DL: 150Mbps, UL: 50Mbps |
Dimensions (S x G x W) | 94 x 56,7 x 19,8 mm |
Antenna | Internal |
LEDs | Wi-fi network status, Internet connection status, battery status |
Wireless transmission characteristics | |
Wireless standards | IEEE 802.11b/g/n |
Wireless network speed | 300Mbps |
Frequency of operation | 2.4GHz |
EIRP | 2,4G <20dbm |
Wireless transmission security | WPA-PSK/WPA2-PSK encryption, MAC address filtering |
DHCP | DHCP server, DHCP client list |
Other | |
Package contents | Mobile hotspot LTE M7200 Micro USB cable Battery 2000mAh Quick Installation Guide |
System requirements | Windows 10/8/7/Vista/XP, Mac OS, Android, iOS, Windows Phone |
Certificates | CE, RoHS |
The Micro USB port is used for power and provides customers with access to a file on the SD card. What's more, it can also provide Internet access to a Windows PC through RNDIS technology.
For now, only Windows XP / Vista / 7/8/10 supports RNDIS.
Windows Vista / 7/8/10 RNDIS is plug-and-play, which means you connect your computer to 4G Mobile Wi-Fi using a USB cable and you can go online.
Mobile 4G Wi-Fi hotspot supports microSD cards with FAT / FAT32 / NTFS / ESFAT file formats.
First, we can log in to the device management page to check the SMS. Connect to its Wi-Fi network and open the website http://tplinkmifi.net.
Secondly, we can also check this with the tpMiFi application installed on smartphones.
If some customers on your network download a large file, most of the bandwidth and system resources will be busy, then only a few customers can use the network, but if all customers just browse the web, the M7200 can serve up to 10 customers at a time with good network performance.
Yes.
