TP-Link Archer TX3000E | WiFi Network Card | PCI Express, AX3000, Dual Band, Bluetooth 5.0
![](https://www.batna24.com/img2/1000/330171_1.webp?20989284238)
EN
The latest Wi-FI 6 standard guarantees extreme speed, ultra-low latency and uninterrupted connectivity. Utilizing WI-FI 6, the Archer TX3000E is specifically designed to free your gaming from clutter and fully optimize your ideal gaming environment. Discover the missing piece of your gaming arsenal!
The 1024-QAM modulation and 160 MHz bandwidth provide an efficient and continuous Wi-FI signal to fully unleash the potential of the Wi-FI Router 6. The speeds achieved are up to 3 times faster than standard WI-FI.
Low latency is essential for gaming success. Revolutionary OFDMA reduces network slowdowns by up to 75%. Enjoy incredibly responsive real-time gaming or immersive VR experiences.
Two omni-directional and high-performance antennas with magnetized base extend your existing WI-FI reception capabilities, allowing you to play anywhere, anytime. Place the magnetized antenna base anywhere on your desk to find the optimal spot for signal reception.
A revolutionary combination of OFDMA and MU-MIMO technology provides the most efficient WI-FI connection for your PC. OFDMA technology divides bandwidth resources into smaller units, while MU-MIMO allows more devices to communicate simultaneously - without delay.
The Archer TX3000E is compatible with the latest Bluetooth 5.0 technology, achieving up to 2x the speed and 4x the range of Bluetooth 4.2. Connect as many devices as you want including game controllers, headphones or keyboards. Enjoy a smoother experience than ever before!
The Archer TX3000E is built with a specialized heat sink to improve stability and reliability. Gold plating on each component to protect against oxidation ensures a superior networking experience.
The latest security enhancements WPA3 provides more secure and customized encryption for personal passwords, while protecting your network from wireless intrusions.You don't have to worry about the security of your network during online gaming.
Features / filters | |
Maximum wireless transmission speed | 3000 Mb/s |
Operating frequency | Dual Band (2.4GHz, 5GHz) |
Wireless network standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax, |
Antenna | Yes |
Antenna design | External |
Antenna gain | Under 10dbi |
Application | Universal |
Bluetooth | Yes |
Bluetooth version | 5.0 |
Built-in modem | None |
Certification | FCC |
Chipset | Intel Wi-Fi 6 |
Component for | PC |
Connectivity technology | Wireless |
Depth | 120.8 |
Detachable antennas | Yes |
Frequency range | 2.4 - 5 |
Harmonized System (HS) code | 85176990 |
Height | 21.5 |
Host interface | PCI Express |
Interface | WLAN / Bluetooth |
Internal | Yes |
Maximum data transfer rate | 2402 |
MIMO Type | 2x2 |
Modulation | 16-QAM,64-QAM,256-QAM,CCK,DBPSK,DQPSK,OFDM |
Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
Numbers of pieces in the package | 1-pack |
Operating relative humidity (H-H) | 10 - 90 |
Operating temperature (T-T) | 0 - 40 |
Product colour | Black, Red |
Receiver sensitivity | 5 GHz : 11ax HT160?-56.25dBm 11ax HT80: -59dBm 11ax HT40: -62.25dBm 11ax HT20: -65dBm 11ac HT160?-62dBm 11ac HT80: -65.5dBm 11ac HT40: -69.75dBm 11ac HT20: -73.75dBm 11n HT40: -74.5dBm 11n HT20: -77.5dBm 11a 54Mbps: -77.75dBm 11a 6Mbps: -9 |
Security algorithms | 64-bit WEP,128-bit WEP,802.1x RADIUS,WPA,WPA-PSK,WPA2,WPA2-PSK,WPA3 |
Storage relative humidity (H-H) | 5 - 90 |
Storage temperature (T-T) | -40 - 70 |
Sustainability certificates | RoHS |
Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
Transmitting power (FCC) | 27 |
Type of case | Plastic |
Type of device power supply | PCI Express |
Wi-Fi | Yes |
Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax) |
Width | 95.2 |
WiFi encryption | WEP, WPA-PSK/WPA2-PSK, |
Windows operating systems supported | Windows 10 |
WLAN data transfer rates supported | 54,300,574,1733,2402 |
Technical data: | |
Dimensions | 95.2 x 120.8 x 21.5 mm (3.7 x 4.8 x 0.8 inches) |
Antenna type | Two high-gain dual-band antennas Magnetic antenna base |
Chipset | Intel Wi-Fi 6 series chipset |
Wireless transmission characteristics | |
Wireless standards | 5 GHz: IEEE 802.11ax/ac/n/a 2.4 GHz: IEEE 802.11ax/n/g/b Bluetooth 5.0/4.2/4.0 |
Link speed in WLAN | 5 GHz 11ax: up to 2402 Mbps (dynamic) 11ac: up to 1733 Mbps (dynamic) 11n: up to 300 Mbps (dynamic) 11a: up to 54 Mbps (dynamic) 2.4 GHz 11ax: up to 574 Mbps (dynamic) 11n: up to 300 Mbps (dynamic) 11g: up to 54 Mbps (dynamic) 11b: up to 11 Mb/s (dynamic) |
Receiver sensitivity in WLAN | 5 GHz : 11ax HT160:-56.25dBm 11ax HT80: -59dBm 11ax HT40: -62.25dBm 11ax HT20: -65dBm 11ac HT160:-62dBm 11ac HT80: -65.5dBm 11ac HT40: -69.75dBm 11ac HT20: -73.75dBm 11n HT40: -74.5dBm 11n HT20: -77.5dBm 11a 54 Mbps: -77.75dBm 11a 6 Mbps: -94.5dBm 2.4 GHz : 11ax HT40: -60.75dBm 11ax HT20: -63.75dBm 11n HT40: -73dBm 11n HT20: -76.25dBm 11g 54 Mbps: -76.5dBm 11b 11 Mb/s: -89dBm |
WLAN output power | 5 GHz : 27 dBm (FCC) / 23 dBm (CE) (EIRP) 2.4 GHz : 26 dBm (FCC) / 20 dBm (CE) (EIRP) |
WLAN modes | Infrastructure mode |
Security of wireless transmission | 64/128-bit WEP encryption, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK, 802.1x |
Modulation | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM |
Bluetooth profiles | The Archer TX3000E supports all Windows 10 compatible Bluetooth profiles. For more information about Windows 10 compatible Bluetooth profiles, visit https://support.microsoft.com/pl-pl/help/10568/windows-10-supported-bluetooth-profiles. |
Other | |
Certificates | CE, FCC, RoHS |

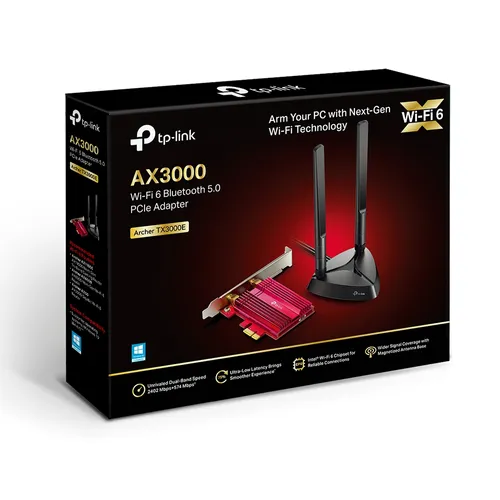

Contents of the package | Archer TX3000E Magnetic antenna base with 1m RF cable Two antennas with 5 dBi gain Low-profile footprint USB cable with pin header connector Quick installation guide CD |
System requirements | Windows 10 (64-bit) only |
Work environment | Operating temperature: 0℃~40℃ (32℉~104℉) Storage temperature: -40℃~70℃ (-40℉~158℉) Operating humidity: 10%~90%, non-condensing Storage humidity: 5%~90%, non-condensing |
The device operates on the standards:
5 GHz: IEEE 802.11ax/ac/n/a
2.4 GHz: IEEE 802.11ax/n/g/b
Bluetooth 5.0/4.2/4.0
The device works only on Windows 10 (64-bit).
95.2 x 120.8 x 21.5 mm (3.7 x 4.8 x 0.8 inches).
