Tenda F6 | WiFi Router | 2.4GHz, 4x RJ45 100Mb/s
![](https://www.batna24.com/img2/1000/329806_1.webp?20989284238)
EN
TheTenda F6 is a simple Wi-Fi router designed specifically for the typical urban apartment. The new F6 has a white design, lightweight body, smooth lines, simple and beautiful aesthetics to match and blend in with different home styles.
Tenda F6 router has four external antennas with good 5dBi gain, based on MIMO technology, multiple transmission, provide fast and stable wireless data transmission and effectively amplify Wi-Fi signals. The built-in Qualcomm chip is compatible with any major mobile phone signaling module and maintains a stable connection.
New WISP repeater mode, simpler and more compatible, amplifies WiFi signals in one step, you can enjoy WiFi coverage in the whole room and no WiFi lag. With Wi-Fi timer function, you can enjoy your WiFi without worrying about wasting too much time on it.
Features / filters | |
Wireless network standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, |
Basic general data | |
Manufacturer | Tenda |
Model | F6 |
Type | WiFi router |
Hardware | |
Standard | IEEE802.3, IEEE802.3u,IEEE802.3ab |

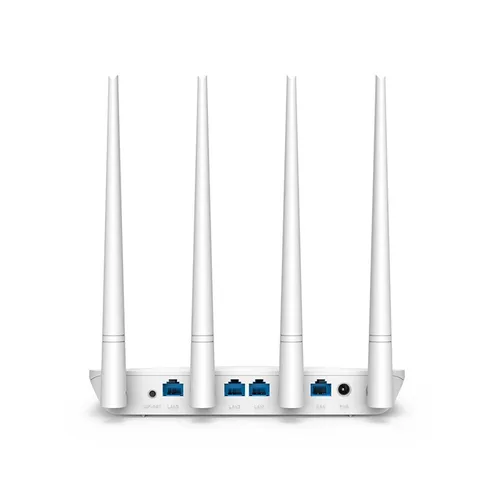

Interfaces | 1 x 10/100Mbps WAN port 3 x 10/100Mbps LAN ports |
Antennas | 4 x 5dBi external antennas |
Buttons | 1 x RST |
Power supply | Input:AC 100-240V~50/60Hz 0.6A Output:DC 9V 0.6A |
Dimensions | 204 mm x 147.5 mm x 211 mm |
LED indicators | 1 x SYS |
Wireless network | |
Wireless standards | IEEE 802.11b/g/n 2.4GHz |
Data transmission speed | 2.4GHz: Up to 300Mbps |
Frequency | Simultaneous dual band 2.4 |
Transmission power | CE:<20dBm |
Basic functions | WiFi on/off |
Wireless network security | WPA/WPA2, WPA-PSK/WPA2-PSK |
Software | |
Internet connection type | PPPoE, Dynamic IP, Static IP PPPoE(Russia), PPTP(Russia), L2TP(Russia) |
Mode of operation | Wireless router Mode Universal Repeater Mode WISP mode AP mode |
DHCP server | DHCP server DHCP client list DHCP reservations |
Virtual server | Port forwarding DMZ Host UPnP |
Security | Customer filter Parental control (blacklist and whitelist support) Remote website management |
Firewall | Preventing UDP flood attacks Blocking TCP flood attacks Block ICMP attacks Do not allow WAN PING from the Internet |
DDNS | No-ip, DynDNS, Oray |
VPN | IPsec Pass Through Passing PPTP L2TP Passing |
Special functions | PPPoE username/password cloning Smart WiFi scheduler |
Other | Bandwidth control MAC Cloning System log Backup and restore configuration Possibility of firmware update through a browser |
Other | |
Temperature | Operating temperature: 0℃ ~ 40℃ Storage temperature: -40℃ ~ 70℃. |
Humidity | Operating humidity: 10% ~ 90% RH non-condensing Storage Humidity: 5% ~ 90%RH non-condensing. |
Default settings | Default access: 192.168.0.1 |
Certificates | CE/FCC/RoHS |
EIRP power (max.) | 2.400 - 2.4835 GHz: 19.50dBm (EIRP) |
Contents of the package | 1 x Wireless Router 1 x Power adapter 1 x Installation Manual 1 x Ethernet cable |
All ports of Tenda F6 have Fast Ethernet ports with 100 mbps throughput.
