The Ruijie Reyee RG-RAP2260(E) is an innovative Wi-Fi 6 ceiling access point that guarantees a high-quality network connection. It can transmit data at speeds of up to 3202 Mbps and can support up to 512 users, ensuring connection stability without loss of signal quality. It also has two Gigabit Ethernet ports, 4x4 MU-MIMO function and supports Reyee Mesh technology. Installation and management of this device is easy with SON and WIO technologies. It is ideal for use in high traffic areas such as hotels, schools and offices.
Ruijie Reyee RG-RAP2260(E) offers modern management solutions. By working with the Ruijie Cloud system and the Ruijie Reyee mobile app, managing your network will become simpler and more intuitive. Ruijie Cloud is the leading global network surveillance platform, offering robust, reliable and free tools. Monitor, modify and analyze your network equipment from anywhere in the world, create detailed reports and stay up to date with notifications and updates.
With the Ruijie Reyee app on your phone, setting up a Wi-Fi network has never been easier. In just 3 minutes you're ready to use the network. The app makes adding devices, setting up Wi-Fi and monitoring your network a piece of cake, all available right on your smartphone or tablet. Whether you're using Android or iOS, download the free app from Google Play or the App Store and discover new ways to manage your network connection.
The Ruijie Reyee RG-RAP2260(E) is an easy-to-install product for which you don't need special skills or tools. Its compactness is evidenced by its dimensions of 220 x 220 x 35 mm and a weight of just 1 kg, making it easy to place on the ceiling or wall.
The Ruijie Reyee RG-RAP2260(E) uses advanced SON technology, which allows the network to automatically adjust key settings such as channel, power and roaming. The Ruijie Reyee app has made the Wi-Fi setup process more intuitive and easier than before.
The Ruijie Reyee RG-RAP2260(E) is equipped with advanced WIO technology, which intelligently recognizes and cancels out interference from other Wi-Fi devices. This allows users to enjoy a stable and fast connection.

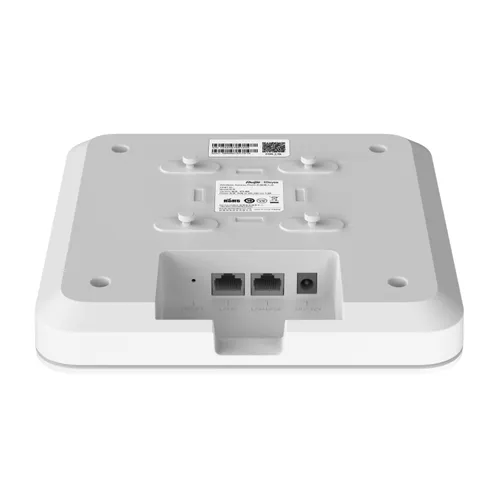

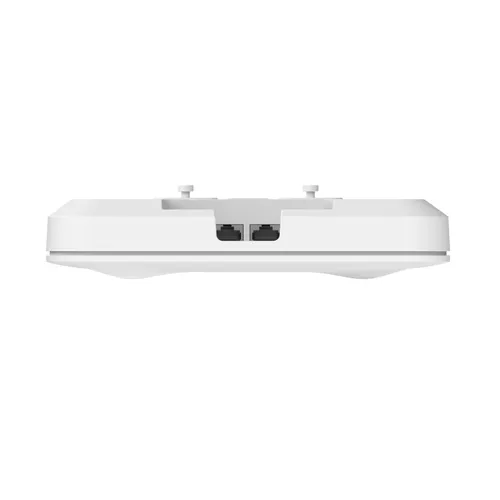

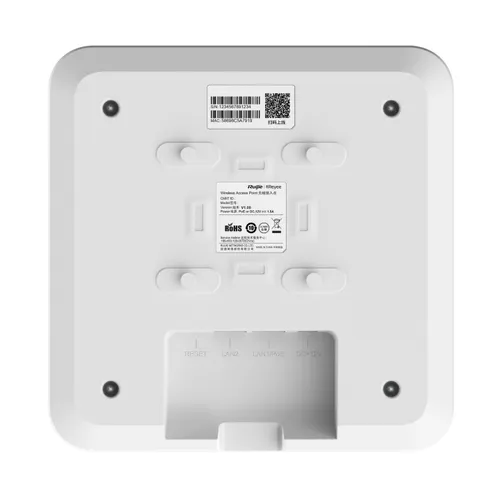

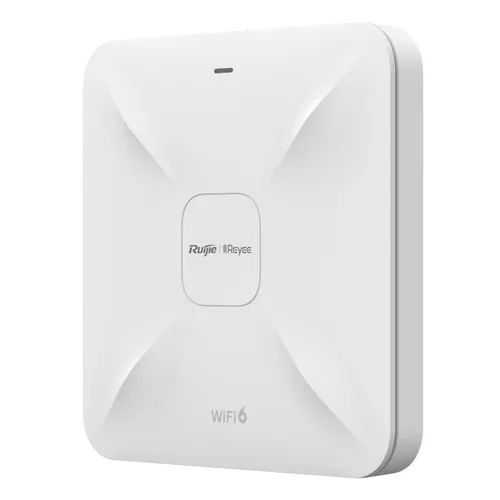

The Ruijie Reyee RG-RAP2260(E) features a modern and stylish design that blends into any space. The device has a white, rounded casing with a discreet Ruijie logo on the front. The top is adorned with an LED indicating the device's operation, while on the back you'll find network ports (1x 10/100/1000M and 1x 10/100/1000M/2.5G), a reset button and mounting hardware.
The Ruijie Reyee RG-RAP2260(E) allows users to seamlessly switch between different Wi-Fi access points, ensuring connection continuity. Users can move freely in a Wi-Fi covered area without worrying about interruptions or inferior signal quality. This is made possible by the 802.11k/v/r protocol, which guarantees a fast and smooth connection to different access points. This is especially important in places where people move frequently, such as hotels, universities, office buildings and shopping malls.
Reyee mesh technology allows users to create an advanced wireless network by connecting multiple Wi-Fi access points into a unified whole. Users can enjoy a fast and reliable wireless connection throughout the network area. This works on the basis of the 802.11s protocol, which guarantees efficient communication between different access points. The Reyee mesh network can be easily configured and supervised using the Ruijie Cloud app or their management platform. This is especially beneficial in areas with difficult signal transmission, for example, due to long distances, physical obstacles or interference.
| Features / filters | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| AC input voltage | 12 |
| Antenna type | Internal |
| Depth | 220 |
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN data rates | 10,100,1000 |
| Frequency band | 2.4 - 5 |
| Height | 35 |
| Input current | 1.5 |
| LED indicators | Yes |
| Maximum data transfer rate | 3202 |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Networking standards | IEEE 802.3at |
| Number of WLAN connections (max) | 512 |
| Operating temperature (T-T) | 0 - 40 |
| Placement | Ceiling, Floor, Wall |
| Power consumption (typical) | 25.4 |
| Power over Ethernet (PoE) | Yes |
| Product colour | White |
| Throughput data rate | 3202 |
| VLAN support | Yes |
| Weight | 1.05 |
| Width | 220 |
| Technical data | |
| Wireless protocol | 802.11ax (Wi-Fi 6) |
| Maximum throughput | 3202Mbps |
| PoE output | No |
| Maximum / recommended number of customers | 512 / 120 |
| Management | Ruijie Cloud app Ruijie Cloud platform Web interface |
| Interfaces | 1x RJ45 10/100/1000M/2.5G Base-T 1x RJ45 10/100/1000M Base-T |
| MIMO | 4x4 @2.4 GHz, 4x4 @5 GHz |
| Power supply | 802.3af/802.3at PoE Power supply |
| Certification | CE, ROHS |
| Dimensions | 220mm × 220mm × 35mm |
| Weight | 1.05 kg (without mounting bracket) |
| Operating temperature | 0°C~40°C |
| Energy consumption | <25.4W |
The maximum number of clients is the capacity of the equipment, and the recommended number of clients is the amount for actual network planning.
It is used to connect IP cameras or other IP-based devices. The port does not have PoE output.
Layer 3 roaming allows customers to move seamlessly between different VLANs.
