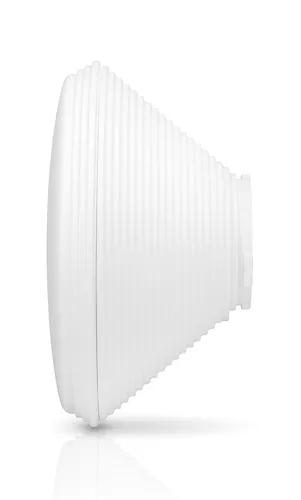

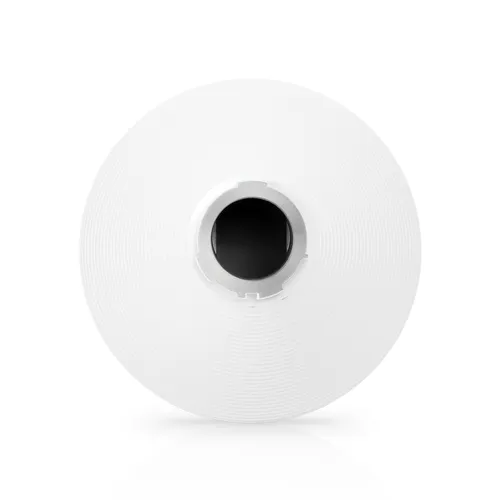

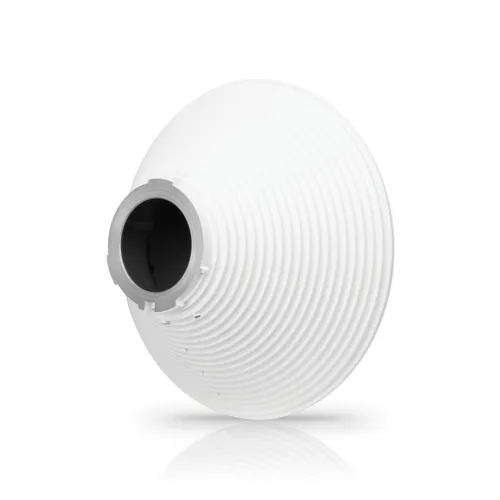

Ubiquiti HORN-5-45 | Sector antenna | airMAX Horn, 5GHz, 45 degrees
![](https://www.batna24.com/img2/1000/327459_1.webp?20989284238)
![](https://b2b.batna24.com/products/Logos/product/DNXFGKQUEKSJ.png)
EN
Insulation antennas are interchangeable and have a high performance in the flux range to meet a range of demanding applications. In combination with the PrismStation 5AC or airFiber LTU, the system achieves the maximum gain from the smallest area.
The ubiquiti airmax sector antenna 45° offers breakthrough scaling options for wireless systems. The unique beam performance and excellent colocation characteristics allow greater sector density than traditional sector technologies.
The airmax sector antenna can be used with the following devices
Features / filters | |
Antenna frequency | 5 GHz |
Antenna type | Horn |
Energy gain | 10dBi - 20dBi |
Antenna gain level (max) | 15.5 |
Application | Outdoor |
Compatible with brand | Ubiquiti |
Cross polarization isolation | 17 dB |
Frequency band | 5.15 ? 5.85 |
Harmonized System (HS) code | 85177100 |
Horizontal beamwidth | 45° |
Polarization | Double linear |
Product colour | White |
Quantity per pack | 1 |
Vertical beam width | 45 |
Vertical beamwidth | 45° |
VSWR | 1.7:1 |
Basic technical parameters | |
Dimensions | 175 × 175 × 175 × 96 mm |
Weight | 0.54 kg |
Frequency range | 5.15 - 5.85 GHz |
Compatible radio stations | IsoStation/PrismStation/airFiber AF-LTU |
Gain | 15.5 dBi |
HPOL beam width | 45° |
VPOL beam width | 45° |
Height of the beam | 45° |
Polarisation | Two-line |
Cross-insulation | 17 dB |
Maximum VSWR | 1.7:1 |
Wind load | 56 N at 200 km/h |
Wind resistance | 200 km/h |
1. In the case of replacing the antenna with a different model you need to frist turn the tube antenna counter-clockwise while pressing the release button.
2. To insert the antenna match the arrow on the tube antenna to be straight with the release button.
3. Press the antenna down and turn it to the right until you hear it click.
The frequency range: 5.15 - 5.85 GHz
The width of the beam, vertical and horizontal: 45°
