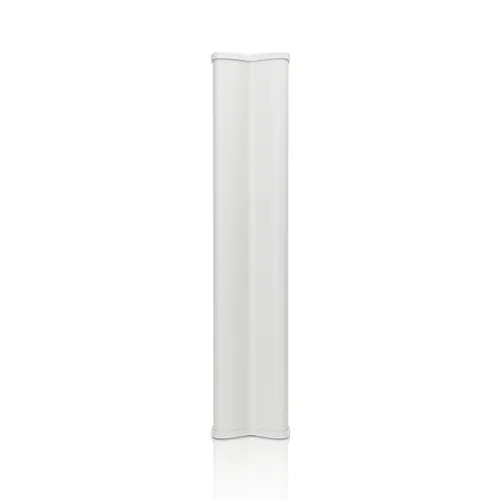

Ubiquiti AM-2G15-120 | Sector antenna | airMAX, 2,4GHz 15dBi
![](https://www.batna24.com/img2/1000/513_1.webp?20989284238)
![](https://b2b.batna24.com/products/Logos/product/DNXFGKQUEKSJ.png)
EN
The airMAX sector antenna from Ubiquiti is a high class antenna with dual polarity 2x2 MIMO, characterized by operation in the 2.4GHz frequency band and an energy gain of 15dBi. AirMax Sector Dual Sector antenna has been designed to work with AirMax devices using 802.11n standard.
The use of innovative solutions allowed to achieve a high energy gain (15dBi), an appropriate level of separation between polarized beams and the use of 2.4GHz band. Thanks to this, the product works well in most environments.
Each airMAX sector antennas are designed for rugged construction for outdoor applications.
The AM-2G15-120 antenna from Ubiquiti complements the airMax series and integrates with Rocket M devices. A pair of devices together with the sector antenna airMaX creates a powerful base station. This allows for great flexibility and convenience in the process of designing network architecture. The AM-2G15-120 sector antenna is easy to install, no special tools are required for installation.
Features / filters | |
Antenna frequency | 2.4 GHz |
Energy gain | 10dBi - 20dBi |
Antenna gain level (max) | 15 |
Antenna type | Sector, Sector antenna, |
Application | Outdoor |
Compatible with brand | Ubiquiti |
Cross polarization isolation | >28 dB |
Depth | 145 |
Electric deviation | 4° |
Frequency band | 2.4 |
Harmonized System (HS) code | 85177100 |
Height | 700 |
Horizontal beam width | 123 |
Horizontal beamwidth | 123° |
Polarization | Double linear, Dual polarization, |
Product colour | White |
Quantity per pack | 1 |
Vertical beam width | 118 |
Vertical beamwidth | 118° |
Voltage Standing Wave Ratio (VSWR) | 1.5:1 |
VSWR | 1.5:1 |
Weight | 4 |
Width | 93 |
Basic technical parameters | |
Dimensions (mm) | 700 × 145 × 93 |
Weight | 4.0 kg |
Frequency band | 2.3 - 2.7 GHz |
Gain | 15.0 - 16.0 dBi |
Horizontal beamwidth | 123° (6 dB) |
Vertical beamwidth | 118° (6 dB) |
Electrical beamwidth | 9° |
Electrical downtilt | 4° |
Max VSWR | 1.5:1 |
Wind resistance | 200 km/h |
Wind load | 169 N @ 200 km/h |
Polarisation | Horizontal and vertical (Dual-Linear) |
Insulation between the polarization | 28 dB Min. |
ETSI | EN 302 326 DN2 |
Installation equipment | Universal pole bracket, mounting brackets for RocketM, waterproof coaxial cable included |
The frequency band: 2.3 - 2.7 GHz
Polarization: Dual-Linear
