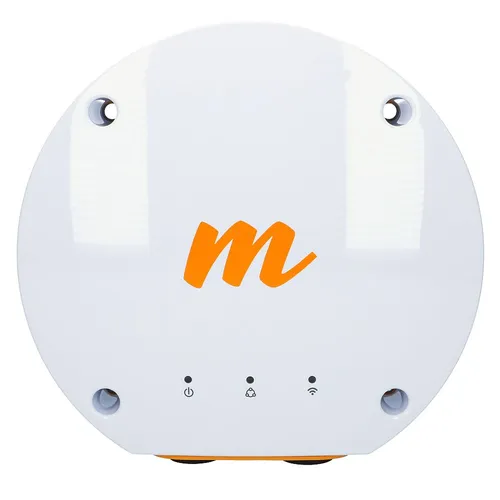

Mimosa B11 is a radio backhaul system specifically designed to meet the requirements of the Internet of the new era, where bi-directional traffic is constantly changing and requires optimal resource management to achieve high bit rates and low latency.
The transition from fiber to radio is the future of communication and B11 is ready for it. Just select the SFP module that suits you and enjoy gigabit speeds. If you're looking forward to the future, you can always use the standard PoE RJ45 Gigabit connector as well.
During the evening rush, the downloaded data and video data account for nearly 90% of all traffic. The day is a 180-degree rotation, in the network we see mostly symmetrical traffic or more often priority traffic from business customers. Older generation radio and FDD links are most often blocked for symmetrical transmission, which means that a large amount of resources are permanently wasted during the day and are missing in the evening. B11 solves this problem by dynamically adapting to current demand with Auto-TDMA technology maximizing resource and spectrum usage.
Licensed bands have always been regarded as reliable and reliable. Today, with the B11 and its precision, you can still feel this confidence and reliability and benefit from more efficient spectrum usage and dynamic bandwidth control. All this at an extremely favourable price.
There's no bad weather for B11. Designed and supplied with all components to IP67 protection.
Adjusting the antenna for the best signal is often a coincidence rather than a deliberate action. We decided to remedy this by adding an additional 2.4 GHz module to B11. Thanks to this we turn every smartphone into a precise meter. The installer can now personally observe the signal strength indication and precisely adjust the antenna setting.
From the shortest to the longest connections. You can add both small and very large antennas to the B11 as needed.
Features / filters | |
Antenna frequency | 11 GHz |
Number of LAN ports | 1x [100/1000M (RJ45)] , 1x SFP (1,25G), |
Antenna gain | Not applicable |
Device type | Radioline |
Performance | |
Max. Performance | Up to 1.5 Gbps IP aggregated UL/DL (1.7 Gbps PHY), 750 Mbps IP in TDMA-FD mode |
Delay | < 1 ms |
Work records | TDMA, TDMA-FD |
Radio | |
MIMO imodulation | 4x4:4 MIMO; OFDM to 256QAM |
Bandwidth | One or two 20/40/80 MHz channels |
Operating frequency range | 10000-11700 MHz depending on operating region |
Max. Transmission power | 27 dBm |
Power supply | |
Max. Power consumption | 30 W |
Power supply | 48 V DC, 802.3at |
Surge protection | 6 kV |

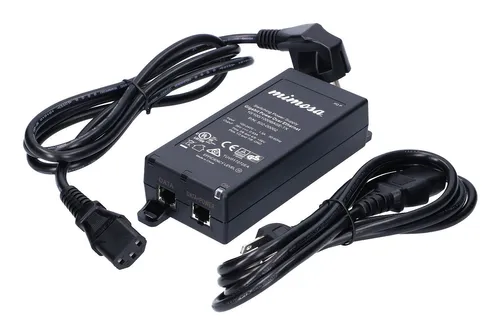

Power supply | Compliant with Passive POE or 802.3at, 48-56 V, with surge protection to IEC61000-4-5 (power supply included) |
Physical characteristics | |
Exchanges | Height: 260 mm, Width: 158 mm, Depth: 70 mm |
Weight | 2 kg |

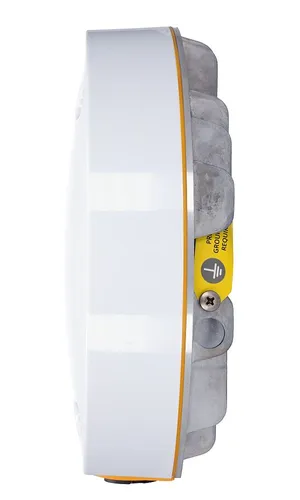

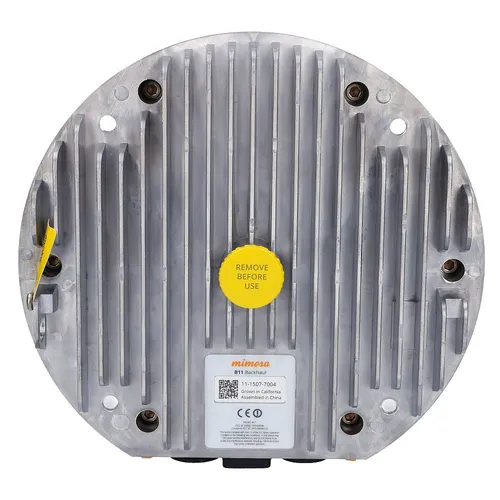

Case | External; UV-resistant plastic front; Aluminium mounting base |
Installation | Direct mounting to a compatible antenna |
Degree of protection | IP67 |
Cable harbours | SFP connector; RJ45 - Gigabit Ethernet 10/100/1000-BASE-T |
Certification | FCC Part 101 and EN 302 217; RoHS Compliance; UL/EC/EN/ 60950-1 + CSA-22.2 |
