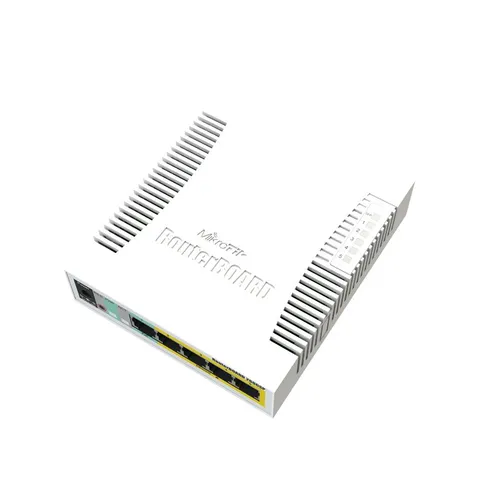

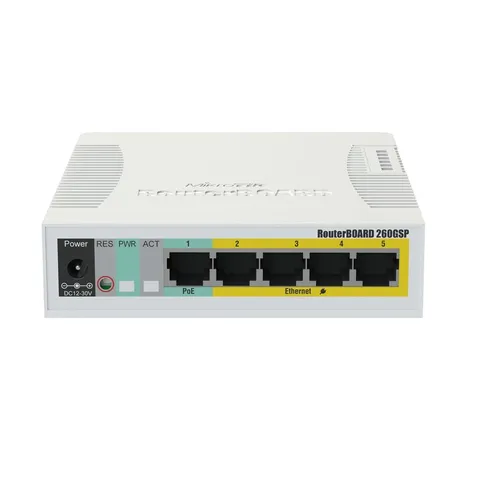

MikroTik RouterBoard RB260GSP (CSS106-1G-4P-1S) is a manageable switch designed mainly for SOHO market. RB260GSP is equipped with 5 Gigabit Ethernet ports and 1 x SFP. (Gigabit Ethernet, mini-GBIC). Ports 2 to 5 can power other PoE-capable devices with the same voltage as the device.
The switch is based on the Taifatech TF470 processor. It is equipped with 96K SRAM and switching between Ethernet and SFP ports is done with Atheros switch. The SwOS operating system was designed especially for MikroTik switches, it can be managed from a web browser, thanks to which we have access to all the basic functions of the switch and options offered in very advanced network devices.
| Basic technical data: | |
| Product code | CSS106-1G-4P-1S |
| Dimensions | 113 x 139 x 28 mm |
| Operating system | SwOS MicroTik |
| Storage size | 128 KB |
| Type of storage | FLASH |
| Tested ambient temperature | From -20°C to 70°C |
| PoE in | Passive PoE |
| PoE at the input, voltage | 11-30 V |
| PoE out | Passive PoE |
| PoE-out ports | Ether2-Ether5 |
| Number of DC inputs | 2 (DC socket, PoE-IN) |
| DC socket input voltage | 11-30 V |
| Maximum output per port (input < 30 V) | 1 A |
| Maximum output (A) | 2 A |
| Maximum energy consumption | 53 W |
| Maximum power consumption without annexes | 5 W |
| Ethernet ports | 5 x Gigabit 10/100/1000 Ethernet |
| SFP DDMI | Yes |

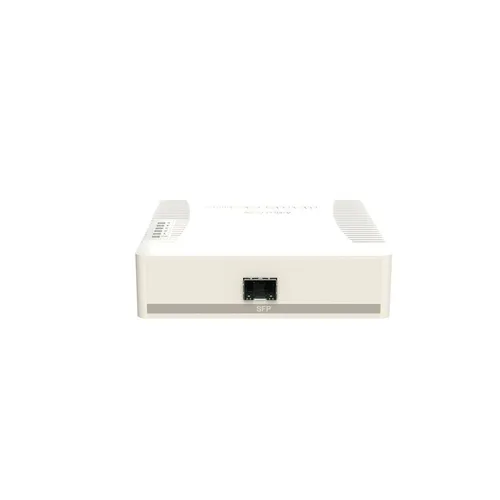

| Ports SFP | 1 x socket for SFP Gigabit inserts (mini-GBIC) |
| PCB temperature monitor | Yes |
| Voltage monitor | Yes |
SwOS is an operating system designed to administer MikroTik switch products, which can be configured from a web browser. It provides all the basic functions of a manageable switch, it also allows you to control a broadcast storm, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth restriction, manage port to port forwarding, and customize some MAC headers and IP fields.
Dynamic routing, hotspot, firewall, MPLS, VPN, advanced service quality, load balancing, real-time configuration and monitoring are just some of the great number of features supported by RouterOS.
MikroTik RouterOS is the operating system of the router and software that allows the dedicated router to be a PC or Mikrotik RouterBoard.
