MikroTik LHG 60G | Radioline | RBLHGG-60ad, 60GHz, 1x RJ45 1000Mb/s
![](https://www.batna24.com/img2/1000/327486_1.webp?20989284238)
EN
The LHG 60G offers a simple and effective 60 GHz interference-free solution for wireless connections where 2 GHz and 5 GHz wireless space is congested and unreliable. Connect up to eight of these devices to a 60 GHz access point, such as our wAP60G access point or wAP 60Gx3 AP, and enjoy a seamless connection with data transfer speeds up to 2 Gb/s.

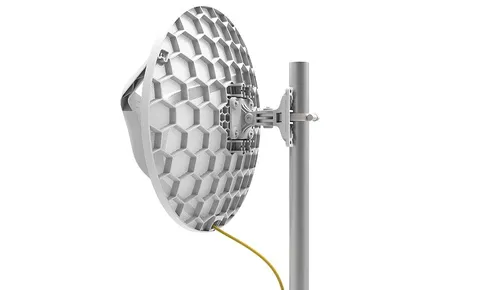

The effective point-to-point distance between two LHG 60G devices is up to 1500 meters and the point-to-multipoint distance is up to 800 meters. The grid design provides wind protection, withstands temperatures from -40° to +70° C. The antenna is built into the wireless unit which eliminates cable loss.
The LHG 60G is equipped with a Gigabit Ethernet port for fast connections, a 4-core ARM Cortex A7 processor with 716 MHz and 256 Mb of RAM. A 391 mm mesh antenna is included. The kit includes 24 V DC, 0.38 A power supply, Gigabit PoE injector and LHG mount and aim tool. The LHG 60g rblhgg60ad can also be powered by passive PoE.
Features / filters | |
Antenna frequency | 60 GHz |
Number of LAN ports | 1x 10/100/1000BaseTX (RJ45) |
Built-in processor | Yes |
Cabling technology | 10/100/1000Base-T(X) |
Device type | Radioline |
Diameter | 39.1 |
Flash memory | 16 |
Frequency band | 60 |
Harmonized System (HS) code | 85177100 |
Height | 222 |
Input voltage | 12-57 |
Internal memory | 256 |
Maximum operating distance | 1500 |
Networking standards | IEEE 802.11ad,IEEE 802.3af,IEEE 802.3at |
Operating temperature (T-T) | -40 - 70 |
Power consumption (max) | 5 |
Power source type | PoE |
Processor frequency | 716 |
Product colour | White |
Radio link distance | 1500 m |
Basic technical parameters : | |
Product code | RBLHGG-60ad |
Architecture | ARM 32bit |
CPU | IPQ-4019 |
Number of processor cores | 4 |
Nominal processor frequency | 716 MHz |
Operating system | RouterOS |
Router OS License level | 3 |
RAM | 256 MB |
Flash Memory | 16 MB |
Tested operating temperature | From -40 ° C to 70 ° C |
PoE in | 802.3af / at |
PoE at the input Voltage | 12–57 V. |
Number of DC inputs | 1 (PoE-IN) |
Maximum energy consumption | 7 W. |
Ethernet port | 1x Gigabit Ethernet 10/100/1000 Mb/s port |
Case certificates | " RED, FCC, IC, EAC, ROHS |
Packaging composition | LHG 60G 24 V DC power supply, 0.38 A Gigabit PoE injector LHG mount aim tool |
Transmission range up to 800 meters ( multipoint ) 1500M ( point to point )
MikroTik's RouterOS is the operating system of the router and software that allows a PC or Mikrotik RouterBoard to be a dedicated router.
It is a device that provides hosts with access to a computer network using a wireless transmission medium such as radio waves. An access point is usually a bridge that connects your wireless local network to your local network.
