MikroTik hEX S | Router | RB760IGS, 5x RJ45 1000Mb/s, 1x SFP, 1x USB

CODE: RB760IGS / EAN: 4752224002785

MikroTik hEX S | Router | RB760IGS, 5x RJ45 1000Mb/s, 1x SFP, 1x USB

CODE: RB760IGS / EAN: 4752224002785
59,97 GBP without VAT (net)
Number of LAN ports: 5x 10/100/1000BaseTX (RJ45),  1x SFP (1,25G),
Additional connectors / interfaces: 1x USB
Antenna type: Not supported
Cabling technology: 10/100/1000Base-T(X)
Show more parameters

About product

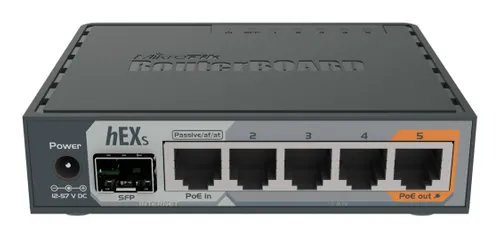

Microtik hEX S RB760iGS - Five-port Gigabit Ethernet router

hEX S is a five-port Gigabit Ethernet router for locations where wireless connectivity is not required. Compared to hEX, hEX S also has port SFP and PoE output on the last port.

HEX S RB760IGS ROUTER

Mikrotik Routerboard RB760iGS hEX s - Efficient and easy to use

Mikrotik RB760iGS is inexpensive, small and easy to use, but at the same time equipped with a very powerful 880 MHz durbine-conductor and 256 MB RAM, capable of all advanced configurations supported by RouterOS. The device has a USB 2.0 port, PoE output for Ethernet port and 1.25Gbit/s SFP frame.

Mikrotik Routerboard RB760iGS hEX s - Efficient and easy to use

hEX S - Hardware encryption

Hardware encryption IPsec (~470 Mbps) and server package Dude is supported, the microSD slot on it provides increased r/w speed for file storage and Dude.

hEX S - Hardware encryption

Block diagram

Block diagram
Block diagram

Basic features:

  • Dude server package
  • Integrated microSD card slot
  • Support for IPsec hardware encryption (~ 470 Mbps)
  • Includes 24V 1.2A power supply (can also be supplied via PoE according to 802.3af/at standard)
  • High performance dual core processor MT7621A (880 MHz)
  • 265 MB RAM
  • USB 2.0 port
  • Hardware support for IPSec encryption
  • RouterOS system with Level 4 license

Specification

Features / filters
Number of LAN ports 5x 10/100/1000BaseTX (RJ45), 1x SFP (1,25G),
Additional connectors / interfaces 1x USB
Antenna type Not supported
Cabling technology 10/100/1000Base-T(X)
CPU frequency 880 MHz
DC-in jack Yes
Depth 89
Ethernet interface type Gigabit Ethernet
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 5
Ethernet LAN data rates 10,100,1000
Ethernet WAN Yes
Harmonized System (HS) code 85176990
Height 28
Installed SFP modules quantity 1
Internal memory 256
Management CLI - Command Line Interface, By web browser,
Number of CPU cores 2
PoE input Yes
PoE output Yes
Power consumption (typical) 11
Power over Ethernet (PoE) ports quantity 1
Power source type DC
Product colour Black
RAM memory 256MB
Type of case Desktop
Type of device power supply PoE 802.3af/at, Power supply, Passive PoE,
USB ports quantity 1
Width 113

Basic technical parameters
Manufacturer Mikrotik
Model RB760iGS
CPU MT7621A
CPU frequency 880 MHz
Number of CPU cores 2
Processor threads 4
Memory RAM 256 MB
Number of ports 10/100/1000 Mb/s 5
SFP slot 1
PoE input Passive, 802.3af/at
PoE output Passive PoE up to 57 V (Ether5)
Supported input voltage DC and PoE in: 12 – 57 V
Output power Maximum output per port (input <30 V): 500 mA
PCB temperature monitor Yes
Voltage monitor Yes
USB slot USB type A
MicroSD slot 1
Ambient temperature during operation -40˚C to +70˚C
Dimensions 113 x 89 x 28 mm
Licence level 4
Operating system RouterOS
Maximum energy consumption 11 W

Support

Downloads:

Microtik hEX S RB760iGS (ENG) brochure Download

Faq

What's a router ?

Network device operating in the third layer of the OSI model. It is used to connect different computer networks.

What is the PoE power supply for ?

PoE allows you to use a single cable for power and data transmission, saving you money on purchasing and dragging cables for network devices and VoiP phones.

What is a MicroTik RouterOS?

MikroTik RouterOS is the operating system of the router and software that allows the PC or Mikrotik RouterBoard to be a dedicated router.
