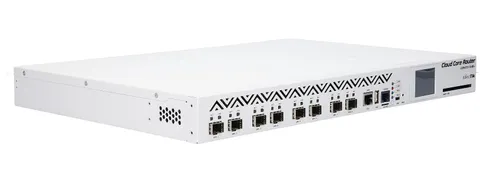

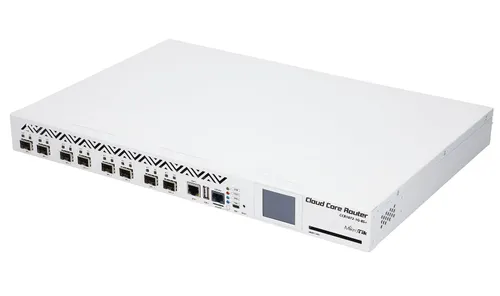

The CCR1072 router is powered by a 72-core Tiler processor, each core is clocked to 1 GHz, and to take full advantage of this power the CCR1072 is equipped with eight independently connected 10G SFP+ ports and one Ethernet port for management purposes.
The device is equipped with installed system RouterOS L6, 16 GB built-in memory ECC RAM, color LCD touch screen, two removable (hotplug) power supplies for redundancy, smart card slot, microUSB, standard USB size, microSD and 2 M.2 slots for additional storage. Additionally, the device can handle more than 120 million packages per second.
| Basic technical parameters | |
| Nominal processor frequency | 1 GHz |
| Number of processor cores | 72 |
| Size of RAM | 16 GB |
| Storage | 128 MB NAND |
| 10/100/1000 Ethernet ports | 1 |

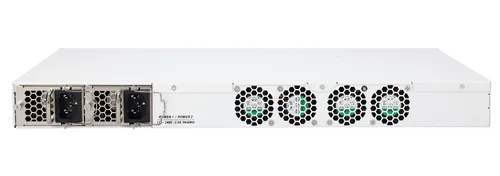

| Power supply | 2x standard IEC connector C14 110/220 V (two redundant power supplies) |
| Supported input voltage | 12 V |
| Processor temperature monitor | Yes |
| Printed circuit board temperature monitor | Yes |
| Voltage monitor | Yes |
| Current monitor | Yes |
| Dimensions | 443 × 315 × 40 mm |
| Weight | 3.8 kg |
| Licence level | 6 |
| Operating system | RouterOS |
| Processor | Tile-Gx72 CPU |
| Maximum power consumption | 125 W |
| Display | colour LCD, touch screen |
| SFP | (8) 10G Ethernet SFP+ (Mini-GBIC; SFP module not included), DDMI support |
| Extension | (1) microUSB 2.0 (1) Ordinary USB 2.0 port Full size smart card slot microSD socket (2) M.2 socket with x4 PCIE 2.0 support Key-M |
| Serial port | RJ45 |
When you install RouterOS software or turn on the router for the first time, there are different ways to connect to it:
- Access to command line interface (CLI) via Telnet, SSH, serial cable
- Access to the graphic interface (WebFig)
- Using the WinBox configuration tool (Windows application)
Each router is configured at the factory with IP address 192.168.88.1/24 on Ethernet port1. The default user name is admin without password. After logging in for the first time, please create a new user with the password in group "full". , log in again and delete the default administrator user.
Firewall, Routing, MPLS, VPN, Wireless, DHCP, Hotspot, QoS, Proxy and more.
