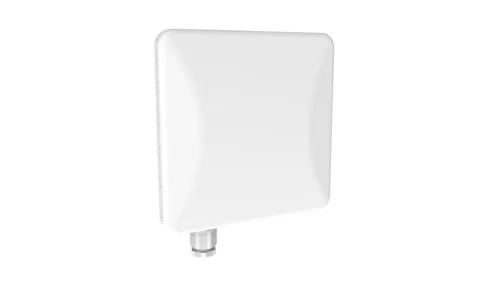

LigoWave Ligo DLB 5-20 AC | CPE | 5GHz 2x2 MIMO, 1x RJ45 1000Mb/s, 20dBi
![](https://www.batna24.com/img2/1000/284151_1.webp?20989284238)
EN
Incredible performance
500+ Mbps throughput - a result of powerful hardware platform with 802.11ac technology based radio and a proprietary data transmission protocol (iPoll). Incorporating a QCA 9563 CPU (750 MHz), a QCA 9882 radio and 64 MBytes of RAM and 16 MBytes of flash memory, the LigoDLB 5-15 ac series devices are an ideal solution for capacity demanding applications. State of the art RF design with great output power and sensitivity parameters improve range and capacity over highest the modulation - 256 QAM. The 24V Gigabit Ethernet port (passive PoE) allows utilizing the full capacity of the radio when used in a point-to-point or point-to-multipoint network design. LigoDLB ac series devices are backwards compatible with LigoDLB devices using iPoll mode, which helps to expand or upgrade existing networks using the latest technologies over time.
Distance recommendation | PTMP mode | PTP mode |
LigoDLB 5-20 ac | 10 km/ 6.21 mi | 15 km/ 9.32 mi |
Frequency range | 5.1 - 5.9 GHz |
Gain | 20 dBi |
Polarization | Dual linear |
Cross-pol Isolation | 27 dBi |
VSWR | <1.8 |
Azimuth beamwidth (H pol) | 16 deg |
Azimuth beamwidth (V pol) | 16 deg |
Elevation beamwidth | 16 deg |
Wireless
- WLAN standard IEEE 802.11 a/n/ac, iPoll 3
- Radio mode MIMO 2x2
- Radio frequency band 5 GHz models: 5.150 - 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz)
- Transmit power Up to 30 dBm (country dependent)
- Channel size 5, 10, 20, 40, 80 MHz
- Modulation schemes
802.11 a/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK)
802.11 ac: OFDM (256-QAM, 64-QAM, 16-QAM, QPSK, BPSK)
- Data rates
802.11 ac @ 40 MHz: 400, 360, 300, 270, 240, 180, 120, 90, 60, 30 Mbps
802.11 ac @ 80 MHz: 866, 780, 650, 585, 520, 390, 260, 195, 130, 65 Mbps
- Error correction FEC, LDPC
- Duplexing scheme Time division duplex
Antenna
Type Integrated dual-polarized directional panel antenna
Gain 20 dBi
Wired
Interface 10/100/1000 Base-T, RJ45
Physical
Dimensions 216 mm (8.5 ‘’), 184 mm (7.2 ‘’), 80 mm (3.1 ‘’)
Weight 413 g (0.91 lb)

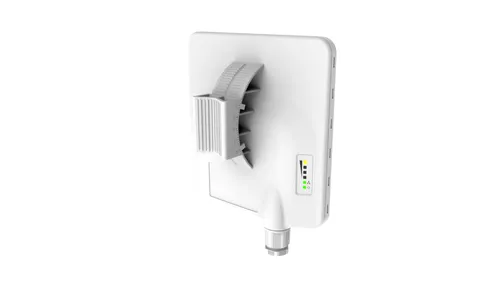

Mounting Pole mounting bracket included
Power
Power supply 24 VDC passive PoE (AC to 24 VDC adapter is included in the package)
Power source 100 – 240 VAC
Power consumption (max) 10 W
Environmental
Operating temperature -40°C (-40 F) ~ +65°C (+149 F)
Humidity 0 ~ 90 % (non-condensing)
Management
System monitoring SNMP, Syslog, Web UI, WNMS
Configuration WebUI, WNMS
Regulatory
Certification FCC/IC/C
