MikroTik SXT LTE6 kit (2023) | LTE Router | SXTR&FG621-EA, LTE 300Mb/s, 2x RJ45 100Mb/s, 1x miniPCI-e, 2x SIM
![](https://www.batna24.com/img2/1000/334052_167745.webp?20989284238)
EN
MikroTik RouterBoard SXT LTE6 2023 kit is an upgraded version of the SXT LTE kit with a new FG621-EA module. It has a built-in 2G/3G/4G/LTE modem with a maximum transmission speed of 300 Mbps for downloading data and 50 Mbps for uploading data.
The device is equipped with two Ethernet ports (the second port has a PoE-out function), so it can be used to power another device. It also has two Micro SIM slots for a backup link. The device comes with a 24-volt power supply, but can support the full 18-57-volt range and is 802.3af/at compliant.

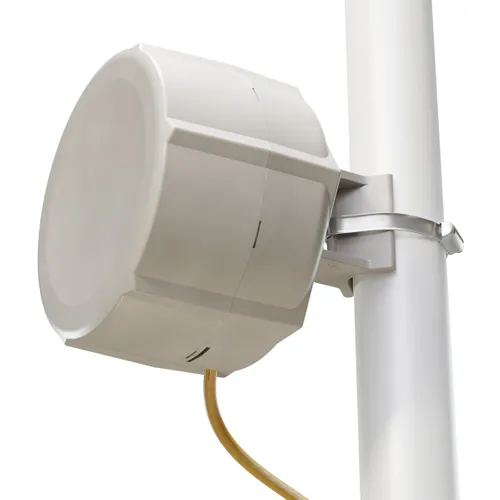

Mikrotik LTE cat.6 also features carrier aggregation and allows the device to use multiple bands simultaneously. This is a big advantage when there are many LTE users in the area. It provides better response in crowded environments and higher performance for weaker signals in rural areas. The SXT LTE6 can be powered via passive PoE or 802.3 af/at compliant. The kit includes a 24V DC power supply and PoE injector. The device is equipped with a QCA9531 processor clocked at 650 MHz and 64 MB of RAM. Can be mounted on the wall with quickMount Extra bracket.
Features / filters | |
2G bands supported | 850,900,1800,2100 |
3G bands supported | 850,900,1800,2100 |
4G bands supported | 700,800,850,900,1800,1900,2100,2600 |
4G standard | LTE |
Built-in processor | Yes |
Certification | CE, EAC, ROHS |
Data network | 3G, 4G, LTE |
Device type | Cellular network modem/router |
Ethernet LAN | Yes |
Ethernet LAN (RJ-45) ports | 2 |
Input voltage | 12 - 57 |
Internal storage capacity | 0.016 |

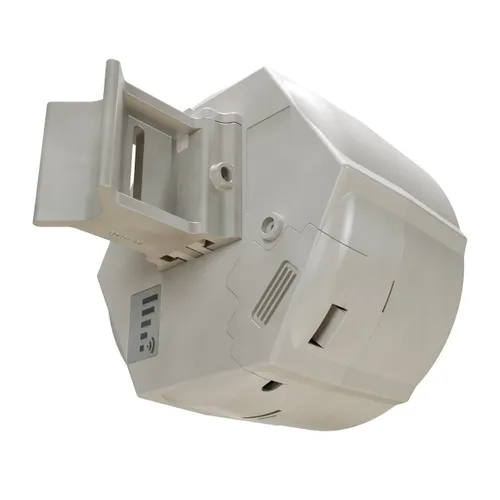

Mounting | Wall mounting |
Number of SIM cards | 2 |
Power consumption (typical) | 22 |
Power source type | DC, PoE |
Processor frequency | 0.65 |
Processor manufacturer | Qualcomm |
Processor model | QCA9531 |
Product colour | White |
RAM capacity | 0.064 |
SIM card type | MicroSIM |
Wi-Fi | No |
Basic technical parameters: | |
Product code | SXTR |
Architecture | MIPSBE |
CPU | QCA9531 |
Number of processor cores | 1 |
Nominal processor frequency | 650 MHz |
Licence level | 3 |
RAM size | 64 MB |
Storage size | 16 MB |
Type of storage | FLASH |
Tested ambient temperature | From -30 ° C to 60 ° C |
PoE in | 802.3af/at |
PoE at the input Voltage | 12-57 V. |
PoE out | Passive PoE up to 57 V. |
PoE-out ports | Ether2 |
Number of DC inputs | 1 (PoE-IN) |
Maximum output per port (input 30-57 V) | 400 mA |
Maximum output per port (input 18-30 V) | 600 mA |
Maximum output (A) | 600 mA |
3G category | R8 (downlink 42.2 Mb / s, uplink 5.76 Mb / s) |
LTE category | 6 (sending link 300 Mb / s, sending link 50 Mb / s) |
LTE FDD Bands | 5 (850MHz) / 7 (2600MHz) / 8 (900MHz) / 20 (800MHz) / 1 (2100MHz) / 3 (1800MHz) / 28 (700MHz). |
LTE TDD bands | 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) |
3G bands | 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) / 1 (2100MHz). |
10/100 Ethernet Ports | 2x rj45 |

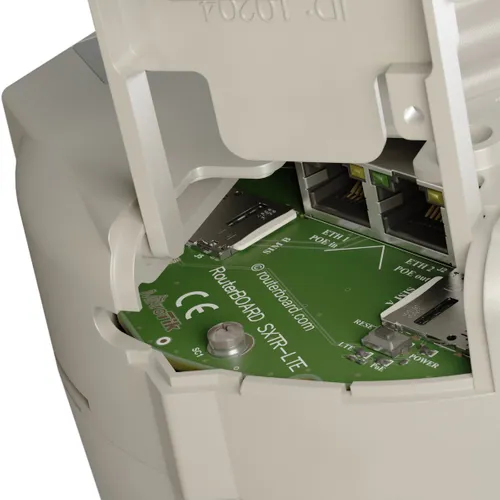

Number of SIM slots | 2 modem (Micro SIM) |
MiniPCI-e slots | 1x |
Mode button | thus |
Case law | CE / RED, EAC, ROHS |
