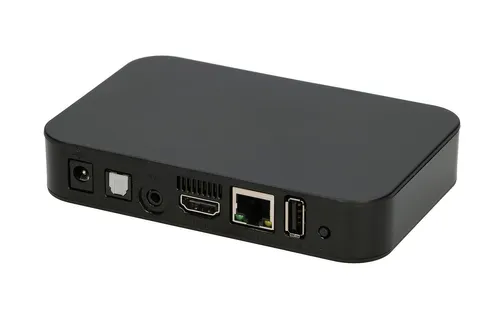

Infomir MAG322W1 is efficient decoder with dual core processor based on BCM75839 chips et and 512 MB RAM. It is the optimal solution to run IPTV/OTT project in the shortest possible time. This decoder fully meets the current market requirements. You can enjoy high quality video and audio with HDMI 1.4b and S/PDIF outputs. And HEVC support will greatly reduce the network load.
Infomir MAG322w1 is a great decoder and a unique open platform. You can modify the decoder software yourself and integrate it with other middleware. This model has built-in Wi-Fi 802.11 b/g/n. Users can connect to the Internet without any additional devices.
| Basic general data | |
| Manufacturer | Infomir |
| Model | MAG322W1 |
| Type | IPTV Set Top Box |
| Physical parameters | |
| Dimensions | 132 mm x 87 mm x 26 mm |
| Weight | 144 g |
| Hardware | |
| Chipset | BCM75839 |
| Processor | Dual-core MIPS 4KE 750 MHz processor |
| Performance | 2000 DMIPS |
| RAM | 512 MB |
| Flash Memory | 512 MB |
| Software | |
| Operating system | Linux 3.3 |
| Embedded media portal with IPTV functionality based on WebKit HTTP 1.1, HTML 4.01 XHTML 1.0/1.1; DOM 1, 2, 3, CSS 1, 2, 3; XML 1.0, XSLT 1.0, XPath 1.0 ; SOAP 1.1; JavaScript ECMA-262, revision 5; Media JavaScript API; C-layer SDK | |
| Supported middleware | Ministra TV platform version 5.2.0 or higher |
| External interfaces | |
| Optical S/PDIF Audio Out (Optional), HDMI 1.4, Composite Stereo A/V Out, 100Mbps Ethernet, USB 2.0x2, Wi-Fi b/g/n 1x1 | |
| Media sources | |
| PC and NAS on local network Streaming media protocols (RTSP, RTP, UDP, IGMP, HTTP) USB devices | |
| Audio and video | |
| Audio codecs | MPEG-1 layer I/II/III, AAC-LC, HE-AAC v1, HE-AAC v2, Dolby Digital |
| Audio formats | MP3, MPA, M4A, Ogg, WAV |
| Video modes | 1080i, 1080p, 720p, 576p, PAL, NTSC |
| Video codecs | MPEG-1/2, MPEG-4, H.264/AVC [email protected], H.265/HEVC Main/Main10 @L4.1 up to 1080p @ 60fps (optional), XviD |
| Video containers | MKV, MPEG-TS, MPEG-PS, M2TS, VOB, AVI, MOV, MP4, ASF, QT |
| Image formats | JPEG, PNG, BMP |
| Subtitles | DVB, PGS, SRT, ASS, SUB |
| Playlist formats | M3U |
| Accessories | |

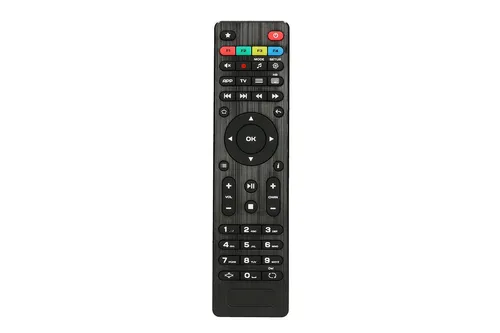

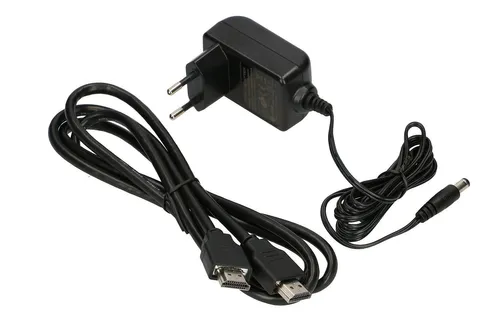

| MAG322w1 decoder, user manual, HDMI cable, 12V 1A power adapter, remote control, 2 AAA batteries, package | |
