Huawei HG8012H | ONU | 1x GPON, 1x RJ45 1000Mb/s, 1x RJ45 100Mb/s, 1x RJ11, 1x CATV
CODE: HUAWEI HG8012H APC
Contact
Account
Favorite
Cart

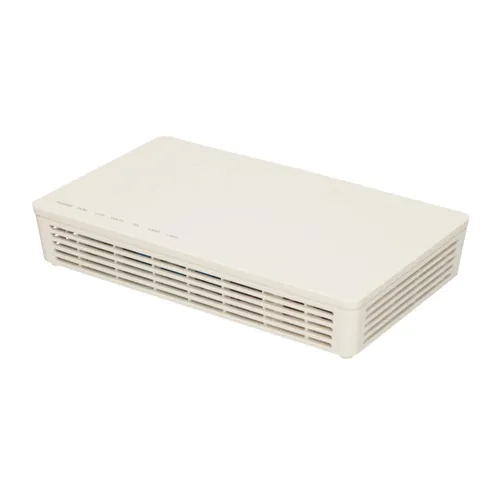

The Huawei EchoLife HG8012H is an advanced GPON OLT client terminal designed for superior performance and reliability. Equipped with a GPON port and a gigabit Ethernet port, it can transmit data at NAT speeds of up to 900 Mbps. This makes the device ideal for demanding FTTH network environments where high throughput is crucial.
The EchoLife HG8012H features remote management from OLT and OMCI support, making monitoring and configuration of the device much easier. Remote management allows for flexible and rapid response to network needs, minimizing downtime and optimizing operational efficiency.
The device supports Quality of Service (QoS) with 802.p or VLAN ID-based prioritization to ensure stable and fast connections. MAC address-based filtering capability and IPv6 support enhance security, protecting the network from unauthorized access.
The Huawei EchoLife HG8012H is also an ideal solution for CATV-enabled networks. With a built-in CATV port, the device enables the integration of TV and Internet services, providing versatility and space savings.

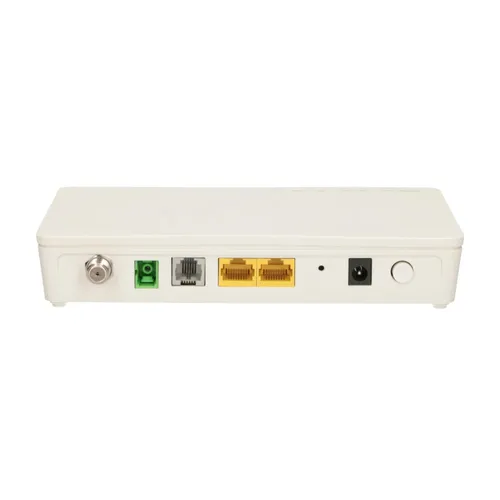

| Network interface | GPON (SC/APC) |
| User interface | Gigabit Ethernet port CATV |

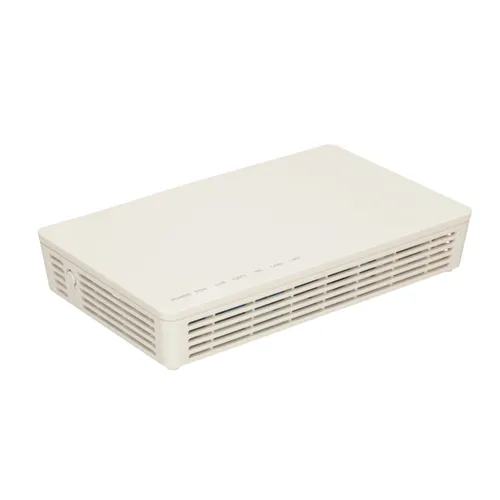

| LEDs | POWER / PON / LOS / LAN / CATV |

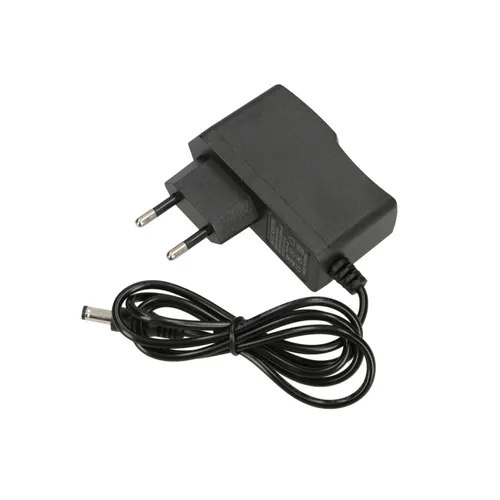

| Power supply | 11 - 14 V DC, 1A |
| Power supply input | 100 - 240 V AC 50 - 60 Hz |
| Average power consumption | 3 W |
| Maximum power consumption | 6 W |
| Dimensions | 134x115x30 mm |
| Weight | 500 g (including power supply) |
| Permissible operating temperature | From 0 to 40 degrees C |
| Permissible humidity | 5%-95% RH non-condensing |
| GPON port | Class B Receive sensitivity: -27 dBm Wavelength: 1310 nm upstream, 1490 nm downstream Wavelength blocking filter (WBF) Flexible mapping between GEM and TCONT ports Authentication with SN or password, G.984.3 Two-way FEC SR-DBA and NSR-DBA |
| Ethernet port | Port-based VLAN tags Transparent transmission of 1:1 VLAN, N:1 VLAN or VLANs QinQ VLAN MAC address learning Port-based local switching/isolation Layer2 transparent transmission of IPv6 packets |
| CATV port | Width 54 - 870 MHz Output resistance: 75 Ohm |
| QoS function | Limit set on port 802.1p prioritization SP / WRR / SP WRR Broadcast packet limit Flow mapping based on VLAN ID, port ID or 802.1p |
| Multicast | IGMP v2/v3 snooping MLD v1/v2 snooping Fast leave VLAN tag translation, transparent transmission, downstream multicast packet removal IGMP/MLD protocol packet limit |
| Management | OMCI news Active / passive ONT rogue detecion function PPPoE / DHCP simulation testing OMCI / WEB UI Software backup and rollback 802.1ag Ethernet OAM Optical link measurement and diagnostics Loopback verification |
| Security | MAC address filtering DOS protection |
| Energy saving | Energy efficient diodes Reduction of power consumption of unused components COCV4 |
