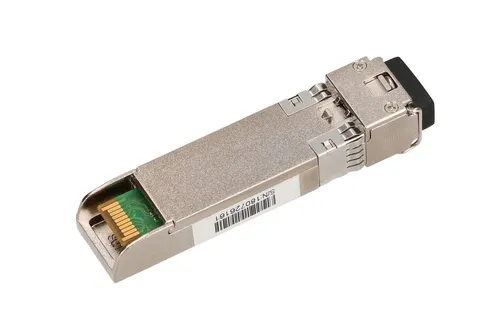

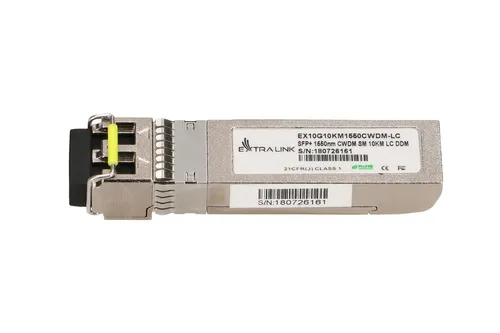

Extralink SFP+ 10G | SFP+ CWDM Module | 10Gbps, 1550nm, single mode, 10km, LC, DOM
CODE: EX.13698 / EAN: 5903148913698
![](https://www.batna24.com/img2/1000/326113_1.webp?20989284238)
EN
EXTRALINK SFP 10G CWDM insert is designed for reliable fiber optic transmission at 10 Gbps over distances up to 10km. It transmits data using two single-mode optical fibers at a wavelength of 1550nm. A DDM diagnostic interface has been built into the module, allowing real-time monitoring of the module's operating parameters. The module is compatible with most devices available on the market equipped with SFP ports .
Features / filters | |
Output connector | LC |
SFP module - port speed | 10 Gbps |
Transmission distance | 4-20km |
Coarse Wavelength Division Multiplexing (CWDM) | Yes |
Digital Diagnostics Monitoring (DDM) | Yes |
Easy to install | Yes |
Fiber optic connector | LC |
Fiber type | SM (Single-Mode) |
Housing material | Metal |
Interface type | SFP+ |
Manual | No |
Maximum data transfer rate | 10000 |
Maximum transfer distance | 20000 |
Multi-mode fiber (MMF) supported | No |
Number of products included | 1 |
Product colour | Stainless steel |
SFP transceiver type | Fiber optic |
Single-mode fiber (SMF) supported | Yes |
Sustainability certificates | CE, RoHS |
Type of SFP duplex | Wavy (WDM) |
User guide | No |
Wavelength | 1550 nm, 1550, |
Wavelength-division multiplexing (WDM) | No |
