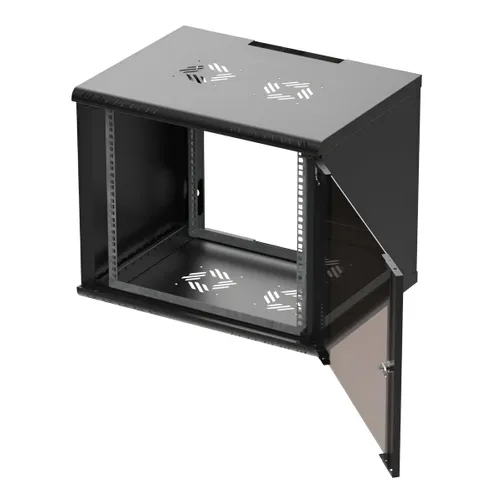

Extralink Premium 9U 600x450 Black | Rack cabinet | tool-free mounting, wall-mounted
![](https://www.batna24.com/img2/1000/334658_169814.webp?20989284238)
EN
The Extralink Premium Hanging Rack Server Cabinet is an ideal solution to facilitate the organization of IT equipment, especially for customers looking for a reliable and flexible solution for their projects. It easily adapts to a wide variety of requirements, thanks to its adjustable RACK rails, tool-less mounting and ventilation configuration options. Its sturdy DC01 powder-coated steel construction guarantees durability and safety for stored equipment. In addition, a sleek glass door with a high-quality lock not only facilitates access, but also adds a professional look to any installation. Choosing an Extralink Premium Rack cabinet is an investment in efficiency, security and aesthetics, meeting the needs of modern network installations.
Extralink Premium Rack Server Cabinet is designed in accordance with the 19" RACK standard. The structure is made of DC01 sheet metal, which has been further strengthened by powder coating, ensuring durability and resistance to damage.
This cabinet is characterized by tool-free assembly thanks to the use of removable latches. This makes the structure easy to assemble and disassemble. Full access to the interior during the installation of equipment is possible thanks to the removable housing, which significantly simplifies the work.
The cabinet features brush grommets, which allow for easy installation into the cabinet directly along the wall. The cabinet has the ability to mount up to four 120mm fans (2 at the top and 2 at the bottom), which, combined with additional ventilation elements, ensures efficient heat dissipation.

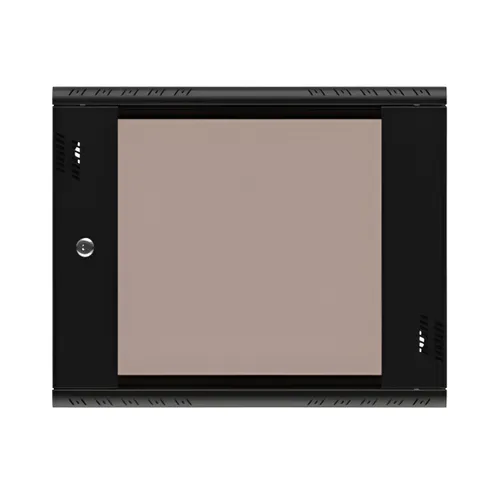

The front door of the Extralink Premium cabinet is glazed, allowing easy visualization of the contents. Thanks to the use of a spring hinge, the door can be mounted on both the left and right sides. A proprietary premium lock provides additional security.
The cabinet offers adjustable mounting of both RACK rails in 30mm incre ments throughout its depth, increasing its versatility. Notches in the frame facilitate ergonomic rail mounting, which is important for configurations with different types of equipment.
The cabinet is designed for wall mounting, with holes for easy hanging and tightening of the frame. It is available in black or gray, different heights: 4U, 6U, 9U or 12U, and depths of 450 or 600 mm. The maximum load the cabinet can support is 70 kg, making it suitable for storing various types of network and server equipment.
Technical data | |
Colour | Black |
Material | DC01 (cold-rolled black steel) |
External dimensions | 600 x 450 x 489 mm (W x D x H) |
Sheet thickness | 0.6-1.5 mm |
Load | 75 kg |
Net weight | 14.3 kg |
Application | Inside |
Equipment | Installation kit |
Maximum depth of mountable device | 400 mm |
