LUNA 1 GE is a fiber optic clientele operating in EPON technology, which is used in broadband networks. It is used in FTTH/FTTO to provide data and video services based on the EPON network.
EPON is the latest generation of access network technology operating in the IEEE802.3ah protocol standard. Compared to other passive optical network standards, it is distinguished by greater bandwidth and higher performance, thanks to the use of larger packets of variable length. EPON offers efficient user traffic management, with frame segmentation, enabling higher quality of service (QOS) for delay-sensitive voice or video communications.
Efficient EPON networks provide reliable services for businesses and individuals. Implementing Fiber To The Home (FTTH) networks and using EPON is extremely cost-effective.
LUNA 1 GE is a device equipped with one GE port. The LUNA client terminal is a high-performance equipment with high traffic forwarding capabilities, thus providing an excellent experience when using Internet services or HD video. It provides ideal service solutions and features supporting the development of PON fiber optic networks. The device is compatible with OLT systems of other manufacturers, such as Huawei/ZTE/Fiberhome/Alcatel-Lucen.
| Interface | |
| PON Port | 1 EPC optical interface Standard 1000 BASE-PX20+ Symmetrical 1.25 Gbps upstream/downstream Single-mode SC-fibre The division coefficient: 1:64 Transmission distance 20 km |
| Ethernet (LAN) port | 1 GE Auto-negotiation RJ45 port Full Duplex/Half-Duplex RJ45, Auto-MDI/MDI-X Transmission distance 100 m |
| Power port | 12 V DC input |
| Management | |
| Network management | Support for IEEE802.3 QAM, ONU can be remotely managed by OLT Support for remote management via SNMP and Telnet Local governance |
| Management functions | Status monitor, configuration management, alarm management, log management |
| Environmental specification | |
| Case | Plastic |

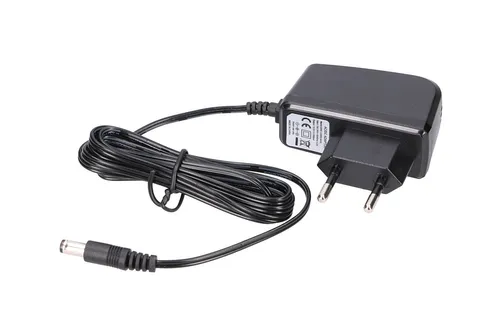

| Power supply | External 12 V AC/DC power supply 0.5 A Electricity consumption: < 3 W |
| Dimensions | 110 mm (length) x 70 mm (width) x 30 mm (height) |
| Weight | 0.1 kg |
| Environmental conditions | Operating temperature: 0°C~50°C Storage temperature: -40°C~85°C Working humidity: 10%~90%, non-condensing Storage humidity: 5%~95, non-condensing |
