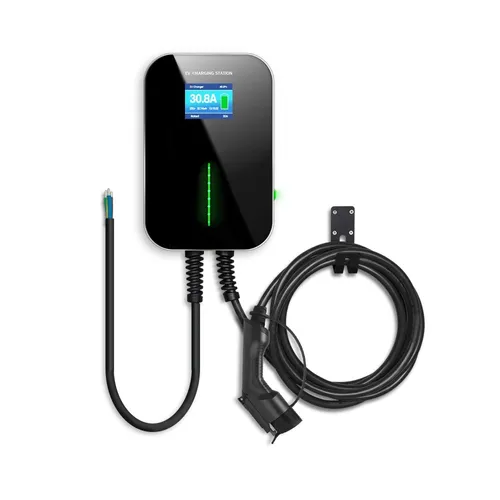

Extralink BS20-BC-22kW-APP Type 2 32A 22kW | Electric car charger | 3 phase, LCD screen, APP, 6,1m
![](https://www.batna24.com/img2/1000/333501_164102.webp?20989284238)
EN
Introducing the perfect solution for charging electric vehicles at home - our Extralink wall-mounted EV charger. With a powerful 3-phase power of 22kW, this charger provides fast and efficient charging so you can get back on the road in no time. It is easy to install, stable in operation and has a complete protection mechanism. The LCD display can show detailed charging status. It is designed for home use, making it ideal for EV owners who want to charge their cars overnight or during off-peak hours.
Equipped with a sleek LCD display, our EV charger provides real-time information on the status of charging, including time remaining to full charge.
The product is equipped with RCD type A 6mA residual current protection, which meets the latest EU safety standards.
Monitor the operating temperature of the charger at all times. When the charger exceeds the safe temperature, it will stop working immediately, and the charging system can be automatically resumed when the temperature returns to normal.
The smart chip can automatically fix common charging errors to ensure stable operation.
The product has passed all relevant certifications in Europe and North America, ensuring that the product can be sold and used with complete confidence.
The installation process is simple and efficient, with an estimated time of 10-15 minutes.
Features / filters | |
AC input frequency | 47~63 |
AC input voltage | 100 / 250 / 380 |
Bluetooth | Yes |
Built-in display | Yes |
Certification | CE, FCC, ROHS, CCC, CSA, IK10, IP66 |
Charging cable length | 6.2 |
Charging voltage | 100 / 250 / 380 |
Display type | LCD |
International Protection (IP) code | IP66 |

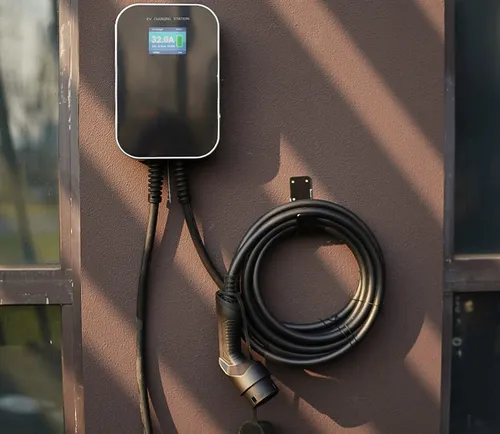

Mounting type | Wall |
Number of phases | 3 |
On/off switch | Yes |
Operating relative humidity (H-H) | 0 - 95 |
Operating temperature (T-T) | -40 - 80 |
Output current | 32 |
Output power | 22 |
Power plug | Type 2 |
Product colour | Black |
Suitable for | Outdoor |
Touchscreen | No |
Electrical specification | |
Input voltage/output voltage | 100V /250V /380V (three phases) |
Input frequency | 47~63Hz |
Max. output power | 7.6kW/22kW (three phases) |
Max. output current | 32A |
Type of charging interface | IEC 62196-2, SAE J1772 |

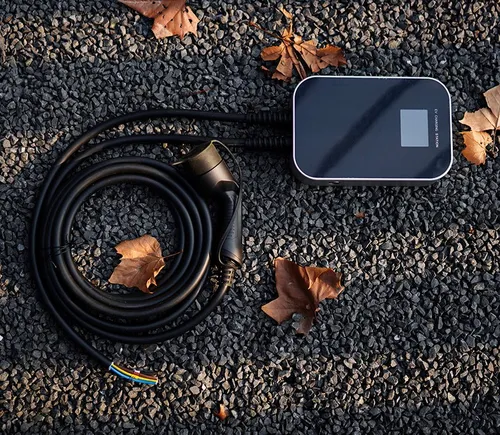

Cable | Type 2 6,1 m |
Features and accessories | |
Bluetooth | Yes |
LCD | 3.5-inch color display |
RCD | Type A / Type A 6mA |
LED indicator light | Yes |
Intelligent power control | Yes |
RFID | No |

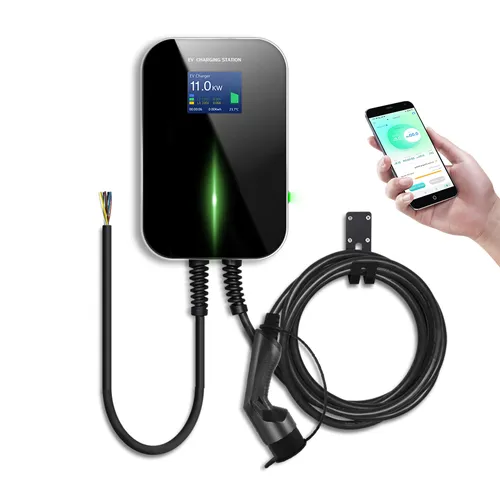

Application | Yes |
Work environment | |
Degree of protection | IP66 |
Ambient temperature | -40°C ~ 80°C |
Relative humidity | 0-95% non-condensing |
Maximum height | <2000m |
Cooling | Natural air cooling |
Standby power consumption | <8W |
Certification | |
Certificates | CE, FCC, ROHS, CCC, CSA, IK10, IP66 |
