RF Elements TP-ADAPTOR-RM5-S V2 | TwistPort Adaptor | shielded, dedicated for Ubiquiti Rocket M5

CODE: TP-ADAPTOR-RM5-S-V2 / EAN: 8592457161295

RF Elements TP-ADAPTOR-RM5-S V2 | TwistPort Adaptor | shielded, dedicated for Ubiquiti Rocket M5

CODE: TP-ADAPTOR-RM5-S-V2 / EAN: 8592457161295
26,26 GBP without VAT (net)
Compatible with brand: Ubiquiti
Show more parameters

About product

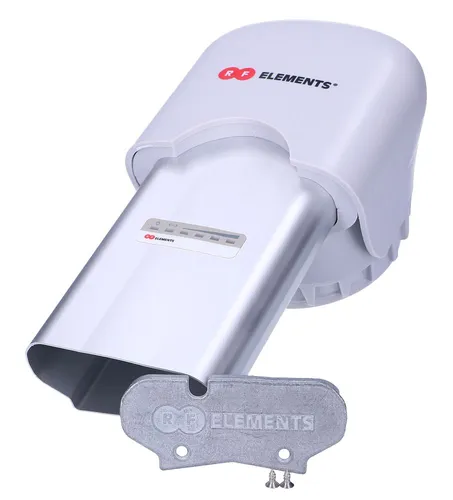

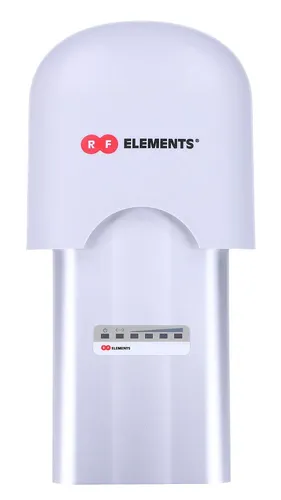

TwistPort Shielded Adaptor for Rocket M5

The TwistPort V2 Shielded Adapter for Rocket M5 makes compatible with all TwistPort antennas. The TwistPort adapters are equipped with an original waveguide port with a quick-locking mechanism.

Comfort of use

Connecting and disconnecting the Rocket M5 to the TwistPort Adapter V2 is very easy and requires no tools.

Specification

Features / filters
Compatible with brand Ubiquiti

Technical data

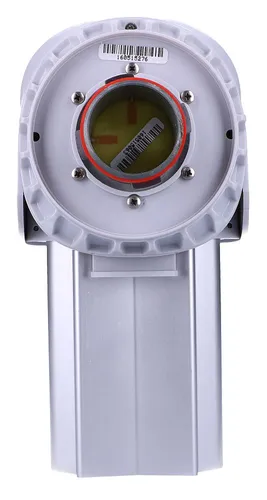

Antenna connection TwistPort - fast blocking waveguide port

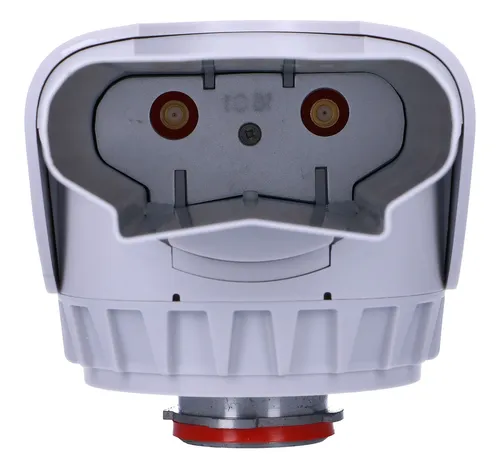

Radio connection 2 RP-SMA extension slide
Materials Insert - aluminium alloy
Shield - zinc-aluminium alloy
Adaptor - UV and weather resistant ABS plastic
Resistance to temperature From -40°C to 60°C
Wind resistance 160 km/h
Weight Single unit - 0.5 kg
Single unit per package - 0,7 kg
Carton (20 pieces) - 15 kg
Dimensions Single retail pack: 24,3 × 11,7 × 11,7 cm
Carton (20 pieces): 62 × 25 × 52 cm
Compatible wireless platforms RF Elements - any TwistPort antenna
Ubiquiti Networks - Rocket™ M5
Performance
Frequency range 5180 - 6400 MHz
Polarisation Dual line H + V
Maximum standing waveform factor 1,8
Resistance 50 Ohm

Support

Datasheet - ENG Download

Faq

What is a quick locking mechanism?

Quick locking mechanism.
