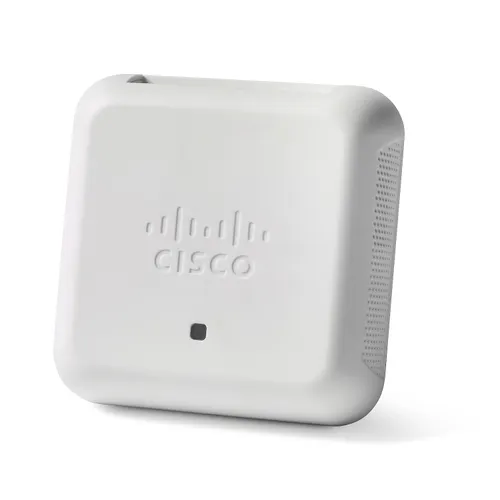

Cisco WAP150 | Access point | Dual Band, AC1200, 1x RJ45 1Gb/s, PoE
![](https://www.batna24.com/img2/1000/327955_1.webp?20989284238)
EN
WAP150 Cisco means high-performance, easy to implement and highly secure business-class wireless connectivity with 802.11ac technology.
In today's dynamic business environment, employees are more mobile and the company's work depends on cloud-based applications such as Office 365 or Gmail, so in order to maintain productivity, you need a reliable and fast wireless network that allows you to access your most important applications without delay.
Cisco WAP150 Wireless-AC/N Dual Radio Access Point provides an easy to configure, economical and secure wireless network. This flexible solution provides network access to a large number of employees and can be scaled according to changing business needs.
The access point WAP150 uses a dual-band radio to improve coverage on mobile devices. The Gigabit Ethernet LAN interfaces with Power over Ethernet (PoE) make installation easier and significantly reduce cabling costs, and the intelligent quality of service features (QoS) allow high-bandwidth traffic to be prioritized for Voice over IP (VoIP) and video applications.
To provide users with highly secure Wi-Fi access, WAP150 access points support captive portal with multiple authentication options and rights, roles and bandwidth configuration. The guest login page allows for the presentation of the welcome message and access details and enhances brand recognition with the company logo.
.
The reliability and protection of confidential business information in WAP150 access points is provided by support for both Wi-Fi Protected Access (WPA) Personal and Enterprise, which encode all wireless transmissions using powerful encryption. The 802.1X RADIUS authentication protects against unauthorized access. Access point WAP150 is also integrated with Cisco Umbrella and protects users and visitors from Internet threats such as malware.
- Simultaneous dual-band radio support up to 867 Mbps on 5 GHz radio and 300 Mbps on 2.4 GHz radio increasing network capacity and range
- Single Point Setup simplifies the deployment and management of multiple access points without the need for additional hardware
- Gigabit Ethernet LAN interface for fast wired network connection
- Robust security measures, including WPA2, 802.1X with secure RADIUS authentication, and detection of hostile access points to help protect sensitive business information
- Support for captive portal enabling very secure, customized access to the network by configuring appropriate rights and roles
.
- Simple installation, intuitive web-based configuration and a wizard for easy implementation and configuration in minutes
- PoE support for easy installation without additional wiring
- Support for Plug and Play for mass deployments when using FindIT
network management platform
- Aesthetic design with multiple internal antennas
- Many mounting options, e.g. on the ceiling, wall or desk
- Intelligent QoS prioritizing network traffic to keep the performance of critical network applications at the highest level
- Workgroup Bridge mode for network expansion via wireless connection to a second Ethernet network
Features / filters | |
LAN standard | Gigabit Ethernet 10/100/1000 Mb/s |
Maximum wireless transmission speed | 1200 Mb/s |
Number of LAN ports | 1x 10/100/1000BaseTX (RJ45) |
Operating frequency | Dual Band (2.4GHz, 5GHz) |
Wireless network standards | IEEE 802.11ac, IEEE 802.11n, |
2.4 GHz | Yes |
5 GHz | Yes |
Antenna gain | Under 10dbi |
Antenna type | Integrated, Internal, |
Application | Indoor |
Automatic channel selection | Yes |
Cable lock slot | Yes |
Cable lock slot type | Kensington |
Depth | 38 |
DHCP client | Yes |
Ethernet LAN data rates | 10,100,1000 |
Firmware upgradeable | Yes |
Height | 135 |
Internal | Yes |
LED indicators | Yes |
Maximum data transfer rate | 1200 |
MIMO Type | 2x2 |
Networking standards | IEEE 802.11ac,IEEE 802.11b,IEEE 802.11e,IEEE 802.11g,IEEE 802.11i,IEEE 802.11n,IEEE 802.1Q,IEEE 802.1x,IEEE 802.3af,IEEE 802.3u |
Number of users | 64 |
Operating temperature (T-T) | 0 - 40 |
Placement | Table, Wall |
Power over Ethernet (PoE) | Yes |
Quality of Service (QoS) support | Yes |
Security algorithms | HTTPS,SSID,WPA,WPA2 |
Service Set Identifier (SSID) features | SSID broadcast on/off |
Storage relative humidity (H-H) | 5 - 90 |
Storage temperature (T-T) | -20 - 70 |
Type of device power supply | PoE 802.3af/at, Power supply, |
VLAN support | Yes |
Weight | 350 |
Width | 135 |
Technical Specification | |
Cabling | Category 5e or higher |
Standards | IEEE 802.11ac, 802.11n, 802.11g, 802.11b, 802.3af/at, 802.3u, 802.1X (secure authentication), 802.1Q (VLAN), 802.1D (Spanning Tree), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460) |
Antennas | Interior antennas optimized for wall or ceiling installation |
Operating system | Linux |
Physical Interfaces | |

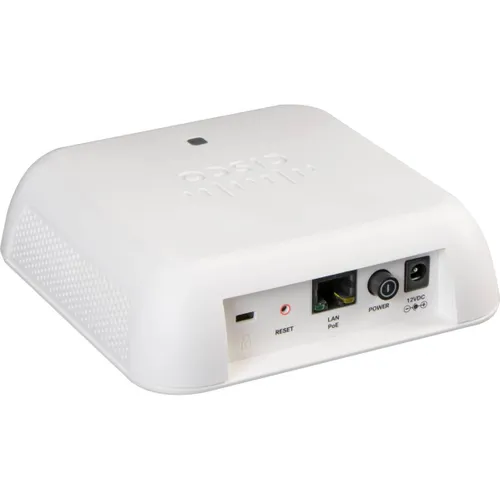

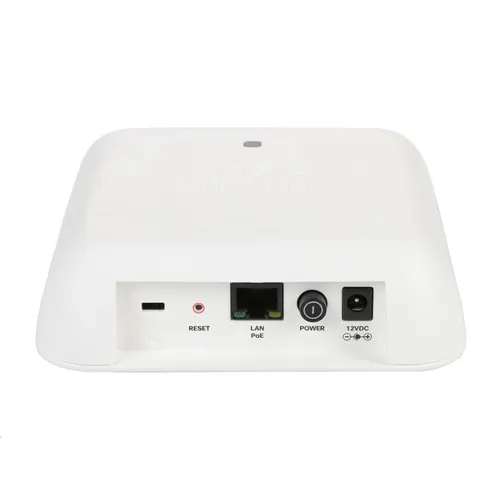

Ports | 1 x 10/100/1000 Ethernet, with 802.3af/at PoE support, power port for AC adapter (included) |
Power supply | 802.3af/at PoE or external power supply unit |
Buttons | Reset button, on/off button |
Lockout socket | Kensington Castle Nest |
LEDs | One multifunctional LED |
Physical specification | |
Physical dimensions (W x D x H) | 135 mm x 135 mm x 38 mm |
Weight | 350 g |
Network capacities | |
VLAN support | Yes |
Number of VLANs | 1 VLAN manager plus 8 VLANs for SSIDs |
802.1X supplicant | Yes |
SSID-to-VLAN mapping | Yes |
Automatic channel selection | Yes |
Spanning Tree | Yes |
Load balancing | Yes |
IPv6 | Yes IPv6 host support IPv6 RADIUS, syslog, NTP protocol |
Layer 2 | VLANs based on 802.1Q, 8 active VLANs plus 1 VLAN to manage |
Security | |
WPA, WPA2 | Yes, including Enterprise authentication |
Access control | Yes, access control list (ACL), MAC ACL |
Safe management | HTTPS |
SSID broadcast | Yes |
Detection of hostile access points | Yes |
Installation and physical safety | |
Many mounting options | Wall, ceiling or desk mounting |
Quality of Service | |
QoS | Wi-Fi traffic and multimedia specification (WMM TSPEC), QoS client |
Performance | |
Wireless network bandwidth | Data transfer rate up to 1.2 Gb/s (actual throughput may vary) |
Number of users | Up to 64 connected users, 10 active users per radio |
Managing multiple access points | |
Single Point Setup | Yes |
Number of access points per cluster | 4 |
Active clients per cluster | 120 |
Configuration | |
User interface | Built-in web user interface for easy configuration in the browser (HTTP, HTTPS) |
Management | |
Management protocols | Web browser, SNMP (Simple Network Management Protocol) v3, Bonjour |
Remote management | Yes |
Recording of events | Local, remote syslog, e-mail alerts |
Network diagnostics | Registration and interception of packages |
Firmware update | Firmware update via web browser, imported or exported configuration file |
Dynamic Host Configuration Protocol (DHCP) | DHCP client |
IPv6 host | Yes |
Wireless network | |
Frequency | 2.4 GHz and 5 GHz |
Type of radio and modulation | Dual radio link, orthogonal frequency division (OFDM) IEEE 802.11a/n: OFDM (BPSK, QPSK, 16 QAM, 64 QAM) IEEE 802.11ac: OFDM (BPSK, QPSK, 16 QAM, 64 QAM, 256 QAM) |
WLAN | 802.11n/ac 2x2 MIMO with 2 streams at 5 GHz 2x2 MIMO with 2 streams at 2.4 GHz Channels 20, 40 and 80 MHz for 802.11ac. 20 and 40 MHz for 802.11n PHY data rate up to 1.2 Gbps 802.11 Dynamic frequency selection (DFS) |
Supported data rates | 802.11a/b/g: 54, 48, 36, 24, 18, 12, 9, 6, 11, 5.5, 2 and 1 Mbps. 802.11n: 6.5 to 300 Mbps 20 MHz bandwidth: MCS 0-15 for supported data rates 40 MHz bandwidth: MCS 0-15 for supported data rates 802.11ac: 6.5 to 867 Mbps 20 MHz bandwidth: MCS 0-9 for supported data rates 40 MHz bandwidth: MCS 0-9 for supported data rates 80 MHz bandwidth: MCS 0-9 for supported data rates |
Wireless insulation | Wireless insulation between customers |
External antennas | None |
Internal antennas | Internal, fixed PiFA antenna |
Antenna reinforcement | Maximum antenna gain of 3.61 dBi at 2.4 GHz Maximum antenna gain of 3.85 dBi at 5 GHz |
Wireless Distribution System (WDS) | Yes |
Fast roaming | Yes |
Multiple SSIDs | 8 |
Wireless VLAN map | Yes |
WLAN security | Yes |
Wi-Fi Multimedia (WMM) | Yes, with automatic energy saving |
Modes of operation | |
Access point | Access point mode, WDS bridge mode, work group bridge mode |
Environmental | |
Power options | IEEE 802.3af/at Ethernet switch PoE Cisco Injector: SB-PWR-INJ2-xx Cisco power supply unit - SB-PWR-12V/1.5A (included) PoE peak power: 9.5 W |
Compatibility | Security: UL 60950-1 CAN/CSA-C22.2 No. 60950-1 IEC 60950-1 EN 60950-1 Radio authorisations: ● FCC Part 15.247, 15.407 ● RSS-210 (Canada) EN 300.328, EN 301.893 (Europe) ● AS/NZS 4268.2003 (Australia and New Zealand) EMI and sensitivity (Class B): ● FCC Part 15.107 and 15.109 ● ICES-003 (Canada) EN 301.489-1 and -17 (Europe) |
Operating temperature | 0°C to 40°C |
Storage temperature | -20°C to 70°C |
Moisture | 10% to 85%, non-condensing |
Storage humidity | 5% to 90%, non-condensing |
System memory | 256 MB RAM 128 MB flash |
Package contents | WAP150 - wall mounted access point ● Ceiling and wall mounting kit Quick Start Guide Ethernet network cable |
