Cisco SPA122 | VoIP Gateway | 2x RJ11, 1x RJ45, CISCO Official partner
![](https://www.batna24.com/img2/1000/326353_1.webp?20989284238)
EN

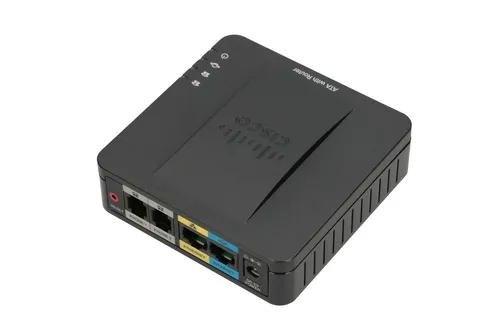

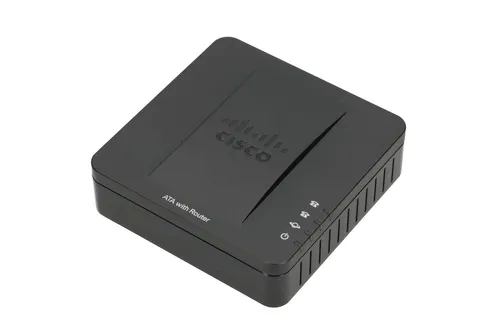

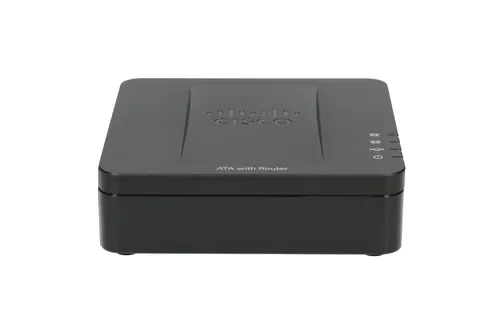

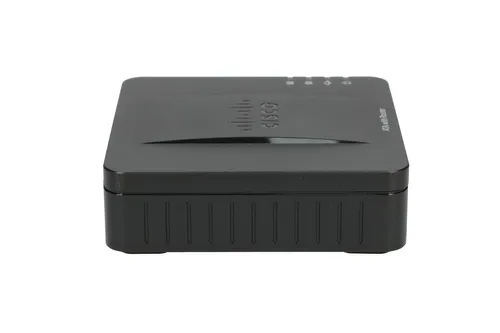

Cisco SPA122 ATA with a router connects VoIP services with an internal router to connect to the LAN network. Easy to install and operate. Works over IP network to connect analog phones and faxes to VoIP provider and provides support for additional LAN connections.
Cisco SPA122 includes two standard telephone ports for connecting existing analogue phones or faxes to the VoIP provider. It also contains two Ethernet 100BASE-T RJ-45 ports for connection to WAN and LAN. Each telephone line can be configured independently. With the Cisco SPA122, users can protect and expand their investments in existing analog phones, conference phones, handsfree and faxes, and control IP voice migration with an extremely affordable, reliable solution.
Compact design and compliance with international standards for voice and data transmission. Cisco SPA122 can be used with VoIP services for households, home offices and small businesses, including fully functional hosted or open source PBX environments. This easy-to-use solution provides advanced features for better employee and customer connectivity, all within the highly secure Cisco network.
Excellent voice quality in demanding, variable IP network environments is possible thanks to advanced implementation of standard voice encoding algorithms. Cisco SPA122 works with ordinary telephone devices such as fax, voice mail, PBXs and key telephone systems (KTS) and interactive voice response systems.
Features / filters | |
Call waiting | Yes |
Caller ID | Yes |
Conference call | Yes |
DHCP client | Yes |
DHCP server | Yes |
Dimensions (WxDxH) | 101 x 28 x 101 |
Ethernet LAN (RJ-45) ports | 2 |
Fax compatibility | T.38 |
LED indicators | Yes |
MAC address filtering | Yes |
Modem (RJ-11) ports | 2 |
Noise reduction | Yes |
Operating relative humidity (H-H) | 10 - 90 |
Operating temperature (T-T) | 0 - 45 |
Output current | 2 |
Output voltage | 5 |
Power consumption (typical) | 5 |
Power LED | Yes |
Quality of Service (QoS) support | Yes |
Reset button | Yes |
Storage relative humidity (H-H) | 10 - 90 |
Storage temperature (T-T) | -25 - 70 |
Supported network protocols | PPoE, ICMP, UDP, TCP, RTP, RTCP |
Voice codecs | G.711,G.726,G.729A |
Weight | 153 |
Equipment features | |

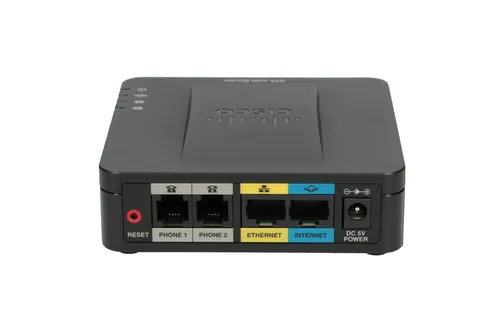

Interfaces | 1 WAN 100BASE-T RJ-45 Ethernet Port (IEEE 802.3) 1 LAN 100BASE-T RJ-45 Ethernet Port (IEEE 802.3) 2 RJ-11 Reset button |
Protocols / network standards | IEEE 802.3 (MAC address) IPv4 upgradeable to IPv6 ARP DNS DHCP client and server PPoE Client ICMP TCP UDP RTP RTCP DiffServ and ToS IEEE 802.1p (VLAN tagging) SNTP VPN pass-through (IPsec ESP, PPTP and L2TP) |
Codecs | G.711 (A-law and u-law) G.726 (32 kb/s) G.729 A |
Safeguards | Password-protected reset settings and access to user / admin accounts Built-in HTTPS certificate HTTP authentication using MD5 encryption 256-bit AES encryption TLS |
Certificates | FCC CE ICES-003 A-Tick RoHS UL |
Functions | Fax handling (T38G protocol) Displaying the caller number Voice activity detection Caller ID Blocking the caller number Pending calls Playing music to the person waiting for a call ("playing on hold") Call forwarding Do not disturbed Call transfer Conference for 3 users (3PTY) |

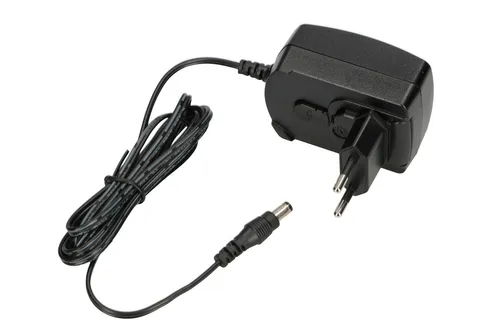

Power supply | DC: 5 V DC / 2 A Power supply: 100 - 240 V / 50 - 60 Hz (supplied) |
Maximum power consumption | 5 W |
LEDs | Phone 1, phone 2, internet, power supply |
Dimensions | 101x101x28 mm |
Weight | 153 g |
Permissible operating temperature | 0 to 45 degrees C |
Permissible storage temperature | From -25 to 70 degrees C |
Permissible air humidity | 10%-90% non-condensing |
Permissible storage humidity | 10%-90% non-condensing |
Package contents | Cisco SPA122 5 V / 2 A power supply Ethernet cable (1.83 m) Manual |
