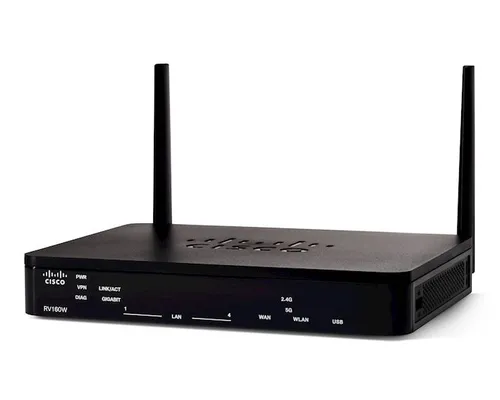

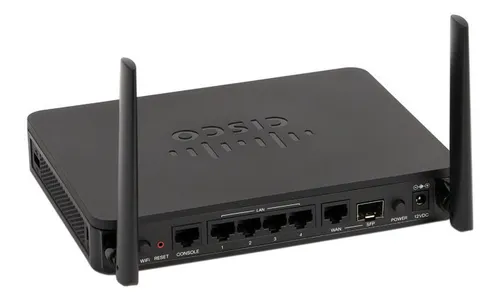

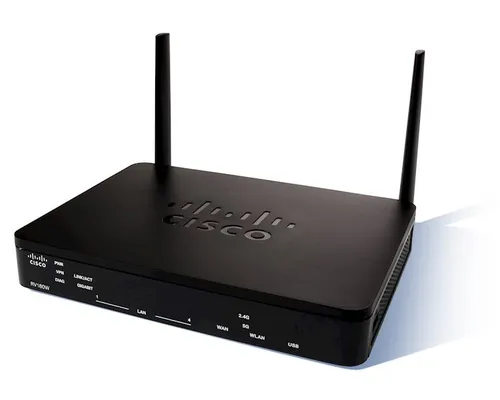

Cisco RV160W-E-K9-G5 is a business-class router that complements the series of devices dedicated to small businesses. This router is equipped with 10/100/1000Base-T(X) cabling technology that ensures data transfer speed of 1000Mbps. Cisco RV160W-E-K9-G5 is also equipped with 4 Ethernet LAN ports (RJ-45), 1 USB type 2.0 port, one WAN port (RJ45 WAN port or SFP) and DC output socket. And the router has Dual Band WiFi (2.4GHz and 5GHz)
The Cisco RV160W is an excellent choice for businesses that need a combination of performance, security, reliability, and flexibility. With a single Gigabit Ethernet WAN port, as well as 3G / 4G connectivity, you can connect to multiple service providers for a powerful load-balancing network. And with a proven SPI firewall and hardware encryption, you are assured of business-class security.
With an intuitive browser-based device manager and setup wizard, it only takes a few minutes to set up the device to your needs. The product also manages large files with ease, keeping your employees productive at the same high level.
Your business and its employees are vulnerable to phishing, keyloggers, spyware, drive-by malware and other online threats. With new models with web filtering, you can protect your employees and users from unwanted content. You'll eliminate unwanted web traffic, increase productivity and automatically protect against malicious websites.
Network connectivity is the heart of any small business, and secure access, firewall, and high performance are the foundation of every Cisco®Small Business RV Series router. The Cisco RV160W is no exception. It features intuitive user interfaces so it's up and running in just minutes. This powerful router provides reliable, highly secure connectivity for you and your employees.
| Technical Product Data | |
| Ethernet WAN | 1 gigabit combo RJ45 SFP port |
| Ethernet LAN | 4 Gigabit Ethernet RJ45 |
| Console port | 1 RJ45 |
| Switch | Turning Power On/Off |
| Cable type | CAT5 or better |
| Led | Power, VPN, WAN, LAN, WAN/LAN - Link active and Gigabit connection; DIAG; WLAN 2.4 and 5 Ghz; |
| Operating System | Linux |
| Local area network | |
| VLAN | 16 |
| Port security | Yes, 802.1 X |
| IPv6 | Double stack, 6rd, 6in4 |
| WAN | Dynamic Host Configuration Protocol (DHCP) client, static IP address, Protocol over Local Area Network (PPPoE), PPTP, L2TP, transparent front |
| WLAN | 3x3 11ac WAVE2 |
| Security | |
| Firewall | Firewall with packet status (SPI) function FirewallPort forwarding and activation Denial of Service (DoS) prevention (DoS) |
| Access Control | IP access control lists |
| Secure Management | HTTPS, username/password complexity |
| User Privileges | Two access levels: administrator and guest |
| Network | |
| Network Protocols | Dynamic Host Configuration Protocol (DHCP) server Point-to-Point Protocol over Local Area Networks (PPPoE) PPTP tunneling protocol (point) L2TP pass-trough DNS proxy DHCP forwarding agent IGMP proxy and multicast forwarding Rapid Spanning Tree Protocol (RSTP) Dynamic Domain Name System (POP, DynDNS,3322.org-no.) Network Address Translation (NAT), Port Address Translation (PAT) One-to-One NAT Port Management Port Mirroring Software configurable DMZ to each IP LAN address Session Initiation Protocol (SIP) Layer Gateway (ALG) |
| Routing Protocols | Static routing, IGMP proxy Dynamic routing RIP v1 and v2 RIP for IPv6 (RIPng) Inter-VLAN routing |
| Network Address Translation (NAT protocol) | Port Address Translation (PAT), Network Address Translation of Ports (NAPT) Port forwarding, One-to-one NAT, VPN NATTransversal, Session Initiation (SIP), ApplicationLevel Gateway (ALG), FTP ALG |
| VPN | |
| IPSec VPN gateways | 10 IPsec tunnels |
| IPSec VPN client-gateway | 10 IPsec tunnels |
| IPSec VPN | IKEv2, GRE, Hub and Spoke are supported |
| Open VPN | Open VPN server support |
| Encryption | 3DES, AES with 128, 192 and 256 bit encryption keys |
| PPTP VPN | 10 PPTP VPN tunnels |
| VPN Pass-Through | IPSec/PPTP/Layer 2 Tunneling Protocol (L2TP) pass-through |
| Quality of service | |
| Giant Rubber Frame | Jumbo Frame support per Gigabit port-no less than 1536B |
| QoS | 802.1 p priority based on LAN ports, application priority based on WAN port 3 queues Differentiated Service Point Lock Support (DSCP) Class of Service (CoS) Bandwidth control for service priorities |
| Performance | |
| NAT throughput | 600+Mbps |
| Parallel Sessions | 15,000 |
| IPsec VPN throughput | 50+Mbps |
| Configuration | |
| Web-based user interface | Browser-based configuration (HTTP/HTTPS) |
| Manual | Web user interface, SNMP v3, Bonjour, Universal Plug and Play (UPnP) FindIT support for monitoring and management |
| Recording of Events | Local, system logs, e-mail notifications |
| Network Diagnostics | Ping, Traceroute, DNS lookup |
| Upgradeability | Software upgrades are performed via browser interface, imported/exported file, USB, Cisco FindIT |
| System Time | NTP, daylight saving time, manual input |
| Organic | |
| Power | 12VDC/2A |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
| Storage Temperature | -20° to 70°C (-4° to 158°F) |
| Operating humidity | From 10% to 85% |
| Storage Humidity | From 5% to 90% |
| Certificates | |
| Safety: | UL 60950-1 CAN/CSA-C22.2 No. 60950-1 IEC 60950-1 EN 60950-1 |
| Radio Approval: | FCC Part 15.247, 15.407 RSS-210 (Canada) EN 300.328, EN 301.893 (Europe) AS/NZS 4268.2003 (Australia and New Zealand) |
| Electromagnetic interference and susceptibility (class W): | FCC Part 15.107 and 15.109 ICES-003 (Canada) EN 301.489-1 and -17 (Europe) RV260/RV260P Rack Mounting: Class a |
Yes, of course. In the RV160W router the manufacturer has created a lot of options that can easily cope with the basic tasks of small businesses. DHCP, VPN, Vlan, routing, etc.
