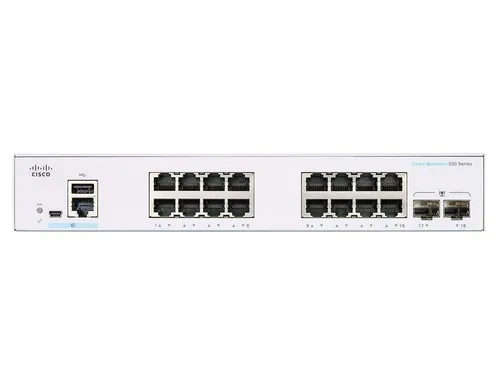

Cisco CBS350-16T-2G | Switch | 16x RJ45 1000Mb/s, 2x SFP

CODE: CBS350-16T-2G-EU / EAN: 889728293587

Cisco CBS350-16T-2G | Switch | 16x RJ45 1000Mb/s, 2x SFP

CODE: CBS350-16T-2G-EU / EAN: 889728293587
237,71 GBP without VAT (net)
Out of stock
Number of LAN ports: 16x [10/100/1000M (RJ45)] ,  2x SFP (1,25G),
10G support: Yes
Access Control List (ACL): Yes
Show more parameters

About product

Cisco Business 350 Series Managed Switches

Part of the Cisco Business line of networking solutions, the Cisco Business350 Series offers a portfolio of affordable managed switches that are a key component of any small office network. An intuitive control panel simplifies network configuration, advanced features accelerate digital transformation, and comprehensive security protects critical business operations. The Cisco Business 350 Series Switches provide the ideal combination of availability and capability for small offices and help create a more productive, better connected workforce. If your business needs advanced networking and security features for digital transformation, but cost remains a major factor, you're ready to buy Cisco Business 350 Series switches.

CISCO CBS350-16T-2G 16-PORTS 10/100/1000 SWITCH, 2X SFP

Cisco CBS350-16T-2G switch

The Cisco CBS350-16T-2G Switch (CBS350-16T-2G-EU) is an excellent, high-performance and reliable solution for small and medium-sized businesses. The device provides the ability to limit data transfer rates by port. This reduces network load and avoids overloading the channels of individual terminals. Comprehensive security options protect business-critical operations and transactions. With this model, you can create a secure yet efficient corporate network.

CISCO CBS350-16T-2G 16-PORTS 10/100/1000 SWITCH, 2X SFP

Great solutions at work

The Cisco CBS350-16T-2G Switch (CBS350-16T-E-2G-EU), equipped with protection against DDOS attacks, will ensure the operation of an efficient large-scale network and the security of data within it. The device is connected via sixteen ports that support Gigabit Enternet speed standards. The switch has a throughput of 36 Gbps, which ensures very fast operation. The processor of the device with a clock speed of 800 MHz will not allow to degrade the performance of the network even at the maximum number of connected users.

CISCO CBS350-16T-2G 16-PORTS 10/100/1000 SWITCH, 2X SFP

Easy setup and management

Cisco Business switches, routers, and wireless access points are managed using the Cisco Business dashboard. The interface and widgets can be easily configured for proactive network administration. In addition, Cisco Business 350 Series switches have a built-in probe to run the Cisco Business dashboard, eliminating the need to add special hardware or a virtual machine to the environment.

CISCO CBS350-16T-2G 16-PORTS 10/100/1000 SWITCH, 2X SFP

Specification

Features / filters
LAN standard Gigabit Ethernet 10/100/1000 Mb/s
Number of LAN ports 16x [10/100/1000M (RJ45)] , 2x SFP (1,25G),
10G support Yes
Access Control List (ACL) Yes
Access Control List (ACL) rules 1024
ARP inspection Yes
Auto MDI/MDI-X Yes
Basic switching RJ-45 Ethernet ports quantity 16
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Broadcast storm control Yes
Built-in modem None
Built-in processor Yes
Cloud-managed Yes
Configuring Location Settings (CLI) Yes
DHCP features DHCP relay,DHCP server,DHCPv6 client
Ethernet LAN data rates 10,100,1000
Firmware upgradeable Yes
Flash memory 256
Flow control support Yes
Harmonized System (HS) code 85176990
Head-of-line (HOL) blocking Yes
IGMP snooping Yes
Installed SFP modules quantity 2
Internal memory 512
Jumbo frames 9000
Jumbo frames support Yes
LED indicators Yes
Link aggregation Yes
MAC address filtering Yes
MAC address table 16000
Management By web browser
Management protocols SNMP
MIB support Yes
Multicast support Yes
Networking standards IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3ad
Number of VLANs 4094
Operating relative humidity (H-H) 10 - 90
Operating temperature (T-T) -5 - 50
Password protection Yes
Port mirroring Yes
Power supply included Yes
Processor frequency 800
Product colour Silver
Quality of Service (QoS) support Yes
Rack mounting Yes
Reset button Yes
Security algorithms HTTPS,SSH,SSL/TLS
Spanning tree protocol Yes
SSH/SSL support Yes
Storage relative humidity (H-H) 10 - 90
Storage temperature (T-T) -25 - 70
Switch layer L2/L3
Switch type Managed
Switching layer 2
Type of case Desktop
USB 2.0 ports quantity 1
VLAN support Yes
Web-based management Yes

Basic general data
Manufacturer Cisco
Model BS350-16T-2G
Type Switch
Performance characteristics
Performance in millions of packets per second (mpps) (64-byte packets) 26.78
Gigabit per second (Gbps) switching capacity 36.0
Layer 2 switching
Fission tree protocol Standard 802.1d spanning tree support.
Rapid convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by default.
Support for multiple spanning tree instances using 802.1s (MSTP); 8 instances are supported
Per-VLAN Spanning Tree Plus (PVST ) and Rapid PVST (RPVST ); 126 instances are supported
Port Grouping/Link Aggregation Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP)
Up to 8 groups
Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation
VLAN Support for up to 4094 VLANs simultaneously
802.1Q port-based and tag-based VLAN; MAC-based VLAN; protocol-based VLAN; IP subnet-based VLAN
Management VLAN
Private VLAN with promiscuous, isolated, and community port
Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks
Guest VLAN, unauthenticated VLAN
Dynamic VLAN assignment via RADIUS server with 802.1x client authentication
CPE VLAN
Voice VLAN Voice traffic is automatically assigned to a voice-specific VLAN and treated with the appropriate QoS level. Automated voice features ensure zero-touch deployment of voice endpoints and call-handling devices across the network.
Multicast TV VLAN Multicast TV VLAN allows a single multicast VLAN to be shared across the network while subscribers remain in separate VLANs. This feature is also known as Multicast VLAN Registration (MVR).
VLAN translation Support for One-to-One VLAN Mapping. With One-to-One VLAN mapping on an edge interface, customer VLANs (C-VLANs) are mapped to service provider VLANs (S-VLANs), and the original C-VLAN tags are replaced with the specified S-VLANs.
Q-in-Q VLANs transparently traverse the service provider's network while isolating traffic among clients.
Selective Q-in-Q Selective Q-in-Q is an extension of the basic Q-in-Q feature and provides, for each edge interface, multiple mappings of different Q-in-Q. per edge interface, multiple mappings of different C-VLANs to separate S-VLANs.
Selective Q-in-Q also allows you to configure the Ethertype (Tag Protocol Identifier [TPID]) of the S-VLAN tag. S-VLAN tag
Layer 2 protocol tunneling through Q-in-Q is also supported.
Layer 2 DHCP (Dynamic Host Configuration Protocol) forwarding Forward DHCP traffic to a DHCP server in another VLAN; works with DHCP Option 82
Internet Group Management Protocol (IGMP) versions 1, 2 and 3 snooping IGMP limits bandwidth-intensive multicast traffic to requestors only; supports 2K multicast groups (source-specific multicasting is also supported)
IGMP Querier An IGMP converter is used to support the Layer 2 multicast domain of snooping switches in the absence of a multicast router.
HOL (Head-of-Line) Blocking Prevention of HOL blockage
Loopback detection Loopback detection provides loopback protection by transmitting loopback protocol packets from ports on which loopback protection has been enabled. It operates independently of STP
Layer 3 functions
IPv4 Routing Wirespeed routing of IPv4 packets
Up to 990 static routes and up to 128 IP interfaces
IPv6 Routing Wirespeed routing of IPv6 packets
Layer 3 interface Layer 3 interface configuration on a physical port, Link Aggregation (LAG), VLAN interface or loopback interface
Classless inter-domain routing (CIDR) Support for classless inter-domain routing
RIP v2 Support for Routing Information Protocol version 2 for dynamic routing
Policy-Based Routing (PBR) Flexible routing control to route packets to different next hops based on IPv4 or IPv6 access control lists (ACLs)
DHCP server The switch acts as an IPv4 DHCP server supporting IP addresses for multiple DHCP pools/ranges
Supports DHCP options
DHCP Layer 3 Forwarding Forwarding of DHCP traffic over IP domains
User Datagram Protocol (UDP) Forwarding of broadcast information across Layer 3 domains for application discovery or forwarding Bootstrap Protocol Packet Forwarding (BOOTP)/DHCP
Safety features
Functions and protocols Secure Shell Protocol (SSH)
Secure Sockets Layer (SSL)
IEEE 802.1X (authentication role)
Web-based authentication
STP Bridge Protocol Data Unit (BPDU) Guard
STP Root Guard
STP loopback guard
DHCP snooping
IP Source Guard (IPSG)
Dynamic ARP Inspection (DAI)
IP/MAC/Port Binding (IPMB)
Secure Core Technology (SCT)
Secure Sensitive Data (SSD)
Trusted Systems
Private VLAN
Layer 2 isolation Private VLAN Edge (PVE) with community VLAN
Port Security
RADIUS/TACS
RADIUS accounting
Storm Control
DoS prevention
Multiple User Privilege Levels in CLI
ACLs
Quality of Service (QoS)
Priority levels 8 hardware queues
Scheduling Strict priority and Weighted Round-Robin (WRR)
Class of service Port-based; 802.1p VLAN priority-based; IPv4/v6 IP precedence/type-of-service (ToS)/DSCP-based; differentiated services (DiffServ); ACL classification and remarking, trusted QoS
Queue allocation based on DSCP and class of service (802.1p/CoS)
Bandwidth limitation Input polishing; output shaping and rate control; per VLAN, per port and per flow; 2R3C policing
Avoiding congestion A TCP congestion avoidance algorithm is required to minimize and prevent the global synchronization of TCP losses.
iSCSI traffic optimization Mechanism for prioritizing iSCSI traffic over other traffic
IPv6
IPv6 IPv6 host mode; IPv6 over Ethernet; Dual stack IPv6/IPv4
IPv6 neighbor and router detection (ND); stateless IPv6 address auto-configuration; maximum transmission unit (MTU) per path detection
Duplicate Address Detection (DAD); ICMP version 6
Stateful DHCPv6 Client
IPv6 on IPv4 network with Intrasite Automatic Tunnel Addressing Protocol (ISATAP) tunnel support
USGv6 certified and IPv6 gold logo
IPv6 QoS Prioritizing IPv6 packets in hardware
IPv6 ACL Hardware deletion or rate limiting of IPv6 packets
IPv6 First Hop Security Guardian RA
ND inspection
DHCPv6 gatekeeper
Neighbor binding table (snooping and static entries)
Neighbor binding integrity check
Multicast listener detection (MLD v1/2) snooping Deliver IPv6 multicast packets only to required recipients
IPv6 applications Web/SSL, Telnet/SSH server, ping, traceroute, Simple Network Time Protocol (SNTP), Trivial File Transfer Protocol (TFTP), SNMP, RADIUS, syslog, Domain Name System (DNS) client, Telnet client, DHCP client, DHCP Autoconfig, IPv6 DHCP Relay, Terminal Access Control System Access Controller Plus (TACACS )
Management options
Cisco Business Dashboard Supports an embedded probe for Cisco Business Dashboard running on the switch.
Eliminates the need to configure separate hardware or virtual machine for Cisco Business Dashboard Probe at the site.
Cisco Business mobile application Mobile app for Cisco Business Switch and Wireless products. Helps you set up your local network in minutes and provides easy management at your fingertips.
Cisco Network Plug and Play (PnP) agent The Cisco Network Plug and Play solution is a simple, secure, unified, and integrated offering that makes it easy to deploy new devices in branch offices and campuses or upgrade an existing network. The solution provides a unified approach to delivering Cisco routers, switches, and wireless devices with near-touchless deployment.
Cisco PnP Connect support
Web user interface Built-in switch configuration utility for easy device configuration via browser (HTTP/HTTPS).
Supports simple and advanced mode, configuration, wizards, configurable dashboard, system maintenance, monitoring, online help and universal search.
SNMP SNMP versions 1, 2c, and 3 with trap support and SNMP version 3 User-based Security Model (USM).
User-based Security Model (USM)
General features
Jumbo frames Frame sizes up to 9K bytes. The default MTU is 2K bytes.
MAC table 16K addresses
Power over Ethernet (PoE)
802.3af PoE, 802.3at PoE or 60W PoE delivered through RJ-45 ports within the listed power budgets. Does not support
Energy consumption (worst case)
Energy consumption of the system 110V=18.63W
220V=18.37W
Heat dissipation (BTU/hr) 64.46
Ports
Total number of system ports 18 x Gigabit Ethernet
RJ-45 ports 16 x Gigabit Ethernet
Combo Ports (RJ45 Small form-factor pluggable [SFP]) 2 x SFP
USB socket Mini USB port on the front panel of the switch for easy file and image management
Buttons Reset button
Wiring type Unshielded twisted pair (UTP) category 5e or better for 1000BASE-T
LEDs System, Link/Act, PoE, Speed
Flash 256 MB
CPU 800 MHz ARM
DRAM 512 MB
Packet buffer 1.5 MB
Environmental features
Dimensions 268 x 272 x 44 mm
(10.56 x 10.69 x 1.73 in)
Weight 1.78 kg(3.92 lb)
Operating temperature 23° to 122°F
(-5° to 50°C)
Storage temperature -13° to 158°F
(-25° to 70°C)
Humidity during operation 10% to 90%, relative, non-condensing
Storage Humidity 10% to 90%, relative, non-condensing
Acoustic Noise and Mean Time Between Failures (MTBF)
Fan (quantity) -
Acoustic noise -
MTBF at 25°C (hours) 2,165,105

Support

Files to download

Data sheet Download
Quick start guide Download

Faq

How many ports on the Cisco CBS350-16T-2G support PoE power?

The Cisco CBS350-16T-2G switch does not support PoE power.
