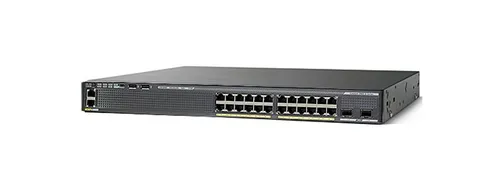

The Cisco Catalyst 2960-X is a line of tower switches with support for Gigabit Ethernet access technology. The Cisco Catalyst 2960-X models provide second-level (L2 layer) switching and are equipped with a single main power supply with the ability to install an additional backup power source. These switches feature 24 Gigabit Ethernet ports and two Gigabit Ethernet Small Form-Factor Pluggable(SFP) or two 10 Gigabit Ethernet Small Form-Factor Pluggable Plus(SFP+) channels. The switches operate with two 600 Mhz core processors. FlexStack-Plus technology allows you to build a stack of 8 switches and provides 80 GB/s throughput. To provide visualization and control of the traffic of various applications on the network, Cisco added the NetFlow Lite feature, which allows engineers to monitor and manage data streams across all network segments.
Leveraging technologies such as Cisco EnergyWise and Energy Efficient Ethernet, the Catalyst 2960 X-Series Switches deliver best-in-class energy efficiency, and the Switch Hibernation Mode mechanism achieves dramatic reductions in power consumption with up to 80% power savings in some cases.
Thesoftware (feature set) for Cisco Catalyst 2960-X switches is available in LAN Base and Lan Lite Image. LAN Base has enhanced functionality, including improved security (ACLs), DHCP Snooping, and additional access control features-Web authentication and 802.1 x extensions, additional QoS installation capabilities, support for redundant RPS power, and a large number of SFP ports. Flex Links and link state tracking features, increased number of supported VLANs (up to 256), Host IPv6, MLD Snooping, LLDP-MED, RSPAN, MVR, DHCP 82 and IP SLA (responder) option and so on. The LAN Lite image supports basic Layer 2 features and is primarily designed for use in small organizations, while LAN Base fully supports Layer 2 features and is designed for use in medium to large organizations. Cisco Catalyst 2960-X switches are available with the IP Lite feature set. The IP Lite feature set already supports Layer 3 (i.e., has routing features) and is also targeted at medium and large organizations.
| Management characteristics | |
| Switch type | Managed |
| Multilayer switch | L2 |
| Quality of Service (QoS) support | Yes |
| Management via website | Yes |
| Connectivity | |
| Basic switching RJ-45 Number of Ethernet ports | 24 |
| Basic Ethernet Switching RJ-45 ports type | Gigabit Ethernet (10/100/1000) |
| Number of SFP+ module slots | 2 |
| Console port | RJ-45 |
| Number of USB 2.0 ports | 2 |
| Computer network | |
| Communication standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Full duplex | Yes |
| Connection aggregator | Yes |
| Traffic growth control | Yes |
| Frequency limit | Yes |
| Automatic MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Number of VLANs | 1023 |
| Transmission (broadcast) of Data | |
| Routing/switching capacity | 216 |
| Compatible with Jumbo Frames | Yes |
| Security | |
| DHCP functions | DHCP server |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| supports SSH/SSL | Yes |
| Multicast functions | |
| Multicast support | Yes |
| Design | |
| Frame installation possibilities | Yes |
| Stackable product | Yes |
| Product colour | Black |
| LEDs | Yes |
| Security | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1 |
| Work | |
| Embedded processor | Yes |
| Processor model | AppliedMicro APM8639 |
| Processor speed | Yes |
| Memory type | DRAM |
| Internal memory capacity | 512 |
| Flash memory size | 128 |
| Noise level | 43 |
| MTBF (Mean Time Between Failure) | 569,520 |
| Energy management | |
| Backup Power Supply (RPS) | Yes |
| Number of power units | 1 |
| AC input voltage | 100 - 240 |
| AC input frequency | 50 - 60 |
| Power consumption | 32,3 |
| External conditions | |
| Temperature range (operation) | -5 - 40 |
| Temperature range (storage) | -25 - 70 |
| Relative humidity range | 10 - 95 |
| Permissible relative humidity | 10 - 95 |
| Permissible altitude during operation (above sea level) | 0 - 3000 |
| Permissible altitude (above sea level) | 0 - 4000 |
| Weight and dimensions | |
| Product width | 445 mm |
| Product depth | 279 mm |
| Product height | 450 mm |
| Weight | 4 kg |
| Other characteristics | |
| Power LED indicator | Yes |
| Data sheet | Download |
Because the switches can be stacked with up to 8 switches, it is possible to control them simultaneously, making hardware configuration easier.
