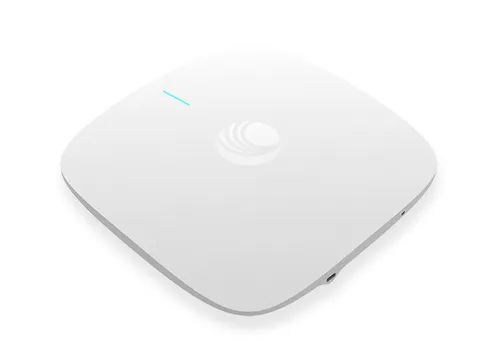

Cambium CNPILOT XV2-2 | Access point | WiFi6, 802.11ax, 2.4GHz, 5GHz, 1x RJ45 2500Mb/s
![](https://www.batna24.com/img2/1000/331045_155282.webp?20989284238)
EN
The XV2-2 software-defined enterprise access point continues the convergence of enterprise networks with an intelligent access point managed by the application-intelligent Cambium Networks XMS or cnMaestro™ management system. Choose the management system that best fits your business and take advantage of the latest Cambium Networks technology.
XV2-2 is a dual-radio Wi-Fi 6 access point designed for next-generation networks with edge services at an affordable price. Wi-Fi 6 technology delivers faster network speeds and enables more devices to connect at higher packet quality. Wi-Fi 6 introduces a deterministic model to the radio frequency (RF) layer in which the access point controls client connections, including when to sleep, when to wake, and how to transmit and receive packets.
The XV2-2 is fully compatible with existing Wi-Fi technology and enables massive growth in low-power, low-bandwidth IoT devices, increasing infrastructure intelligence in every market.
Features / filters | |
LAN standard | Gigabit Ethernet 10/100/1000 Mb/s |
Maximum wireless transmission speed | 1750 Mb/s |
Number of LAN ports | 1x [100/1000/2500M (RJ45)] |
Operating frequency | 2.4 GHz, 5 GHz, |
Wireless network standards | IEEE 802.11ax, IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, |
Antenna gain | Under 10dbi |
Antenna type | Integrated |
Application | Indoor |
MIMO Type | 2x2 |
Type of device power supply | PoE 802.3af |
Access Point Specifications | |
FCC | Ch 1-11, 36-48, 100-144, 149-165 |
ISED | Ch 1-11, 36-48, 100-116, 149-165 |
ETSI | Ch 1-13, 36-64, 100-140 |
ROW | Ch 1-14, 36-64, 100-144, 149-173 |
Radio | 5 GHz 802.11 a/n/ac Wave 2/ax, 2x2 2.4 GHz 802.11 b/g/n/ax, 2x2 |
Wi-Fi | 802.11 a/b/g/n/ac Wave 2/ax |
SSID Security | WPA3, WPA2 (CCMP, AES, 802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK (TKIP), WEP, Open |
Max PHY Rate | 5 GHz radio 1,201 Mbps 2.4 GHz radio 573.5Mbps |
Ports | 1 x IEEE 10/100/1000/2500 Mbps Auto sensing MDIX 1 x USB 2.0 |
Antenna | 5 GHz 6 dBi, Omni 2.4 GHz 5 dBi, Omni |
Max EIRP | 5 GHz 31 dBm 2.4 GHz 29 dBm |
Power | Maximum power 21W, 802.3at 15.4W (802.3af) with limited feature settings Typical 11W (USB off) |
Dimensions | 195 mm x 195 mm x 41.4 mm |
Weight | 800 g |
Security | Kensington lock slot |
LED | Multi-color status LEDs |
Permissible ambient temperature | 0ºC to 50ºC (32ºF to 122ºF) |
Storage temperature | -40ºC to 70ºC (-40ºF to 158ºF) |
Humidity | 95% RH, non-condensing |
MTBF | 4,514,013 hours at an ambient temperature of 25ºC 1,314,841 hours at 50ºC ambient temperature |
Mounting options | Wall or ceiling, T-bar with attached locking bracket, ceiling tile |
Certificates | Wi-Fi Alliance 802.11 a/b/g/n/ac/ax,FCC, IC, CE, EN 60601-1-2, EN 60950-1, IEC 62368-1 Safety, EN 60601-1-2 Medical, EN 61000-4- 2/3/5 Immunity, EN 50121-1 Railway EMC, EN 50121-4 Railway Immunity, IEC 61373 Railway Shock |
Network specifications | |
Operating modes | Cloud managed cnMaestro or VM Cloud managed XMS Standalone site |
WLAN | 512 clients, 32 SSIDs (16 SSIDs per radio) WPA3, WPA3 SAE, WPA3 Enterprise, WPA-TKIP, WPA2 AES, 802.1x, 802.11w PMF |
Authentication / Encryption | 802.1x EAP-SIM/AKA, EAP-PEAP, EAP-TTLS, EAP-TLS MAC authentication to local database or external RADIUS |
Scheduled WLAN | On/off by day, week, time of day |
Guest access | For more information, see Captive Portal. details. |
Data limit | Client bitrate/time/bandwidth limit for each SSID |
Subscriber QoS | WMM |
Fast roaming | 802.11r, OKC, cnMaestro assisted roaming |
Sticky Client | Extended roaming with thresholds |
Mesh | Multi-hop, any band |
Channel/Channel selection | Multimodal channel selection using AutoChannel and AutoBand. Granular side control of off-channel scanning and channel selection |
RF Management | Multimodal RF optimization supporting AutoCell in intelligent AP edge device. Out-of-band RF spectrum analysis, network self-test network self-test, RF monitor with chn/noise/interference. Trimming and minimum data rates |
Network | TCP connection log, NAT logging, firewall, DHCP server, L2, L3 or DNS based access control, VLAN Pooling, RADIUS attribute VID VLAN per SSID per user. |
Belt control/load balancing | Yes |
Tunnel | L2TPv2, L2GRE, PPPoE |
Network management and RF tools | Remote packet capture in wired and wireless networks, ZapD tool, detecting rogue access points |
Services | NTP, Syslog, SNMP traps, DNS proxy, automatic shutdown on WAN failure |
Standards | |
Wi-Fi protocols | VHT MCS rates, 16/64/256/1024-QAM, 20/40/80 MHz TWT, Long OFDM Symbol, Transmit beamforming, Airtime Fairness, AMSDU, AMPDU, RIFS, STBC, LDPC, MIMO Power Save, MRC, BPSK, QPSK, CCK, DSSS, OFDM, OFDMA, UL/DL MU-MIMO IEEE 802.11 a/ac/ax/b/d/e/g/h/i/k/n/r/u/v |
