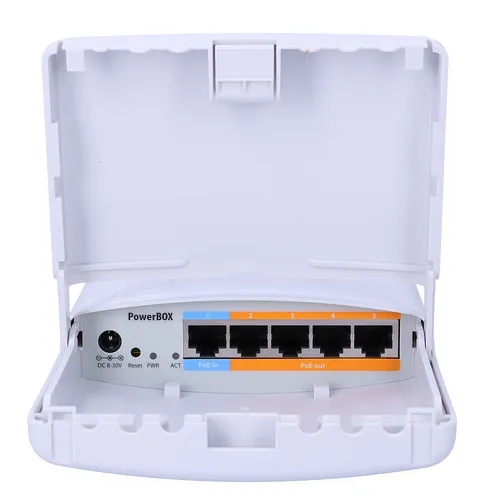

Routerboard powerbox rb750ppbr2 is an external router with five Ethernet ports with PoE output on four ports. This device can power four PoE-compatible devices, such as our SXT or others.
Since the Mikrotik routerboard powerbox rb750ppbr2 has a waterproof external enclosure, it can be mounted on a tower or in other outdoor locations. The device has five shielded Ethernet ports, four of which can power other PoE-enabled devices with the same voltage as the device (maximum output current is 1A per port, maximum total output is 2A). Less problems with power supply and cables!
Basic technical parameters | |
Nominal processor frequency | 650mhz cpu |
Number of processor cores | 1 |
RAM | 64 MB |
10/100 Ethernet ports | 5 |
10/100/1000 Ethernet ports | None |
MiniPCI slots | 0 |
MiniPCI-e slots | 0 |
Number of USB ports | 0 |
Power Jack | 1 |
PoE input | Yes |
Fast ethernet | None |
Supported input voltage | 6 V - 30 V |
PoE output | Yes |
Sfp port | None |
Voltage monitor | Yes |
Processor temperature monitor | No |
PCB temperature monitor | Yes |
Dimensions | 125×178×48 mm |
Operating system | RouterOS |
Operating temperature range | -35C +70C |
Licence level | 4 |
Current monitor | Yes |
Processor | QCA9531-BL3A-R |
Maximum energy consumption | 2W |
Ports SFP | 0 |
Ports SFP+ | 0 |
Serial Port | None |
MikroTik RouterOS is the operating system of the router and software that allows the PC or Mikrotik RouterBoard to be a dedicated router.
User name is 'admin' and there is no password (press 'Enter'). To change password use '/password' command.
If you have not turned off the router, the filesystem has not been unmounted properly. During startup, RouterOS will perform a filesystem test. Depending on the size of your hard drive, this may take several minutes. Do not interrupt the file system test!
rf elements brand handles are often used to assemble various MikroTika components.
