Aruba 3810 Series switches deliver performance and resiliency for large enterprise, branch office, and SMB networks. With multi-gigabit HPE Smart Rate ports for high-performance 802.11ac devices, this advanced Layer 3 switch enables more efficient applications with low latency, virtualization with robust stack technology, and 40GbE throughput for large backhaul networks. Aruba 3810 switches are easy to deploy and operate with advanced network and security management tools such as Aruba ClearPass Policy Manager and Aruba AirWave, and the Aruba Central cloud solution.
Aruba introduces a complete line of networking products for campus networks based on the ArubaOS operating system. ArubaOS switches are easy to deploy and easy to use. They integrate with Aruba ClearPass Policy Manager, Aruba AirWave and the Aruba Central cloud service and are optimized for software-defined networking (SDN) with support for OpenFlow. Key features of the new operating system include tunneling mode, device profiling, SmartRate support, Zero Touch Provisioning (ZTP) and management system support (Aruba Activate, Central and AirWave), role-based user access with Aruba CPPM (ClearPass Policy Manager), Access OSPF for access switches and more.
| Basic general data | |
| Manufacturer | Aruba |

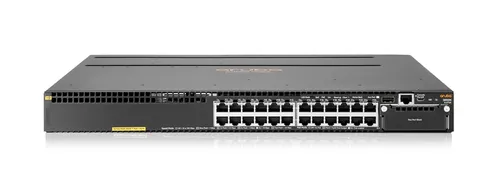

| Model | 3810M 24G PoE |
| Model code | JL073A |
| Type | Switch |
| Housing type | For rack mounting - 1U |
| Ports | 24 x RJ45 ports 10/100/1000 (PoE ) |
| Power Over Ethernet (PoE) | PoE |
| Performance | |
| Latency (1000base-t) | 2.8 Μs |
| Latency (10 Gbps) | 1.8 Μs |
| Latency (40 Gbps) | 1.5 Μs |
| Throughput (64-byte packet size) | Up to 95.2 Mpps |
| Routing/switching Capacity | 160 Gbps |
| Switching Fabric Bandwidth | 169 Gbps |
| Capacity | |
| Ipv4 Routing Table Entries | 10000 |
| Ipv6 Routing Table Entries | 5000 |
| MAC address table size | 64k entries |
| Jumbo Frame Support | Yes |
| Routing protocol | Ospf, Rip, Rip-1, Rip-2, Bgp, Vrrp, Ospfv2, Ospfv3, Static Ipv4 Routing, Static Ipv6 Routing, Ripng, Mld, Bidirectional Forwarding Detection (bfd) |
| Remote Management Protocol | Snmp 1, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Rmon, Telnet, Snmp 3, Snmp 2c, Http, Ssh, Ssh-2, Cli, Xrmon |
| Encryption algorithm | SSL |
| Authentication method | Radius, Tacacs , Secure Shell V.2 (ssh2) |
| Features | Arp Support, Spanning Tree Protocol (stp) Support, Per-vlan Spanning Tree (pvst), Access Control List (acl) Support, Quality Of Service (qos), Device Link Detection Protocol (dldp) Support, Uni-directional Link Detection (udld), Management Information Base (mib), Dynamic Vlan Support (gvrp), Multiple Vlan Registration Protocol (mvrp), Class Of Service (cos), Sflow V5, Type Of Service (tos), Openflow Support, Internet Control Message Protocol (icmp) |
| Compliant standards | Ieee 802.3, Ieee 802.3u, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3ad (lacp), Ieee 802.1x, Ieee 802.1s, Ieee 802.1v, Ieee 802.11n, Ieee 802.1ab (lldp), Ieee 802.3at |
| CPU | P2020 Dual Core @ 1.2 GHz |
| RAM | 4 GB DDR3 SDRAM |
| Storage | 1 GB SD Card |
| Maximum heat dissipation (Max Case) | 395.56 |
| PoE power (max. possible) | 840W |
| Physical properties | |
| Dimensions | 44.25 x 43.13 x 4.39 cm 1U |
| 5.91 kg | |
