ZTE F620 V5 | ONT | 1x GPON, 4x RJ45 100Mb/s, 2x RJ11
About product

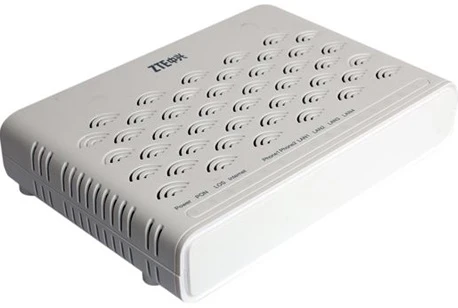

ZTE F620 ONU V5 - high performance GPON gateway for FTTH solutions
The F620 ONU V5 terminal provides a very fast and efficient broadband Internet network using FTTH. It is perfect for voice calls (VoIP), video streaming (IPTV) and Internet browsing. Additionally, the F620 V5 allows you to connect two phones via RJ-11 connectors.
High-speed Internet access
The ZTE F620 V5 subscriber terminal provides access to a high-speed broadband network via a GPON connector, which allows stable and efficient operation of the aforementioned applications.

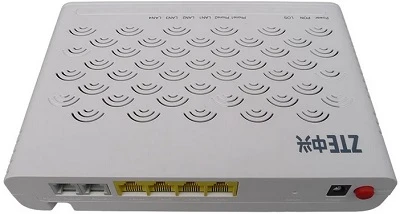

Support for two phones
Thanks to the two RJ-11 connectors used, it is possible to connect two phones separately, for example, one for private and one for business purposes.
Ethernet connectors
Four built-in Fast Ethernet ports in F620 V5 allow you to connect several devices without additional bridges and operate with 100 Mb/s transfers.
Specification
Features / filters
Number of LAN ports
PON standard
VoIP ports
Specification
Optical port
1 x GPON interface (SC / APC)
Transmission range
20 km
Transmission speed
Download: 2,488 Gb/s
Upload: 1,244 Gb/s
User interface
4 x 10/100/1000Base-T, half/full duplex, automatic MDI/MDIX, automatic negotiation
2 x POTS (VoIP) interface
Wavelength
Reception: 1480-1500 nm
Transmission: 1290-1330 nm
Receiver sensitivity
-28 dBm
Transmitter optical power
0.5 to 5 dBm
Current consumption
7W
Dimensions
180 x 38 x 127 mm
Working conditions
Temperature: 0°C to 40°C
Humidity: 5% to 40%
Weight
260 g
Power supply
12 V DC
Installation
Standing / To the wall
Spare battery
3 AH / 6 AH (optional)
Supported services
VoIP
Internet
IPTV
GPON
8 x T-CONT
32 x GEM port
VLAN
802.1Q
802.1P
802.1ad
MAC address table
1K
Functions L3
DHCP Client/Server
DNS Client
NAT
IPv6
Dual stack
DS-Lite
VoIP
SIP/H.248
G.711/G.722/G.729
T.30/T.38
Multicast
IGMP v1/v2 Snooping/Proxy
MLD v1 Snooping
Multicast group per user port
256
QoS
Flow classification based on physical movement
MAC address
VLAN ID
VLAN priority level
IP address
SP/WRR/SP+WRR
Management
Local Web
OMCI
TR069
FAQ
Pytanie: What is Fast Ethernet in ZTE F620 V5?
The Fast Ethernet standard in the ZTE F620 V5 client device means that each Ethernet port supports a data transfer rate of up to 100 Mb/s.
