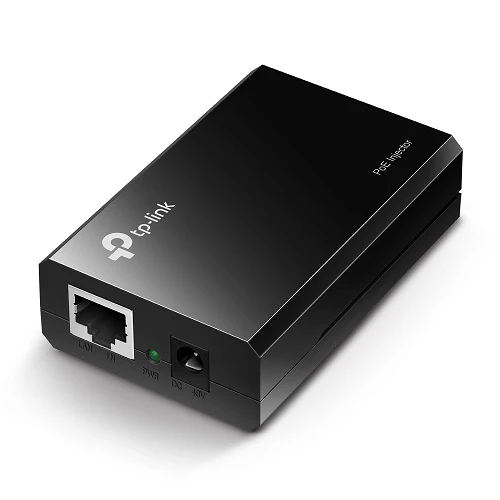

TP-Link TL-POE150S | PoE Injector | 2x RJ45 1000Mb/s, 15,4W, IEEE 802.3af
About product
PoE Injector
The PoE TL-POE150S Injector is compliant with the IEEE 802.3af standard and can work with all Powered Devices (PDs) or PoE receiving adapters operating according to this standard. It allows you to expand your network wherever there is no access to a power outlet. It enables installation of devices such as access points, IP cameras, IP telephones etc.
Specification
Features / filters
Data transmission speed
Certification
DC-out jack
Depth
Ethernet LAN (RJ-45) ports
Height
Input voltage
Networking standards
Operating relative humidity (H-H)
Operating temperature (T-T)
Output power
Plug and Play
Power LED
Power over Ethernet (PoE)
Product colour
RJ-45 input ports
RJ-45 output ports
Storage relative humidity (H-H)
Storage temperature (T-T)
Width
Specification
Ports
2 RJ45 ports 10/100/1000 Mb/s
Automatic negotiation of connection speeds
Automatic crossover (Auto MDI/MDIX)
1 48 V DC power socket
Network cabling
10 BASE-T: Cat 3, 4 or 5 UTP cable (up to 100 m)
STP EIA/TIA-568 cable 100 Ω (up to 100 m)
100 BASE-TX: Cat 5 or 5e UTP cable (up to 100 m)
STP EIA/TIA-568 cable 100 Ω (up to 100 m)
1000 BASE-T: UTP cable cat 5, 5e, 6 (up to 100 m)
Power supply
15.4 W (up to 48 V DC)
LED
PWR
Dimensions (S x G x W)
80,8 mm x 54 mm x 24 mm (3,2″ x 2,1″ x 0,9″)
Basic functions
Compatible with IEEE 802.3af IEEE 802.3af PoE-powered (PD) devices
Power supply up to 100 meters
Automatic determination of required power supply parameters
Certificates
FCC, CE, RoHS
Package contents
Gigabit PoE Injector TL-POE150S
Power Adapter
RJ45 Cable
Installation Guide
System requirements
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux
Working environment
Permissible operating temperature: 0℃~40℃ (32℉~104℉)
Permissible storage temperature: -40℃~70℃ (-40℉~158℉)
Permissible air humidity: 10%~90%, non-condensing
Permissible storage humidity: 5%~90%, non-condensing
