Orvaldi V3000+ Sinus 2U LCD | UPS | 3000VA/2700W, 6x 9Ah
KOD: VOT3000+
EAN: 5904006036818
EAN: 5904006036818
UPS power (VA): 3000
AC outlet types: C13 coupler, C19 coupler
AC outlets quantity: 9
Audible alarm modes: Alarm when on battery, Fault, Low battery alarm, Overload alarm
Audible alarm(s): Yes
About product

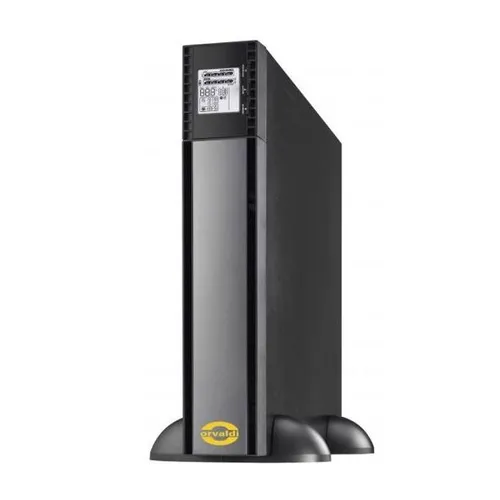

Orvaldi V3000 Sinus 2U LCD
Uninterruptible power supplies of the UPS type provide short-term operation of home or office equipment in the event of a power cut in the general network. Operating in normal mode, UPSs, thanks to their built-in AVR, act as a voltage stabilizer. The voltage range of the mains supply is 162 to 290V. ORVALDI V(L) 1.1kVA to 3KVA with a power factor of 0.9, provides servers with full power protection from power failures as well as from the effects of power surges and peaks.
With the added advantage of a universal Rack / Tower chassis and an easy-to-read and user-friendly LCD, the Orvaldi V3000 Sinus 2U LCD is ideal for networking, telecommunications, servers and critical applications.

Characteristics
- Pure sinusoidal output voltage
- Output power factor 0.9
- User-friendly and easy-to-use LCDs
- Rack / Tower design
- Line interactive topology
- Built-in AVR voltage regulation circuit
- Programmable power management outputs
- ECO operation for energy saving (performance correcting Optimizer)
- Emergency power off (EPO) function
- USB/RS-232 communication available
- Optional SNMP card and AS400 relay card

Specification
Features / filters
Battery voltage in UPS
UPS power (VA)
AC outlet types
AC outlets quantity
Audible alarm modes
Audible alarm(s)
Automatic Voltage Regulation (AVR)
Battery capacity
Battery voltage
Cold start
Crest factor
Depth
Display type
ECO mode
Emergency Power Off (EPO)
Form factor
Height
Input frequency
Input operation voltage (max)
Input operation voltage (min)
LED indicators
Noise level
Number of batteries supported
Operating relative humidity (H-H)
Operating temperature (T-T)
Output frequency
Output operation voltage (max)
Output operation voltage (min)
Output power
Output power capacity
Output voltage regulation
Output voltage Total Harmonic Distortion (THD)
Power protection features
Product colour
Rack capacity
Serial interface
Serial interface type
Serial ports quantity
UPS topology
USB port
Waveform
Weight
Width
Specification
Model
ORVALDI V3000 sinus 2U LCD
Power
3000VA/2700W
Voltage
208/220/230/240 VAC
Adm. input voltage
162-290 VAC
Adm. frequency range
50 Hz
Voltage Selection (AC Mode)
208/220/230/240 VAC
Stabilization (Batt. Mode)
± 3% (before battery alarm)
Frequency (Batt. Mode)
50 Hz ± 1 Hz
Current Crest Ratio
3:1
Harmonic distortion
8% max @ 100% linear load, 15% max @ 100% non-linear load (before alarm)
Voltage shape (Batt. Mode)
Pure sine wave
Switchover time
Typically 2-6 ms, 10ms max
AC Mode
97%
Buck
90%
Battery Mode
87%
Type and quantity
12 V/9 Ah x6
Charge voltage.
82.1 VDC ± 1%
Typical charging time
4 hours to 90% capacity
Full security
Against overloading, discharging, overcharging
Option - SNMP card
Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, Unix, and MAC
RS-232/USB communication
Power management from SNMP manager and web browser
LCD panel
AC Mode, Battery Mode, Load Level, Battery Level, Input Voltage, Output Voltage, Overload, Fault, and Low Battery.
Battery Mode
Signal every 10 sec.
Low Battery
Signal every second
Overload
Signal every 0.5 seconds
Fault
Continuous signal
Dimensions ( D x S x W )
600 x 438 x 88
Weight
32.24
Moisture
0-90 % RH @ 0- 40°C (non-condensing)
Noise level below
45dB
