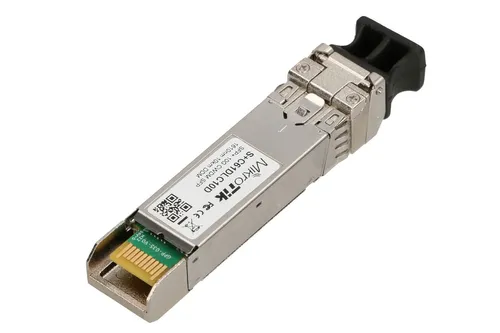

MikroTik S+C61DLC10D is an SFP+ optical module that allows to achieve transmission speeds of up to 10 Gbps. The SFP+ S+C61DLC10D module provides transmission over a distance up to 10 kilometers via a single-mode fiber. It uses a wavelength of 1610 nm for data transmission. MikroTik S+C61DLC10D supports CWDM technology and is equipped with 2 LC ports.
Features / filters | |
Output connector | LC |
SFP module - port speed | 10 Gbps |
Transmission distance | 4-20km |
Digital Diagnostics Monitoring (DDM) | Yes |
Fiber optic connector | LC |
Fiber ports quantity | 2 |
Fiber type | SM (Single-Mode) |
Interface type | SFP+ |
Maximum data transfer rate | 10000 |
Maximum transfer distance | 10000 |
Number of products included | 1 |
Numbers of pieces in the package | 1-pack |
Product colour | Nickel |
SFP transceiver standard | CWDM |
SFP transceiver type | Fiber optic |
Type of SFP duplex | Wavy (WDM) |
Wavelength | 1610 nm, 1610, |
Basic technical parameters | |
Type of module | SFP+ |
Transmission speed | 10 Gbps |
Distance | 10 km |
Wavelength | 1610 nm |
Output connectors | 2 x LC |
Duplex type | CWDM |
Type of transmission | Single-Mode |
Check if the ports on the device are SFP or SFP+ ports. The latter can operate at 10 Gbps. Then we select the fiber optic cable. Single mode fiber is usually used over longer distances, while multimode fiber is used over shorter distances.
SFP+ is an extension of the SFP standard adapted to a transmission rate of 10 Gbit/s.
The SFP RJ45 module allows you to connect Ethernet cables to the SFP sockets of your network devices via a special module, which is equipped with an RJ45 port.
