Mikrotik R11eL-FG621-EA | LTE Modem | LTE 6
CODE: R11EL-FG621-EA / EAN: 4752224008862
Contact
Account
Favorite
Cart

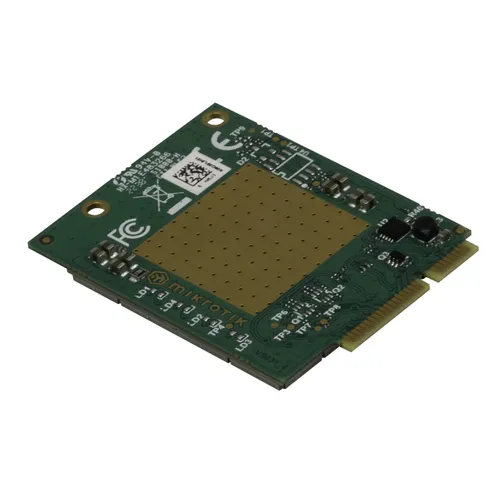

MikroTik R11eL-FG621-EA is an advanced LTE module equipped with a miniPCIe connector, ideally suited for most MikroTik devices (except for RB800 and RB4011 models). It provides the reliability and high performance you expect from MikroTik products. With support for 3G and 4G (LTE) networks, this module allows you to enjoy a fast and stable Internet connection.
With Category 6 LTE support, the MikroTik R11eL-FG621-EA offers an impressive maximum throughput of 300 Mbps downlink and 50 Mbps uplink. The carrier aggregation function allows simultaneous use of multiple bands, which significantly improves performance and connection stability. The maximum channel width of 20 MHz ensures fast data transfer, making this module ideal for demanding users.
The modem was designed specifically for the EMEA/APAC/Australia regions, including Poland. It supports popular frequencies, including the B28 band, which guarantees wide compatibility with local networks. This makes it a versatile tool for a variety of applications, from urban data centers to remote locations.

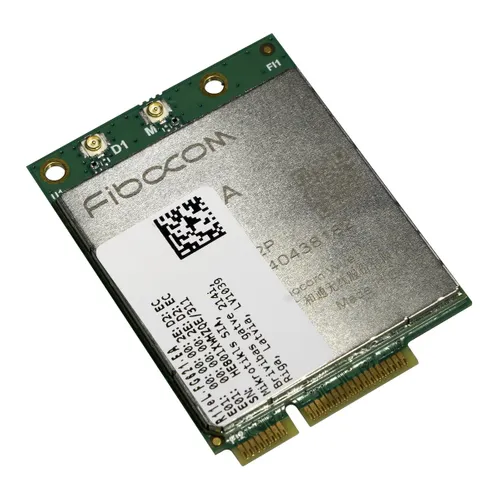

MikroTik R11eL-FG621-EA has two uFL connectors for connecting an external antenna. Choosing the right antenna is crucial - it should support the frequencies of the bands that are most commonly used in your area. This will ensure maximum performance and connection range.
| MikroTik R11eL-FG621-EA | |
| Max power consumption | 3 W |
| LTE category | 6 (300 Mbps downlink, 50 Mbps uplink). |
| 3G category | R8 (42.2Mbps Downlink, 11.2Mbps Uplink) |
| Antenna connectors | 2x uFL |
| Connector | miniPCIe |
| TAC | 86335904 |
| Certificates | CE, ROHS |
| Dimensions | 51 x 30 x 5 mm |
| Permissible operating temperature | From -40 to 70 degrees C. |
| Supported operating systems | RouterOS |
| Supported bands | |
| LTE (FDD) | 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz). |
| LTE (TDD) | 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) |
| 3G | 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz). |
