MikroTik LHG XL HP5 | CPE | RBLHG-5HPnD-XL, 5GHZ, 1x RJ45 100Mb/s, 27dBi

EOL
0
1
2
MIKROTIK
KOD: RBLHG-5HPND-XL
EAN: 4752224003744
5 GHz: Yes
AC input voltage: 10 - 30
Antenna gain level (max): 27
Antenna type: Internal
Built-in processor: Yes
Recommended products

About product

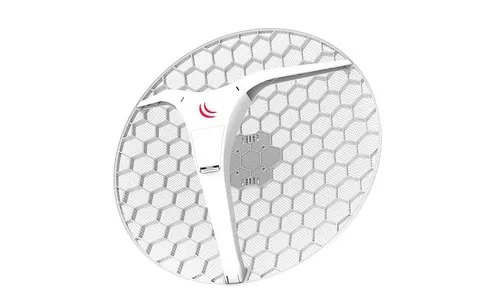

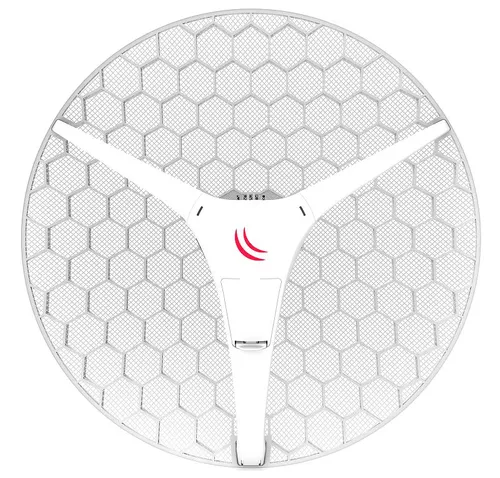

MicroTik LHG XL HP5

Mikrotik Routerboard RBLHG-5HPnD-XL Light Head Grid XL (LHG HP5 XL) is a wireless network device with a 27dBi built in antenna. It is ideal for point-to-point connections or as a CPE client device. The grid design provides protection against wind and no loss of cable connection, as the antenna element is built into the wireless device. The LHG HP5 XL has almost twice the transmitting power of the LHG 5, up to 630mW, and is designed to achieve connections over distances up to 40km. The device works under the MikroTik's RouterOS firmware. The package also includes the PoE Injector, power supply and pole mount.
MICROTIK LHG HP5 XL

Features:

  • radio up to 28 dBm (630 mW)
  • 5 GHz band
  • 802.11a/n standard
  • Mesh antenna with 550 mm diameter and 27 dBi gain
  • 2x2 MIMO
  • Power supply via PoE
  • the best version of LHG
RBLHG-5HPND-XL

Specification LHG HP5 XL

The offered product uses 802.11a/n standards and 2x2 MIMO technology. The maximum theoretical throughput is 300 Mb/s. Application of another antenna resulted in slightly narrower main beam than in LHG 5, its width is 6.4°. The device is powered by passive PoE, with voltage from 10 - 28 V DC. A 24 V / 0.38 A power supply and PoE injector are included. The LHG XL can be used to establish point-to-point connections or as a client device in point-to-multipoint connections. If you want your wireless networks to work flawlessly, select the lhg xl hp5 (5ghz 1x rj45 100mbs) client device. We will be happy to help you choose your network equipment and provide technical support. In our shop we offer wireless routers, access points, media converters, cpe client devices, ip cameras, microtik ldf, microtik omnitik, microtik sxt, sfp modules, microtik hap ac, microtik wap, microtik groove, microtik disc lite5 and other network devices. Ask a question - we are at your disposal.
LIGHT HEAD GRID HIGH POWER XL

Specification

Features / filters

2.4 GHz
5 GHz
AC input voltage
Antenna gain level (max)
Antenna type
Built-in processor
DC-in jack
Depth
Ethernet LAN (RJ-45) ports
Ethernet LAN data rates
Flash memory
Frequency band
Harmonized System (HS) code
Height
High power
Internal
Internal memory
Maximum data transfer rate
Networking standards
Number of products included
Operating system installed
Operating temperature (T-T)
Package depth
Package height
Package weight
Package width
Placement
Power consumption (max)
Power over Ethernet (PoE)
Product colour
Receiver sensitivity
Transmitting power
Weight
Width

Specification

Model
RBLHG-5HPnD-XL
CPU frequency
600mhz cpu
RAM
64 MB
Flash memory size
16 MB Flash
Number of 10/100 Ethernet ports
1
Wireless network
5 GHz 802.11a/n, dual-chain
Wireless network chipset
AR9344
Wi-Fi frequency
5150 - 5875 MHz
Antenna gain
27 +/- 0.5 dBi
Antenna beam width
6,4°
Crossover polarisation
21 dBi
Isolation per port
18 dB
Front to back ratio
35 dB
VSWR
1.5:1
PoE input
Yes
Supported input voltage
10 V - 28 V (passive PoE)
Wind load
186N @ 205 km/h
Ambient temperature during operation
-40 to 70° C
Ambient humidity during operation
5 to 95% non-condensing
Shock resistance
ETSI300-019-1.4
ETSI
EN 302 326 DN2
Dimensions
Ø 550 x 245 mm; packaging 585 x 595 x 138 mm
Weight
The device: 945 g; Package: 2.99 kg
Max. energy consumption
7 W

FAQ

Pytanie: Application LHG HP5 XL
The device is ideal for creating PtP links or as a client device on very long distance links (up to 40km).
Pytanie: Power supply for Mikrotik RBLHG-5HPnD-XL
The device is powered via passive PoE from 10 - 28 V DC and operates in 802.11a/n standard using MIMO 2x2.
Pytanie: Which Microtik LHG device to choose?
RBLHG-5HPnD-XL is the strongest version of the popular radio client from Mikrotik. The device has a 28dBm radio and a large antenna with 27dBi gain. This allows to create links in difficult conditions or over very long distances.
