MikroTik LDF 5 | CPE | RBLDF-5nD, 5GHz, 1x RJ45 100Mb/s

0
1
2
3
4
5
6
MIKROTIK
KOD: RBLDF-5ND
EAN: 4752224003669

About product

MicroTik LDF 5

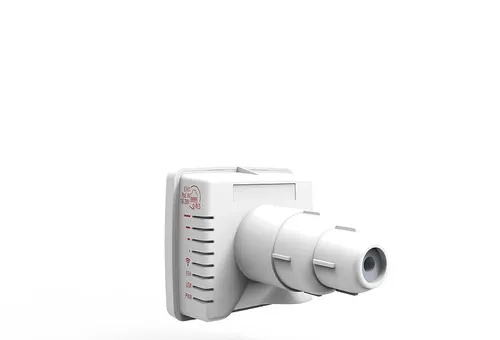

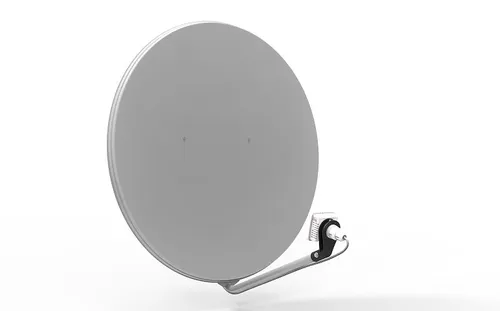

Mikrotik Routerboard RBLDF-5nD LDF (Lite dish feed) is an external wireless system with built-in antenna, designed for mounting on offset satellite dishes. The antenna will act as a reflector, strengthening the signal. It means that any available offset satellite antenna can be used to quickly implement efficient long-range wireless connections.
1

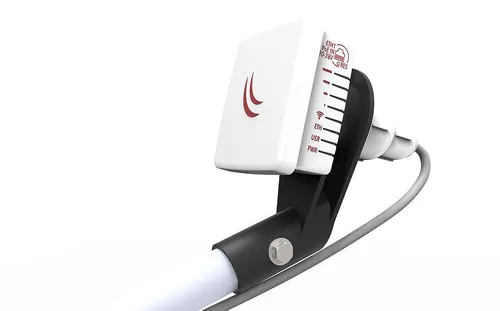

Universal offset holder

The offset handle is universal with a diameter of 40 mm and the LDF can easily be placed inside. Since the LDF itself is a tiny package, its transport and placement is simple and inexpensive. Using an antenna with a diameter of up to 100 cm, you can achieve antenna gain of up to 33 dBi. The device is factory equipped with Mikrotik RouterOS level 3 firmware and is ready to work.
2

The most important features:

  • 5 GHz band
  • RouterOS with Level 3 license
  • Gain of the built-in antenna - 9 dBi
  • Transmission power up to 25 dBm
  • Fast Ethernet port
  • Device for mounting on an offset (satellite) antenna

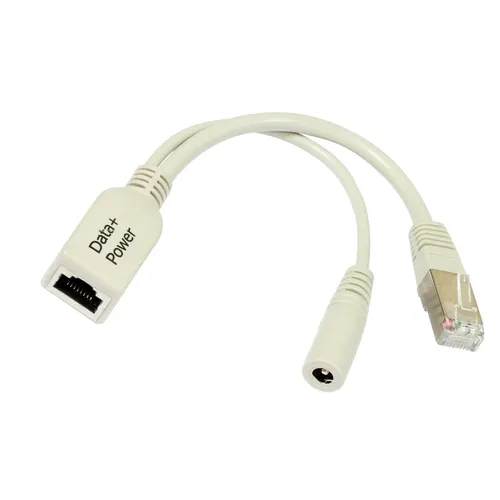

  • PoE power supply
4

Specification

Specification

Product code
RBLDF-5nD
Architecture
MIPSBE
CPU
AR9344
Number of processor cores
1x
Nominal processor frequency
600 MHz
Dimensions
84x84x115 mm
Licence level
3
Operating system
RouterOS
Size of RAM
64 MB
Storage size
16 MB
Type of storage
FLASH
Tested ambient temperature
From -40 ° C to 70 ° C
PoE in
Passive PoE
PoE at the input Voltage
10–30 V.
Number of DC inputs
1 (PoE-IN)
Maximum energy consumption
6 W.
5 GHz wireless transmission speed Max
300 Mbit/s
Number of 5 GHz wireless chains
2
5 GHz wireless standards
802.11a/n
dBi antenna gain for 5 GHz
9 dBi
5 GHz wireless model
AR9344
5 GHz wireless generation
Wi-Fi 4
Network interface
1x 10/100 Mb/s fast Ethernet port MDI/MDIX automatic crossover
Case law
" RED, FCC, IC, EAC, ROHS

FAQ

Pytanie: What is the PoE power supply for ?
PoE allows you to use a single cable for power and data transmission, saving you money on purchasing and dragging cables for network devices and VoiP phones.
Pytanie: What is a MicroTik RouterOS?
MikroTik RouterOS is the operating system of the router and software that allows the PC or Mikrotik RouterBoard to be a dedicated router.
