Huawei GICF | OLT Uplink Board | 2 x 1,25GE

KOD: HUAWEI 5680/5683 GICF BOARD
EAN: 5906168631009

About product

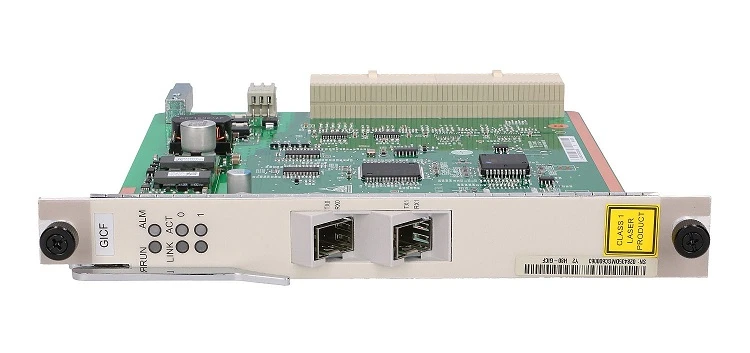

Huawei GICF

Huawei GICF is a 2-port card of GE uplink optical interface for Huawei Ma5683T, MA5680T, MA5608T OLT system. The card offers upstream or cascade optical ports, which are equipped with two single-mode 1310nm, 10km SFP by default.

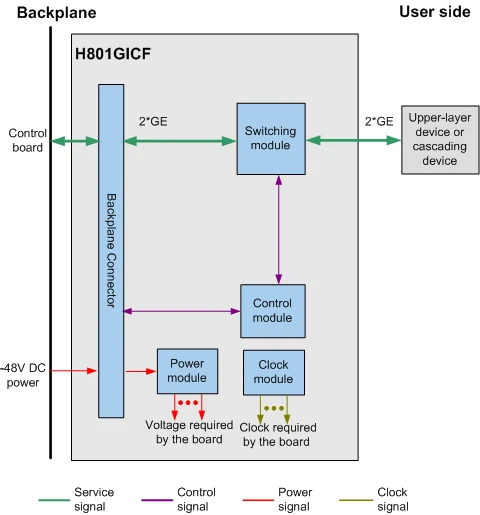

The basic principle of the H801GICF:

The control module loads the board software, controls the operation of the software and manages the entire card.
The conversion module supports transparent data transmission.
The power module supplies power to the other functional modules of the board.

Specification

Port

GICF

Plug-in module

Optical Module (SFP) Electric module (SFP)

Port speed

1.25 Gbit / s

Dimensions (mm)

25.40 (W) X 237.00 (D) X 197.20 (H)

Energy consumption

Static: 3.9 W Maximal: 3,9 W.

Maximum frame size

2052 bytes. When the jumbo frame function is enabled, up to 9216 bytes can be handled.

Working temperature

From -25 ° C to + 65 ° C

Relationship between GE optical/electrical modules and boards

GE single-channel bi-directional optical module GE single-channel bi-directional optical module GE CWDM single-channel bi-directional optical module GE Electric module
