Extralink SC/UPC | Pigtail | PVC, Single mode, 900um G.652D 2m

0
1
EXTRALINK
KOD: EX.10178
EAN: 5903148910178
Length: 2m
Pigtail / splitter connector: SC/UPC
Cable diameter: 0.9
Cable length: 2
Cable type: FTTH

About product

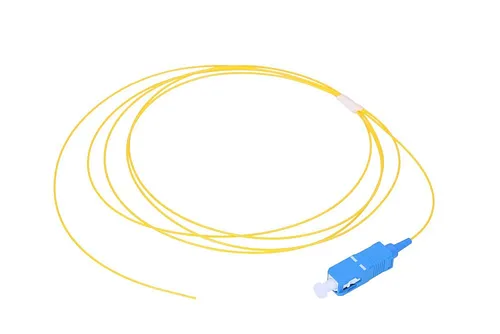

Pigtail SC/UPC SM 900UM G.652D 2M

Pigtail Extralink with SC/UPC connector is made on a single-mode G.652D fiber, which is dedicated for FTTx technology. This fiber is characterized by reduced bending radius, without increasing attenuation. This is a very important feature during the construction of FTTx networks due to the large number of changes of optical line direction and because of the small size of cabinets and distribution boxes. Pigtail is used mainly in client cable terminations in the customer's sockets and in end switchgear.
EXTRALINK Pigtail

Specification

Features / filters

Fiber standard
Length
Pigtail / splitter connector
Cable diameter
Cable length
Cable type
Connector 1
Connector 1 gender
Connector 2
Connector 2 gender
Connector material
Connector polish type
Fiber mode structure
Fibre optic type
Full duplex
Insertion loss
Operating temperature (T-T)
Package type
Plug and Play
Product colour
Quantity per pack
Return loss
Test protocol included

Specification

Minimum bending radius
10 mm
Random average IL attenuation
0.15 dB
Reflectance RL APC
>60 dB
Fibre strength
>9 N
Operating temperature
-40 ~ +85 °C
Fibre diameter
0.9mm
Coating
PVC
