Direct buried fiber optic cable 2F | DAC Z-XOTKTCD, single mode, 2J, G652D, 1,2kN, 5.3mm | Fiberhome
EOL
Recommended products
About product

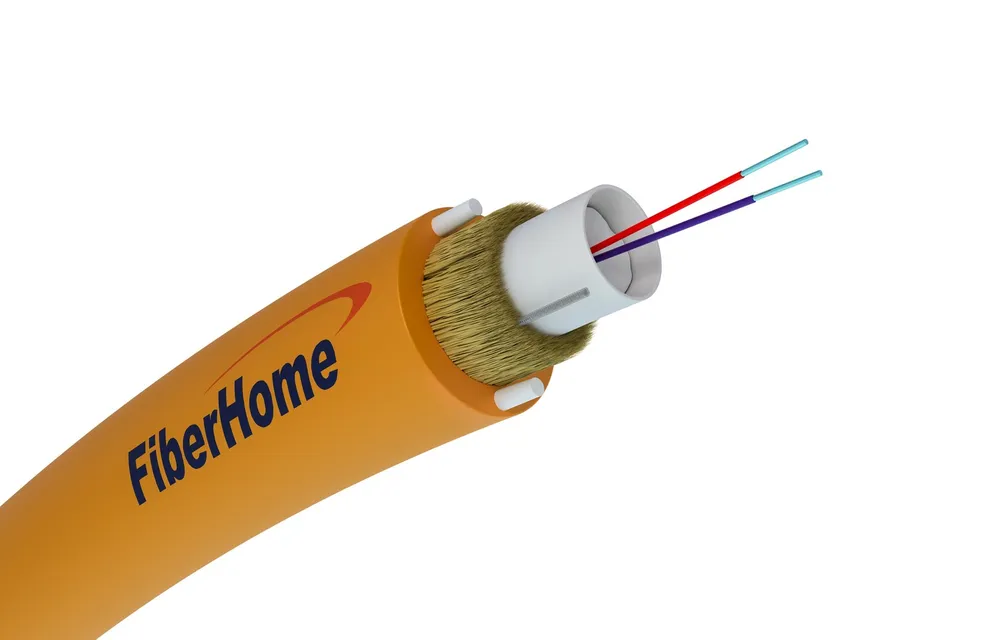

2F DAC Z-XOTKTCD fiber optic cable
The 2F DAC Z-XOTKTCD terrestrial fiber optic cable is a direct buried fiber optic cable. For its construction 2 fibers type G.652D are used which are placed in the central tube. Strengthening element, besides peripheral strength elements, are two FRP rods from aramid yarn embedded in outer jacket, which provide required cable tensile strength. The HDPE outer sheath protects the cable from the external environment.
Compared to ordinary aramid cables, it has thicker FRP rods and a thicker outer sheath.
Key features
- Fibre G.652.D
- Tensile strength 1,2 kN
- 1.2 mm thick HDPE outer shell
- Two 0,8 mm diameter FRP reinforcing rods
- Diameter 5.3 mm
Specification
Features / filters
Cabel for assembly
Fiber standard
Number of fibers
Cable diameter
Cable diameter
Cable length
Cable type
Cable weight
Connector 1
Connector 1 gender
Connector 2
Connector 2 gender
Fiber mode structure
Fibre optic type
Jacket material
Operating temperature (T-T)
Plug and Play
Product colour
Tensil strenght
Test protocol included
Specification
Cable type
Doziemny
Application
cable for direct burial in the ground
Number of cables on one reel
4 km
Number of tubes
1
Number of fibres per tube
2
Number of fillers
0
Diameter of tube
2.1 mm
Fibre type
G652D
Gel
thixotropic gel
Main strengthening elements
FRP rod
Diameter of reinforcing bar
0.8 mm
Additional reinforcement
It does not have
Outer sheath material
HDPE
External shell colour
orange
Thickness of the outer coating
1,2 mm
Ripcords
1
Cable diameter
~ 5.3 mm (± 5%)
Cable weight
~ 24 kg/km (± 5%)
Pulling power
1200 N
Bending radius
during installation: 20 x diameter
after installation: 10 x diameter
Permissible operating temperature
- 30 to + 70 degrees C
Fibre colour standard
TIA-598-C
